4.6 Display/Edit Profiles window

The Display/Edit Profiles window is used to display the profile information in effect for JP1/Base, and to display or edit the configuration file or definition files stored on the IM Configuration Management server.

The Display/Edit Profiles window has two pages: Valid Configuration Information and Configuration File. Each page can be opened by choosing the corresponding button. For details about the Valid Configuration Information page, see 4.6.1 Valid Configuration Information page. For details about the Configuration File page, see 4.6.2 Configuration File page.

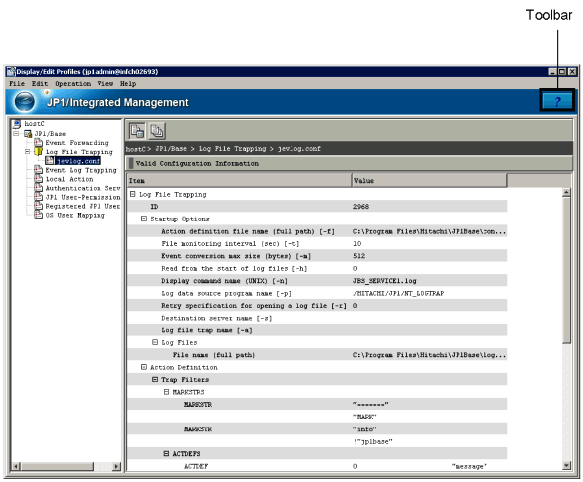

The following figure shows an example of the Display/Edit Profiles window.

Figure 4-16 Display/Edit Profiles window

Toolbar

(Help button)

Displays Help.

Valid Configuration Information button

Clicking this button opens the Valid Configuration Information page. The Valid Configuration Information page displays the settings information in effect for JP1/Base.

The settings information for the following functions is displayed:

• Event forwarding
• Log file trapping
• Event log trapping
• Local action
• User management, including the authentication server, user permissions, user registration, and user mapping

Configuration File button

Clicking this button opens the Configuration File page. The Configuration File page is used to display or edit the configuration file or definition files saved on the IM Configuration Management server.

The following configuration file and definition files are displayed and can be edited:

• Transfer configuration file
• Log file-trap action definition file
• Event log-trap action definition file
• Local action execution definition file

The following table describes the menu items available from the menu bar of the Display/Edit Profiles window.

Table 4-16 Menu items available from the menu bar of the Display/Edit Profiles window

Menu	Command	Description
File	Close	Closes the Display/Edit Profiles window.
Edit	Exclusive Editing Settings	Edits the configuration file in exclusive mode.
	Release Exclusive Editing	Releases exclusive editing of the configuration file.
	Save Configuration File	Saves the configuration file to the IM Configuration Management server.
	Copy	Copies the contents of the configuration file. The user does not need to acquire exclusive editing rights before executing this command.
	Cut	Copies the contents of the configuration file and deletes the selected contents. The user must acquire exclusive editing rights before executing this command.
	Paste	Pastes the copied contents. The user must acquire exclusive editing rights before executing this command.
Operation	Collect Profiles	Acquires the profile of the specified node from the host of an agent.
	Save/Apply Profiles	Saves the contents of the configuration file residing on the IM Configuration Management server to the agent and applies the contents.
	Save on the Server	Saves the configuration file to the IM Configuration Management server.
	Apply by Reloading	Applies the contents of the configuration file residing on the IM Configuration Management server to the agent and reloads the contents.
	Rebuild Profile Tree	Acquires the profile list again from the agent, and re-displays the list displayed in the tree display area.
View	Word Wrap	When the Valid Configuration Information area is displayed in the Display/Edit Profiles window, specifies whether to display all setting items in the window.
Help	Help	Displays Help.
	Help Contents	Displays the Help contents.
	Version Information	Displays the version information of IM Configuration Management - View.

When the profile list is collected from the agent, if the service corresponding to the profile information is not running, the profile information displayed in the tree display area becomes unavailable, and cannot be selected. The log file trapping function displays only currently running profiles.

For example, if an event service has not started, Event Forwarding Information in the profile list is unavailable and cannot be selected.

To select an unavailable profile, the user must start the corresponding service on the agent, choose the Operation menu and then choose Rebuild Profile Tree. If the log file trapping function on the agent has been started, Rebuild Profile Tree can be executed.

Organization of this section

4.6.1 Valid Configuration Information page

4.6.2 Configuration File page
