Job Management Partner 1/Integrated Management - Manager GUI Reference

4.5 Edit IM Configuration window

The Edit IM Configuration window is used to edit the system hierarchy managed by IM Configuration Management. The Edit IM Configuration window has a tree display area, a Lower Host Information area, and a Hosts area. The tree display area displays the system hierarchy in a tree structure. The Lower Host Information area displays the hosts positioned lower than the host selected in the tree display area. The Host List area lists the hosts that can be added to the system hierarchy.

The following figure shows an example of the Edit IM Configuration window.

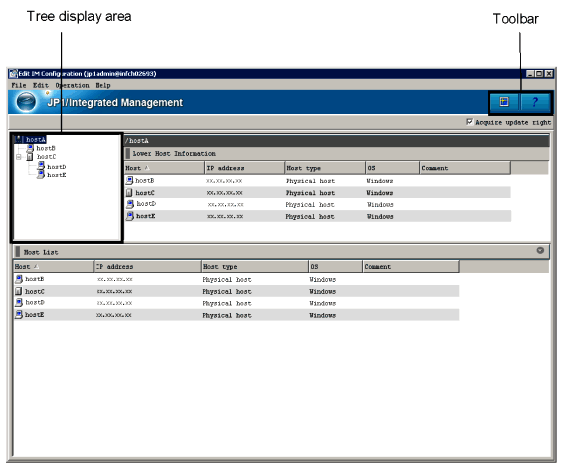

Figure 4-15 Edit IM Configuration window

Toolbar

Provides buttons for operations that are frequently used in the Edit IM Configuration window.

(Refresh)

Refreshes the information displayed in the tree display area.

(Help button)

Displays Help.

Acquire update right check box

When the user selects the Acquire update right check box, the user can edit the system hierarchy. When a user has acquired the update permission and edits the system hierarchy, other users are unable to edit the system hierarchy.

Tree display area

Displays the system hierarchy in a tree structure. The user selects a host displayed in the tree display area in the Edit IM Configuration window, and then edits the system hierarchy. Dragging a host selected in the tree display area, and dropping it in the Host List area deletes the host from the system hierarchy. The following table lists the items that are displayed in the tree display area.

If the user selects a host in the tree display area and right-clicks it, the user can cut, paste, add, delete, and replace the host, and set and release the base manager.

Table 4-13 Items displayed in the tree display area (Edit IM Configuration window)

Item Description

Plus sign (+) icon A plus sign (+) icon is displayed beside the name of a manager that has lower hosts.
If the plus sign (+) icon is clicked, the manager is expanded to show the lower hosts.

Minus sign (-) icon A minus sign (-) icon is displayed beside the name of a manager that has lower hosts.
If the minus sign (-) icon is clicked, the expanded manager is collapsed to hide the lower hosts.

Indicates an integrated manager. If an integrated manager has lower hosts, a plus sign (+) icon or a minus sign (-) icon is displayed beside the integrated manager.

Indicates a relay manager. If a relay manager has lower hosts, a plus sign (+) icon or a minus sign (-) icon is displayed beside the relay manager.

Indicates a base manger. If a base manager has lower hosts, a plus sign (+) icon or a minus sign (-) icon is displayed beside the base manager.

Indicates an agent.

Lower Host Information

The items to be displayed in the Lower Host Information area, such as Host, IP address, and Host type, can be selected from the menu displayed when the user right-clicks an item name.

The hosts positioned lower than the item selected in the tree display area are listed in this area. The following table explains the items displayed in the Lower Host Information area.

Table 4-14 Items displayed in the Lower Host Information area

Item Displayed information

Host^{#1, #2} The name of a host.
Example: HostA

IP address^#1 The IP address.
Example: 10.208.40.40

Host name list A list of hosts and their alias names.
Example: HostB, HostC

Actual host name The name of the host actually specified.
Example: HostA

Host type^#1 One of the following four host types:

Physical host

Virtual host

Logical host

Unknown

Active host^#3 The name of the physical host that is the active logical host.
Example: HostA

Standby host^#3 The name of the physical host that is the standby logical host.
Example: HostA

VMM host^#4 The name of the host on which VMM is running.
Example: HostA

OS^#1 The name of the OS running on the physical host.
Example: Windows

Collection status One of the following three statuses, which is the status following the host information collection when the managed was connected to JP1/Base:

Not collected

Collected

Collection failed

Collection date/time The date and time that the host information was last collected.
Example: 2008/01/14 12:34:14

Configuration application date/time The date and time of an addition to or deletion from the system hierarchy.
Example: 2008/01/14 12:34:14

Comment^#1 A comment.
Example: HQ server

#1: This item is displayed by default.

#2: This item cannot be hidden.

#3: This item is displayed only if the host type is Logical host.

#4: This item is displayed only if the host type is Virtual host.

Display items

The user can show or hide a display item in the Lower Host Information area by right-clicking the item and selecting or deselecting the item on the menu. Selection of a display item on the menu displays it (a check mark appears). Deselection of a display item on the menu hides it (the check mark disappears). A display item whose check mark is gray cannot be deselected.

Host List

Only the hosts that can be added to the system hierarchy are listed in the Hosts area. Hosts already edited and set in the system hierarchy, and hosts whose actual host name is the same as the name of a host in the system hierarchy are not listed.

The following table describes the menu items available from the menu bar of the Edit IM Configuration window.

Table 4-15 Menu items in the Edit IM Configuration window

Menu Command Description

File New Creates new information about the system hierarchy.

Open IM Configuration Loads the configuration information of the JP1/IM system stored in a file.

Save IM Configuration Saves the configuration information of the JP1/IM system that is being edited to a file.

Acquire IM Configuration from Server Acquires the configuration information of the JP1/IM system from the server.

Close Closes the Edit IM Configuration window.

Edit Cut Copies the node (host) selected in the tree display area.

Paste Pastes the copied node (host) into another tree structure.

Add Host Adds a host to the node selected in the tree display area. The Select Hosts window opens.

Delete Host Deletes the node (host) selected in the tree display area.

Exchange Hosts Displays the Host Exchange window to enable the node (host) selected in the tree display area to be replaced.

Base Manager Settings Sets a host as the base manager.

Release Base Manager Settings Releases the base manager settings.

Undo Cancels the immediately preceding operation.

Redo Cancels the operation performed by executing the Undo command.

Operation Apply IM Configuration Applies the items displayed in the Edit IM Configuration window to the configuration information of the JP1/IM system.

Update Host Information Refreshes the information in the Edit IM Configuration window.

Help Help Displays Help.

Help Contents Displays the Help contents.

About JP1/IM - View Displays the version information of IM Configuration Management - View.
