Job Management Partner 1/Integrated Management - Manager GUI Reference
The Valid Configuration Information page of the Display/Edit Profiles window is used to display the profile information in effect for JP1/Base. The Valid Configuration Information page has a tree display area and a node information display area. The tree display area displays the profile information in effect for JP1/Base in a tree structure. The node information display area displays detailed information about the nodes displayed in the tree structure.
The following figure shows an example of the Valid Configuration Information page.

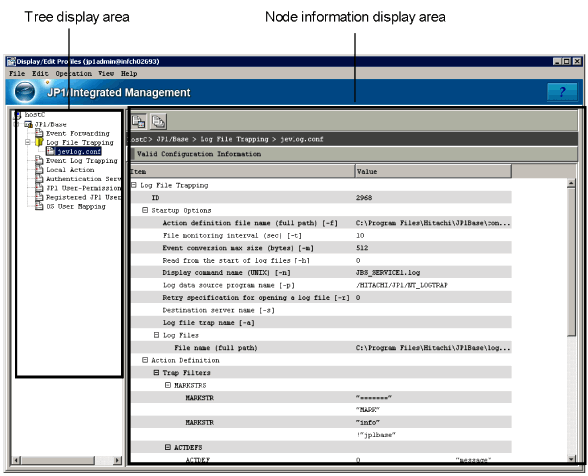

Figure 4-17 Valid Configuration Information page
- Tree display area
- Displays the profile information in effect for JP1/Base in a tree structure. The following describes the items displayed in the tree display area.
Table 4-17 Items displayed in the tree display area (Valid Configuration Information page)
Item Description Plus sign (+) icon A plus sign (+) icon is displayed when there are files under the setting name.
If the plus sign (+) icon is clicked, the setting name is expanded to show the files.Minus sign (-) icon A minus sign (-) icon is displayed when there are files under the setting name.
If the minus sign (-) icon is clicked, the expanded setting name is collapsed to hide the files.![[Figure]](FIGURE/CI016600.GIF)
Indicates a host name. ![[Figure]](FIGURE/CI017500.GIF)
Indicates a product name. or
Indicates a setting name. If there are files under the setting name,
If there are no files,is displayed.
Indicates a file name.
- Node information display area
- The node information display area on the Valid Configuration Information page displays valid configuration information about the display item selected in the tree display area.
The following describes the items displayed for each function selected in the tree display area.
- Organization of this subsection
- (1) Event Forwarding
- (2) Log File Trapping
- (3) Event Log Trapping
- (4) Local Action
- (5) Authentication Server
- (6) JP1 User-Permissions Level
- (7) Registered JP1 Users
- (8) OS User Mapping
(1) Event Forwarding
The following table describes the items displayed in the Valid Configuration Information area when Event Forwarding is selected.
Table 4-18 Items displayed in the Valid Configuration Information area (Event Forwarding)
Item name Level 1 Level 2 Level 3 Level 4 Level 5 Event Forwarding Event Server Index Event server -- -- Forwarding Settings File Forwarding filters Filter Destination (host)# Conditions#
- Legend:
- --: Not applicable
- #
- When the to-upper format is used in the forwarding settings file (forward) and no upper-level host exists, the transfer conditions are disabled and not displayed because there is no destination host.
(2) Log File Trapping
The following figure shows the items displayed in the Valid Configuration Information area when the profile information for the log file trap is selected.
Table 4-19 Items displayed in the Valid Configuration Information area (Log File Trapping)
Item name Level 1 Level 2 Level 3 Level 4 Level 5 Log File Trapping ID -- -- -- Startup options Action definition file name (full path) [-f] -- -- File monitoring interval (sec) [-t] -- -- Event conversion max size (bytes) [-m] -- -- Read from the start of log files [-h] -- -- Display command name (UNIX) [-n] -- -- Log data source program name [-p] -- -- Retry specification for opening a log file [-r] -- -- Destination server name [-s] -- -- Log file trap name [-a] -- -- Log files File name (full path) -- Action Definition Trap filters MARKSTRS MARKSTR ACTDEFS ACTDEF File type -- -- Record type -- -- Number of header lines -- -- Header size (bytes) -- -- Number of retries -- -- Retry interval (sec) -- -- Number of held JP1 events -- -- Held-events pass specification -- -- Number of retries for opening a log file -- -- Retry interval for opening a log file (sec) -- -- Number of retries for reading a log file -- --
- Legend:
- --: Not applicable
(3) Event Log Trapping
The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the event log trap is selected.
Table 4-20 Items displayed in the Valid Configuration Information area (Event Log Trapping)
Item name Level 1 Level 2 Level 3 Level 4 Level 5 Event Log Trapping Action Definition Trap filters Filter Log type Conditions Destination event server name -- Number of retries -- Retry interval (sec) -- Monitoring interval (sec) -- Matching level -- Filter check level -- JP1 event notifications -- JP1 event extended-attribute options --
- Legend:
- --: Not applicable
(4) Local Action
The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the local action is selected.
Table 4-21 Items displayed in the Valid Configuration Information area (Local Action)
Item name Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Local Action Execution Definition Common Block JP1 user name -- -- Event ID issuing specification -- -- Control option string -- -- Action Blocks Action Block Action name -- Event filter conditions Conditions Command -- Event ID issuing specification -- Suppression time -- JP1 user name -- Environment-variable file name -- Command option --
- Legend:
- --: Not applicable
(5) Authentication Server
The following are the items displayed in the Valid Configuration Information area when the profile information of the authentication server is selected:
- Primary server name
- Blocked status of the primary server
- Secondary server
- Blocked status of the secondary server
(6) JP1 User-Permissions Level
The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the JP1 user-permission level is selected.
Table 4-22 Items displayed in the Valid Configuration Information area (JP1 User-Permissions Level)
Item name Level 1 Level 2 Level 3 Level 4 Level 5 JP1 User-Permission Level User permissions level Permissions Level JP1 user name -- Authority level for JP1 resource groups Resource groups Permissions levels
- Legend:
- --: Not applicable
(7) Registered JP1 Users
The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the JP1 user registration is selected.
Table 4-23 Items displayed in the Valid Configuration Information area (Registered JP1 Users)
Item name Level 1 Level 2 Level 3 Registered JP1 Users JP1 Users User name
(8) OS User Mapping
The following are the items displayed in the Valid Configuration Information area when the profile information of the OS user mapping is selected:
- JP1 user name
- Server host name
- OS user name
