4.6.2 Configuration File page

The Configuration File page in the Display/Edit Profiles window is used to display the configuration file or definition files saved on an IM Configuration Management server. If the user has exclusive editing rights, the user can edit the configuration file or definition files. The user acquires exclusive editing rights by clicking the JP1 product name (JP1/Base) in the tree display area of the Display/Edit Profiles window, choosing the Edit menu, and then choosing Exclusive Editing Settings.

The Configuration File page has a tree display area and a node information display area. The tree display area displays the configuration files and definition files managed by the IM Configuration Management server in a tree structure. The node information display area displays detailed information about the configuration files and definition files displayed in the tree structure.

The following figure shows an example of the Configuration File page.

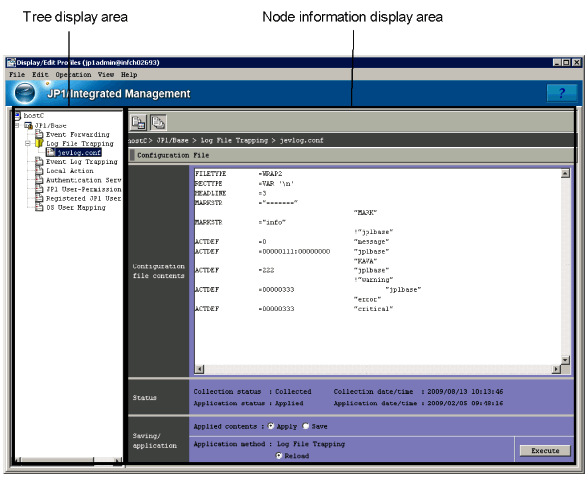

Figure 4-18 Configuration File page

Tree display area

Displays the configuration files and definition files managed by the IM Configuration Management server in a tree structure. The following table describes the items displayed in the tree display area.

Table 4-24 Items displayed in the tree display area (Configuration File page)

Item	Description
Plus sign (+) icon	A plus sign (+) icon is displayed when there are files under the setting name. If the plus sign (+) icon is clicked, the setting name is expanded to show the files.
Minus sign (-) icon	A minus sign (-) icon is displayed when there are files under the setting name. If the minus sign (-) icon is clicked, the expanded setting name is collapsed to hide the files.
	Indicates a host name.
	Indicates a product name.
or	Indicates a setting name. If there are files under the setting name, is displayed with a plus sign (+) or a minus sign (-) icon on the left. If there are no files, is displayed.
	Indicates a file name.

Node information display area

The Configuration File area corresponding to the configuration file or definition file selected in the tree display area appears in the node information display area on the Configuration File page.

The following describes the items displayed in the Configuration File area.

Table 4-25 Items displayed in the Configuration File area

Item	Description
Configuration file contents	Displays information about the configuration file selected in the tree display area. For the items displayed in Configuration file contents, see 4.6.1 Valid Configuration Information page.
Status	Displays Collection status, Collection date/time, Application status, and Application date/time for the configuration file selected in the tree display area. Collection status Displays one of the following collection statuses for the configuration file: - Not collected - Collected - Collection failed Collection date/time Displays the time# on the manager that information was collected in the JP1/IM - View locale. Collection date/time is updated when any of the following occurs: the profiles are collected in a batch operation (Batch Collect Profiles), the configuration file is collected, the configuration file is applied, or the profiles are applied in a batch operation (Batch Reflect Profiles). Application status Displays one of the following application statuses for the configuration file: - Not applied - Reflected - Reflection failed - Saved on the server Application date/time Displays the time on the agent that information was applied correctly in the IM-View locale. Application date/time is updated when the profiles are applied in a batch operation (Batch Reflect Profiles) or the configuration file is applied.
Saving/application	Applied contents Apply Applies the settings to the system managed by IM Configuration Management. Save Saves the settings to the server on which IM Configuration Management is running. Application method Reload is chosen as the application method.

#

Indicates the time on the manager on which IM Configuration Management is running.

The following table describes whether the items in each configuration file or definition file can be edited, and the operation by which the edited items are applied.

Table 4-26 Items for each configuration file

Configuration file	Item	Editing	Applied by
Event forwarding information	Configuration file update date/time	N	--
	Configuration file save location (directory name)	N	--
	Destination (Host)	Y	Reload
	Conditions
Log file-trap action definition file	Log file trap ID	N	--
	Action definition file name	N	--
	File monitoring interval
	Event conversion maximum size
	Read from the start of log files
	Display command names
	Log output source program
	Retry specification for opening a log file
	Destination server name
	Log file trap name
	Monitoring target log file name
	Configuration file update date/time	N	--
	Number of retries	N	--
	Retry interval
	Number of held JP1 events
	Held-events pass specification
	Number of retries for opening a log file
	Retry interval for opening a log file
	Number of retries for reading a log file
	File type
	Record type
	Number of header lines
	Header size
	MARKSTRS definition string	Y	Reload
	ACTDEFS definition string
Event log-trap action definition file	Configuration file update date/time	N	--
	Destination event server name	N	--
	Number of retries	Y	Reload
	Retry interval
	Monitoring interval
	Matching level
	Filter check level
	Log type
	Conditions
	JP1 event extended-attribute options
Local action execution definition file	Configuration file update date/time	N	--
	JP1 user name	Y	Reload
	Environment-variable file name
	Event ID issuing specification
	Control options string
	Action name
	Event filter conditions
	Suppression time
	Environment-variable file name
	Command
	Event ID issuing specification

Legend:

Y: Can be edited.

N: Cannot be edited.

--: Cannot be specified.
