5.8.1 Preparing to display combination reports

The following preparations are required before you can display a combination report:

For details on how to create reports to display in a combination report, see 5.2 Process flow for creating a report. For details on how to register reports with a combination bookmark, see 5.6.1 Creating bookmarks. This subsection describes how to register a baseline in a combination bookmark, and how to set the display format of a combination report.

Organization of this subsection
(1) Registering a baseline in a combination bookmark
(2) Setting the display format of a combination report

(1) Registering a baseline in a combination bookmark

To register a baseline in a combination bookmark:

  1. Display the report window for registering a baseline in a combination bookmark in the window of PFM - Web Console.
    For details on how to display the report window, see 5.7.1 Displaying reports.

  2. Select the Baseline in the report window.
    The Baseline window appears in a new window.

  3. Select a combination bookmark from the Bookmarks tree, and enter the name of the baseline in Specify the baseline name.

    Specify the baseline name
    Enter the name using no more than 64 characters.
    The following figure shows an example of the Baseline window.

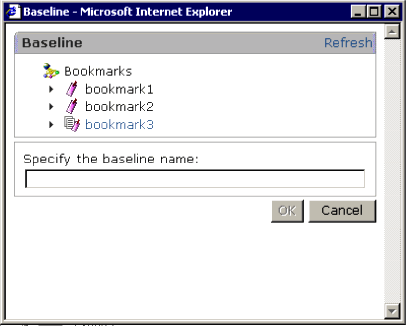

    Figure 5-38 Baseline window

    [Figure]

  4. Click the OK button.
    The baseline is registered in the combination bookmark.

(2) Setting the display format of a combination report

To set the display format of a combination report, edit the display conditions for combination bookmarks:

  1. From the monitoring console browser, log on to PFM - Web Console.
    The main window appears.

  2. In the navigation frame of the main window, choose the Bookmarks tab.
    The Bookmarks window appears.

  3. Select the combination bookmark you created from the Bookmark tree of the navigation frame.
    The selected combination bookmark is marked with a checkmark.

  4. From the method frame, choose the Edit method.
    In the information frame, the Edit window appears.

  5. Edit the display conditions as required.
    You can group the reports of a combination report in the Series group settings area of the Edit window, as a series group. You can set and modify the following settings for each series group:
    • Graph type
    • Series group name
    • Maximum and minimum values of the Y-axis
    • Y-axis display position
    The following figure shows an example of the Edit window.

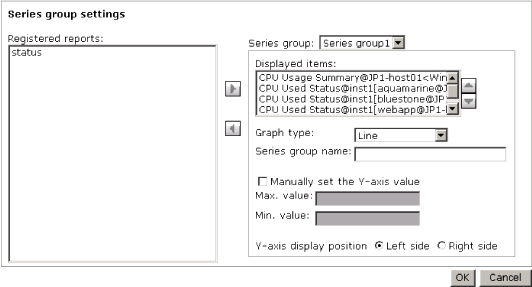

    Figure 5-39 Edit window

    [Figure]

  6. Click the OK button.
    The series group settings take effect as the display settings for the combination report.
