Combination reports are a feature that allows you to combine multiple historical reports in the same graph. Although normal reports allow you to display reports from multiple agents in a single graph, they must refer to the same records in a historical report. By using a combination report, you can display multiple historical reports in the same graph regardless of the agent used or the type of record in the report. You can also compare one report with another by displaying it as reference data (a baseline) in the graph.
The following table describes whether or not a combination report can be displayed, for each combination of graph type and graph options.
Table 5-4 Whether a combination report can be displayed
Graph typeGraph options Normal Show 3D graph Show gridlines Column graph Yes Yes Yes Stacked column graph Yes Yes Yes Bar graph No No No Stacked bar graph No No No Pie graph No No No Line graph Yes No# Yes Area graph Yes No# Yes Stacked area graph Yes No# Yes
- Legend:
- Yes: Can be displayed.
- No: Cannot be displayed.
- #
- Can be set, but the setting is ignored.
The following figures show examples of displaying a combination report.

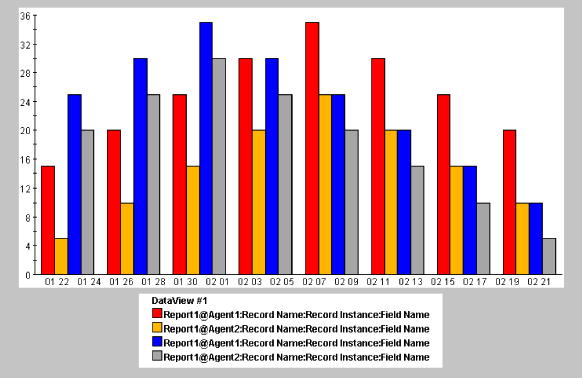

Figure 5-33 Example of displaying a combination report (column graph)

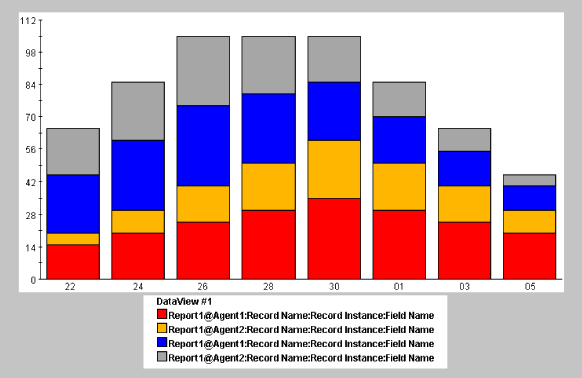

Figure 5-34 Example of displaying a combination report (stacked column graph)

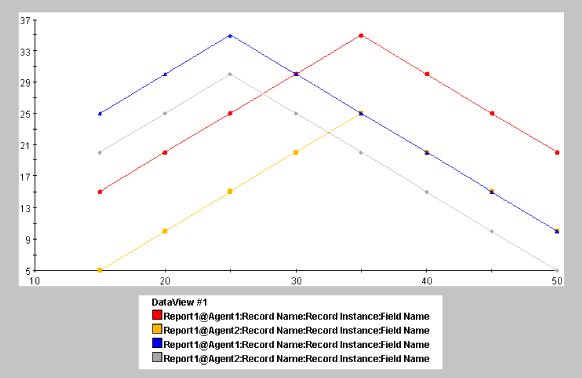

Figure 5-35 Example of displaying a combination report (line graph)

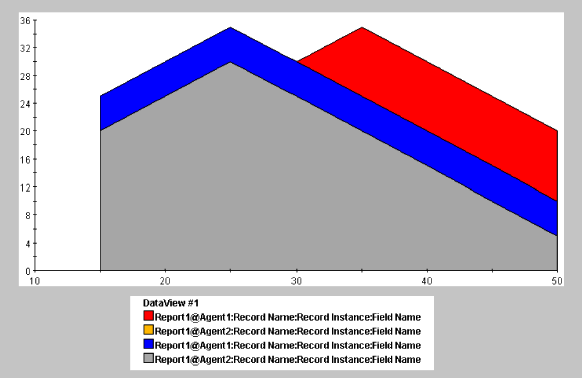

Figure 5-36 Example of displaying a combination report (area graph)

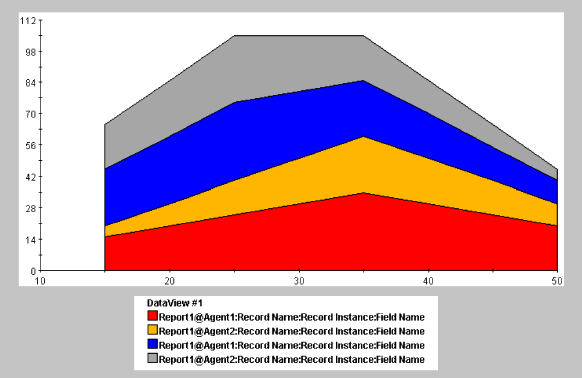

Figure 5-37 Example of displaying a combination report (stacked area graph)
This section describes the following operations regarding combination reports:
- Preparing to display a combination report
- Displaying a combination report
- Checking the properties (combination bookmark definition) of a combination report
- Applying combination reports to real situations
- Organization of this section
- 5.8.1 Preparing to display combination reports
- 5.8.2 Displaying combination reports
- 5.8.3 Checking the properties (definitions) of combination bookmarks
- 5.8.4 Examples of using combination reports in real-world situations
