Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

10.3 Evaluating the status of security measures on clients

The status of security measures taken on clients can be evaluated on the basis of points awarded. The points used for evaluation are called evaluation points.

The results of evaluation can be retrieved for each group or user using a window, and can be output to a CSV file. By using points to represent the status of security measures on clients, groups or users without security measures taken can be determined at a glance. This feature can be used by an Asset Information Manager administrator, CSC administrator, or CSC user.

The evaluation point score of a client is obtained by multiplying the security level factor for each judgment item.

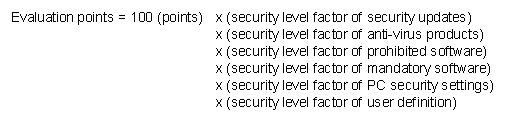

The following shows the formula for the evaluation point score.

Note

The fractional part is rounded.

Security level factors are used for all judgment items. The following table lists the security level factors for the judgment items.

Table 10-2 Security level factors for judgment items

No.	Security level for a judgment item	Security level factor
1	Safe	1
2	Caution	0.75
3	Warning	0.5
4	Danger	0.25
5	Unknown	1
6	Not applicable	1

Note

No evaluation points are awarded if one of the following conditions is satisfied:

• Not yet judged is displayed for the security level of all the judgment items.
• Not applicable or Unknown is displayed for the security level of all the judgment items.
• No judgment has been performed since JP1/CSC - Manager was upgraded.

The following gives an example of rating of the security measures on a client.

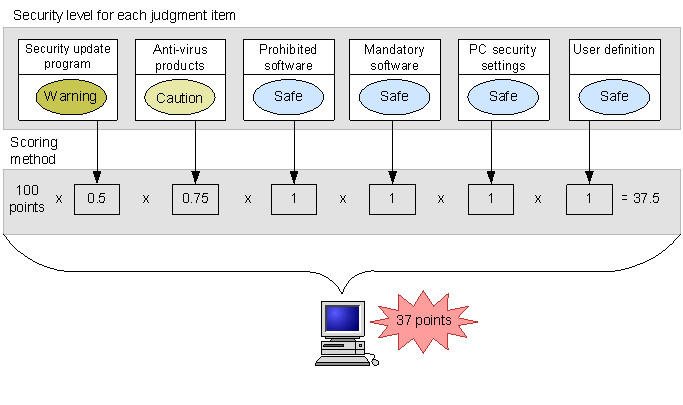

Figure 10-3 Example of rating of the security measures on a client

Organization of this section

10.3.1 Searching for the evaluation results of the status of security measures

10.3.2 Outputting results of estimation to a CSV file
