10.3.2 Outputting results of estimation to a CSV file

Retrieved evaluation results for the status of security measures taken on clients can be saved and viewed as a CSV file.

Use the Evaluation Condition Input window to output CSV files.

To specify search conditions and output the evaluation results to a CSV file:

  1. From the job menu of the AIM initial window, choose Client Security Management and then Security Counter-Measure Evaluation.
    The Evaluation Condition Input window appears.

    Figure 10-7 Evaluation Condition Input window

    [Figure]

  2. Specify the search conditions.
    Specify a search condition for each item. For details on specifying items, see 10.3.1 Searching for the evaluation results of the status of security measures.

  3. Click the CSV button.
    The File Download dialog box appears.
    Skip to step 5 if you are saving the file. Note that for IE version 5.5 or earlier, the Open button and Save button are displayed as radio buttons.

  4. Click the Open button.
    The search results are displayed in the CSV Output window. The items displayed vary depending on what is specified for Totals by during the search.

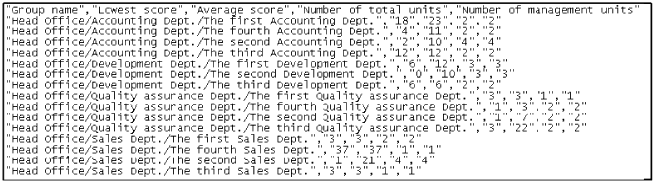

    Figure 10-8 CSV Output window when Group is specified for Totals by

    [Figure]

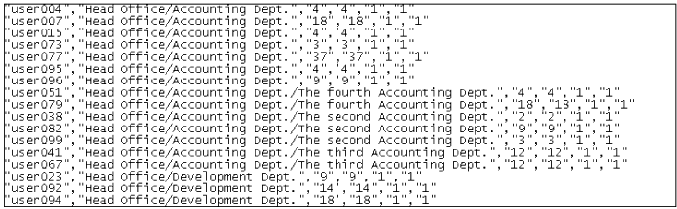

    Figure 10-9 CSV Output window when User is specified for Totals by

    [Figure]

    The following table describes the contents of the search results displayed in the CSV Output window.

    Table 10-6 Contents of the search results displayed in the CSV Output window

    No. Item Contents
    1 User name The name of the user. This item is output only when User is specified for Totals by.
    2 Group name The group to which the user belongs
    3 Lowest score The lowest evaluation point score of a PC for the status of security measures among PCs used in the group or by the user
    4 Average score The average score for the status of security measures taken for the group or user
    5 Number of total units The number of PCs subject to calculation of the lowest and average scores.
    This is the number of management units, excluding PCs for which the evaluation points are displayed as -#.
    6 Number of management units The number of PCs to be managed, that is, PCs for which Valid is displayed for Security management. This also includes PCs for which evaluation points are displayed as -#.

  5. To save the search results, click the Save button in the File Download dialog box.
    The Save As dialog box is displayed.

  6. For File name in the Save As dialog box, enter a file name and click the Save button.
    Change the file name. Note that a string (consisting of alphanumeric characters and symbols) to identify the file is set by default for File name in the Save As dialog box. The search results are saved to a file in CSV format.
