Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

10.3.1 Searching for the evaluation results of the status of security measures

Evaluation conditions can be specified to search for the results of the evaluation of security measures taken on clients. The search results display the score of the client that has the lowest evaluation point score, the average score for each group or user, and the number of clients evaluated.

Use the Evaluation Condition Input window to search for evaluation results.

To specify evaluation conditions to be used to search for evaluation results:

From the job menu of the AIM initial window, choose Client Security Management and then Security Counter-Measure Evaluation.
The Evaluation Condition Input window appears.

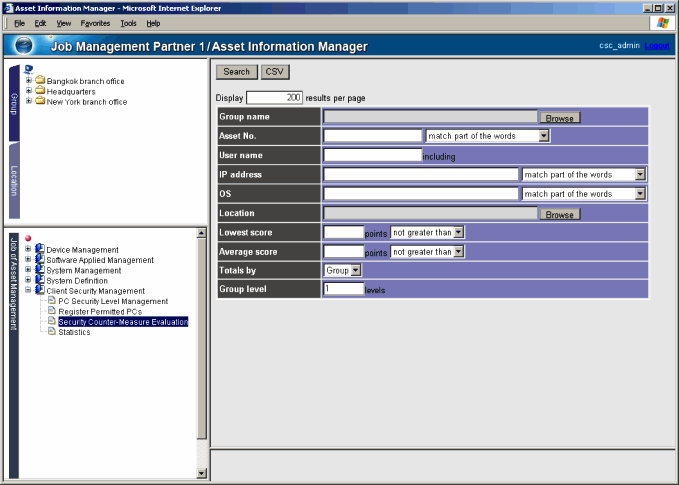

Figure 10-4 Evaluation Condition Input window

In the Evaluation Condition Input window, specify the search conditions.
Specify the search conditions in the Evaluation Condition Input window. A search is performed using an AND condition for the specified items.
The following table describes the specifications for each item.

Table 10-3 Specified contents for each item in the Evaluation Condition Input window

No. Search condition item Specification method Specifiable search options Default search option

1 Group name^#1 Click the Browse button and specify the group. None None

2 Asset No. Enter a unique number for user management, using 60 or fewer bytes of alphanumeric characters. Select one of the following from the pull-down menu:

match all the words

match part of the words

match beginning of the words

match end of the words

match part of the words

3 User name Enter the name of the PC user, using 255 or fewer bytes. None None

4 IP address Enter the IP address of the PC, using 15 or fewer bytes of alphanumeric characters. Select one of the following from the pull-down menu:

match all the words

match part of the words

match beginning of the words

match end of the words

match part of the words

5 OS Enter the name of the OS, using a string of 200 or fewer bytes. Select one of the following from the pull-down menu:

match all the words

match part of the words

match beginning of the words

match end of the words

match part of the words

6 Location^#2 Click the Browse button and specify the location. None None

7 Lowest score Enter a number from 0 to 100 Select one of the following from the pull-down menu:
not greater than, not less than, or equal not greater than

8 Average score Enter a number from 0 to 100. Select one of the following from the pull-down menu:

not greater than

not less than,

equal

not greater than

9 Totals by Select one of the following from the pull-down menu:

User

Group

None None

10 Group level^#3 Specify the level of the groups to be displayed in the search result. Enter a number from 0 to 256. This item is disabled when User is specified for Totals by. None None

Legend:

None: No search option is specified.

#1

Click the Browse button for the group to display the Browse Groups dialog box. From the tree view, select the group you would like to specify, and click the OK button. The selected group is specified.

#2

Click the Browse button for the location to display the Browse Locations dialog box. From the tree view, select the location you would like to specify, and click the OK button. The selected location is specified.

#3

Specify the level of groups under the group specified for Group name in item 1 (level 0). For example, if Sales Dept. and Accounting Dept. exist under Head Office and you want to display Head Office/Sales Dept. and Head Office/Accounting Dept. as the search results, specify Head Office for Group name and specify 1 for Group level.

Specify Display, and then click the Search button.
Specify the number of results to display in the window, and perform the search. The Evaluation Result List window appears, in which you can check the search results. The displayed items vary depending on whether Group or User is specified for Totals by. If an error message appears, take action according to 17.4.4 Error message in the Evaluation Result List window.

Reference note

Using the Customize Jobs window of AIM, you can customize the contents displayed in the Evaluation Result List window. The items in the Evaluation Result List window can be set to be shown or hidden, and the display order of each item can be changed. For details about the Customize Jobs window, see the manual Job Management Partner 1/Asset Information Manager Planning and Setup Guide.

Note that User name will not be displayed in the Evaluation Result List window if Group is specified for Totals by.

Organization of this subsection

(1) Evaluation results for each group

(2) Evaluation results for each user

No.	Search condition item	Specification method	Specifiable search options	Default search option
1	Group name^#1	Click the Browse button and specify the group.	None	None
2	Asset No.	Enter a unique number for user management, using 60 or fewer bytes of alphanumeric characters.	Select one of the following from the pull-down menu: match all the words match part of the words match beginning of the words match end of the words	match part of the words
3	User name	Enter the name of the PC user, using 255 or fewer bytes.	None	None
4	IP address	Enter the IP address of the PC, using 15 or fewer bytes of alphanumeric characters.	Select one of the following from the pull-down menu: match all the words match part of the words match beginning of the words match end of the words	match part of the words
5	OS	Enter the name of the OS, using a string of 200 or fewer bytes.	Select one of the following from the pull-down menu: match all the words match part of the words match beginning of the words match end of the words	match part of the words
6	Location^#2	Click the Browse button and specify the location.	None	None
7	Lowest score	Enter a number from 0 to 100	Select one of the following from the pull-down menu: not greater than, not less than, or equal	not greater than
8	Average score	Enter a number from 0 to 100.	Select one of the following from the pull-down menu: not greater than not less than, equal	not greater than
9	Totals by	Select one of the following from the pull-down menu: User Group	None	None
10	Group level^#3	Specify the level of the groups to be displayed in the search result. Enter a number from 0 to 256. This item is disabled when User is specified for Totals by.	None	None

(1) Evaluation results for each group

If Group is specified for Totals by in the Evaluation Condition Input window, the evaluation results for the status of security measures are displayed for each group, in the Evaluation Result List window.

The following shows the Evaluation Result List window when Group is specified.

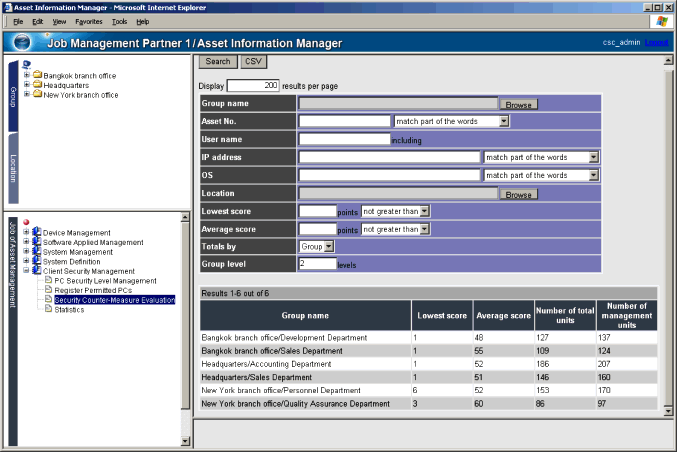

Figure 10-5 Evaluation Result List window when Group is specified

The following table lists the items displayed in the Evaluation Result List window when Group is specified.

Table 10-4 Items displayed in the Evaluation Result List window when Group is specified

No. Item Contents

1 Group name The group names for the group levels specified for Group level in the Evaluation Condition Input window are displayed.

2 Lowest score The lowest evaluation point score of a PC for the status of security measures among PCs in the group

3 Average score The average score for the status of security measures taken for the group

4 Number of total units The number of PCs subject to calculation of the lowest and average scores.
This is the number of management units, excluding PCs for which the evaluation points are displayed as -^#.

5 Number of management units The number of PCs to be managed, that is, the PCs for which Valid is displayed for Security management. This also includes PCs for which evaluation points are displayed as -^#.

#

The evaluation points are displayed as - if one of the following conditions is satisfied:

Not yet judged is displayed for the security level of all the judgment items.

Not applicable or Unknown is displayed for the security level of all the judgment items.

No judgment has been performed since JP1/CSC - Manager was upgraded.

If - is displayed for the evaluation points for all the clients, both the lowest and average scores are displayed as -.

No.	Item	Contents
1	Group name	The group names for the group levels specified for Group level in the Evaluation Condition Input window are displayed.
2	Lowest score	The lowest evaluation point score of a PC for the status of security measures among PCs in the group
3	Average score	The average score for the status of security measures taken for the group
4	Number of total units	The number of PCs subject to calculation of the lowest and average scores. This is the number of management units, excluding PCs for which the evaluation points are displayed as -^#.
5	Number of management units	The number of PCs to be managed, that is, the PCs for which Valid is displayed for Security management. This also includes PCs for which evaluation points are displayed as -^#.

(2) Evaluation results for each user

If User is specified for Totals by in the Evaluation Condition Input window, the evaluation results for the status of security measures are displayed for each user, in the Evaluation Result List window.

The following shows the Evaluation Result List window when User is specified.

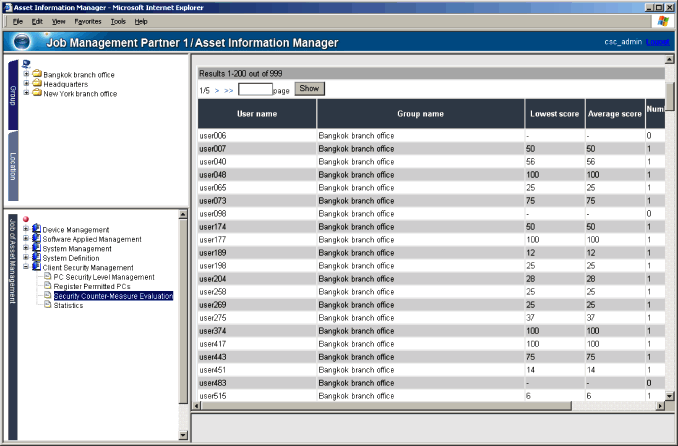

Figure 10-6 Evaluation Result List window when User is specified

The following table lists the items displayed in the Evaluation Result List window when User is specified.

Table 10-5 Items displayed in the Evaluation Result List window when User is specified

No. Item Contents

1 User name User name

2 Group name The group to which the user belongs

3 Lowest score The lowest evaluation point score of a PC for the status of security measures among the PCs used by the user

4 Average score The average score for the status of security measures taken for the user

5 Number of total units The number of PCs subject to calculation of the lowest and average scores.
This is the number of management units, excluding PCs for which the evaluation points are displayed as -^#.

6 Number of management units The number of PCs to be managed, that is, the PCs for which Valid is displayed for Security management. This also includes PCs for which evaluation points are displayed as -^#.

#

The evaluation points are displayed as - if one of the following conditions is satisfied:

Not yet judged is displayed for the security level of all the judgment items.

Not applicable or Unknown is displayed for the security level of all the judgment items.

No judgments have been performed after upgrading JP1/CSC - Manager.

If - is displayed for the evaluation points of a client, both the lowest and average scores are displayed as -.

No.	Item	Contents
1	User name	User name
2	Group name	The group to which the user belongs
3	Lowest score	The lowest evaluation point score of a PC for the status of security measures among the PCs used by the user
4	Average score	The average score for the status of security measures taken for the user
5	Number of total units	The number of PCs subject to calculation of the lowest and average scores. This is the number of management units, excluding PCs for which the evaluation points are displayed as -^#.
6	Number of management units	The number of PCs to be managed, that is, the PCs for which Valid is displayed for Security management. This also includes PCs for which evaluation points are displayed as -^#.
