Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

10.2.1 Outputting search results as a CSV

Search conditions can be used to specify clients to be managed, and the search results can be viewed and saved as a CSV file. CSV files are output from the PC Search window.

To specify a search condition and output the search results as a CSV file:

1. From the job menu of the AIM initial window, choose Client Security Management and then PC Security Level Management.
   The PC Search window is displayed.

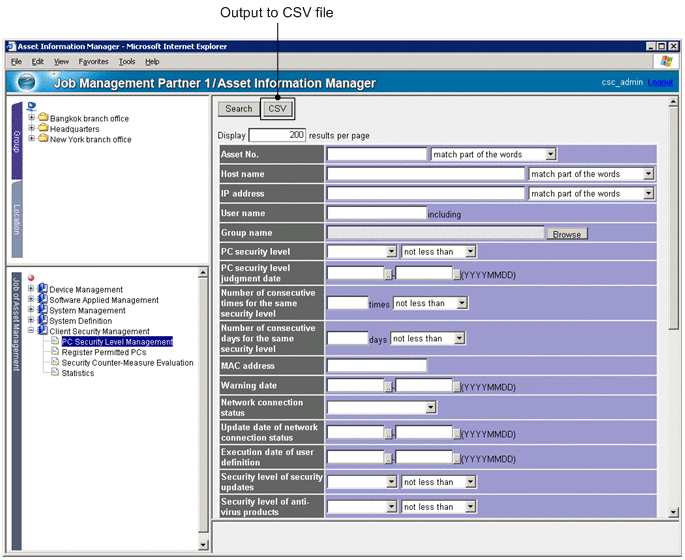

   Figure 10-2 PC Search window



2. Specify a search condition.
   Specify a search condition for each item. For details about the item specifications, see 8.2 Searching for clients.

3. Click the CSV button.
   The File Download dialog box is displayed.
   Skip to step 5 if you are saving the file. Note that for IE version 5.5 or earlier, the Open button and Save button are displayed as radio buttons.

4. Click the Open button.
   The search results are displayed in the CSV Output window.




   The following table describes the contents of the search results displayed in the CSV Output window.


   Table 10-1 Contents of the search results displayed in the CSV Output window

   No.	Item	Contents
   1	Asset No.	PC asset number
   2	Host name	Name for identification
   3	IP address	IP address
   4	User name	Name of the user
   5	Group name	Group to which the user belongs
   6	PC security level	Latest PC security level judged by the judgment policy. Safe, Unknown, Caution, Warning, Danger, Not applicable, or Not yet judged is displayed.
   7	PC security level judgment date	Date on which the PC security level was judged Displayed in YYYY/MM/DD hh:mm:ss format.
   8	Number of consecutive times for the same security level	Number of times the same security level other than Safe existed during security level judgment
   9	Number of consecutive days for the same security level	Number of days the same security level other than Safe existed during security level judgment
   10	MAC address	MAC address
   11	Warning date	Date of the latest user warning
   12	Network connection status	PC network connection status. Displayed as Refuse, Permit, Refuse in the emergency, or --. -- indicates that no network control is in effect.
   13	Update data of network connection status	Date and time at which the client's network access was permitted, denied, or immediately blocked
   14	Execution date of user definition	Date and time at which the user-defined action was implemented
   15	Security level of security updates	Security level for security updates
   16	Security level of anti-virus products	Security level for anti-virus products
   17	Security level of prohibited software	Security level for prohibited software
   18	Security level of mandatory software	Security level for mandatory software
   19	Security level of PC security settings	Security level for PC security settings
   20	Security level of user definition	Security level for a user definition
   21	OS	Name of the OS currently used
   22	Location	Location
   23	Security management	Whether PC security management is performed. Valid or Invalid is displayed.
   24	Evaluation point	Points indicating the status of PC security measures
   25	Judgment policy	Name of the judgment policy assigned to the PC
   26	Renewal date of judgment policy	Date and time at which the judgment policy was updated
   27	Assigned date of judgment policy	Date and time at which the judgment policy was assigned
   28	Action policy	Name of the action policy assigned to the PC
   29	Renewal date of action policy	Date and time at which the action policy was updated
   30	Assigned date of action policy	Date and time at which the action policy was assigned

5. To save the search results, click the Save button in the File Download dialog box.
   The Save As dialog box is displayed.

6. For File name in the Save As dialog box, enter a file name and click the Save button.
   Change the file name. Note that a string (consisting of alphanumeric characters and symbols) to identify the file is set by default for File name in the Save As dialog box.
   The search results are saved to a file in CSV format.


   Reference note

   When the PC list information output command (cscexportpclist) is executed, the asset information and judgment results of all PCs whose security levels were judged on the specified date are output as PC list information to a CSV file. The administrator can use this PC list information file to manage the PC security levels.

   For details about the PC list information output command (cscexportpclist), see cscexportpclist (outputs PC list information) in 15. Commands. For details about the PC list information file, see 16.10 PC list information file.
