1.3.9 Gauge trends in countermeasure usage for user-defined judgment items

n Overview

The example below shows how the administrator can output statistics describing countermeasure usage for user-defined judgment items.

This operation is recommended when, for example, the administrator wants to view the trend over time in the proportion of clients running power-saving CPUs as part of an effort to reduce power consumption.

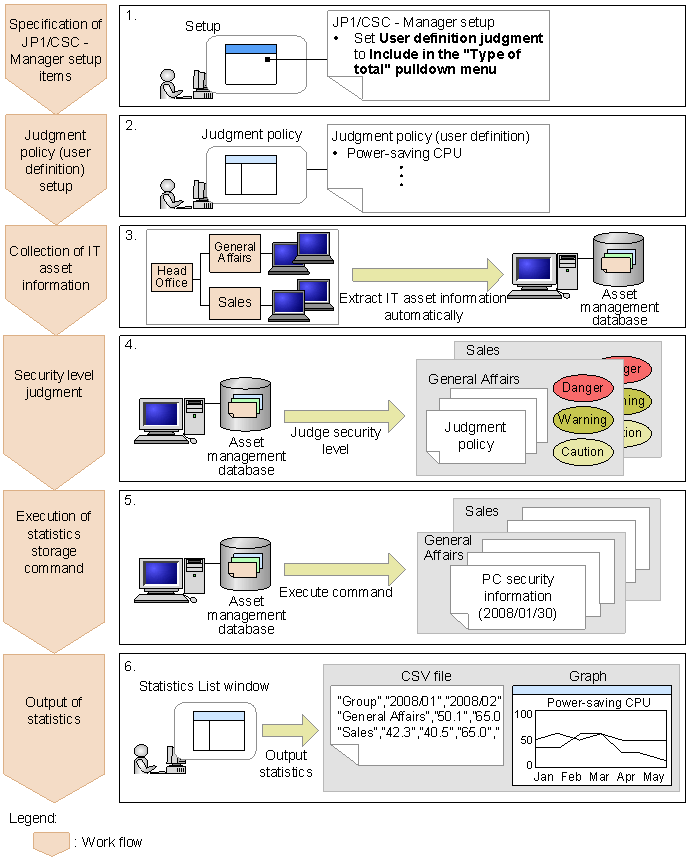

Figure 1-19 Outputting statistics (user-defined judgment items)

n Work flow

1. Specification of JP1/CSC - Manager setup items
   To output user-defined judgment items as statistics, in the JP1/CSC - Manager Setup dialog box, specify Include in the "Type of total" pulldown menu for User definition judgment.

   • Set up JP1/CSC - Manager. 5.4.3 Setting up JP1/CSC - Manager
2. User-defined judgment policy setup
   The administrator sets the user-defined judgment policy.

   • Set the user-defined judgment policy. 6.8 Editing a user-defined judgment policy
3. Collection of IT asset information
   The client's IT asset information is collected and centrally managed in the asset management database.

4. Security level judgment
   To determine the client's security level, the IT asset information collected at step 3 is checked against the judgment policy set at step 2. The security levels of clients are judged one group at a time for the groups defined by the administrator.
   A security level judgment can be triggered in any of three ways: Automatic judgment when inventory information is updated, periodic judgment via Scheduled Tasks in Windows, or judgment by an administrator.

   • Judge the security level. 2.4 Judging security levels
5. Execution of statistics storage command
   When the command is executed, information about the countermeasure status of user-defined judgment items is stored in the asset management database as statistics.

   • Store statistics. 10.4.1 Storing statistics
   • Statistics storage command. cscstorecount (stores statistics about the status of security measures) in 15. Commands
6. Output of statistics
   Search for the statistics that you want to check. You can then check the countermeasure status by displaying the data as a graph or outputting it as a CSV file.

   • Search statistics. 10.4.2 Searching statistics
   • CSV output of statistics. 10.4.3 Outputting statistics to a CSV file
   • Display graph of statistics. 10.4.4 Displaying statistics as a graph
