10.4.3 Outputting statistics to a CSV file

Search results for statistics indicating the status of security measures can be displayed or saved as a file in CSV format.

Organization of this subsection
(1) Outputting statistics for specific groups to a CSV file
(2) Outputting statistics for specific judgment items as a CSV file

(1) Outputting statistics for specific groups to a CSV file

You can output the statistics for specific groups to a CSV file from the Statistics Display Condition Input window.

To output statistics for specific groups to a CSV file based on search conditions:

  1. From the job menu of the AIM initial window, choose Client Security Management and then Statistics.
    The Statistics Display Condition Input window appears.

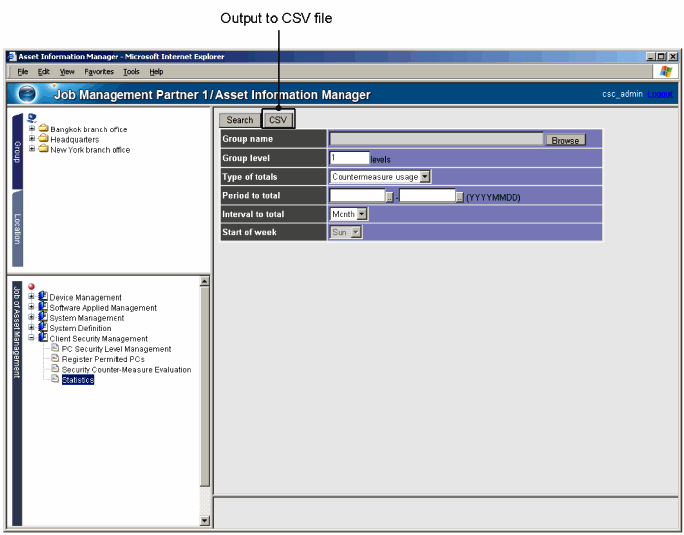

    Figure 10-16 Statistics Display Condition Input window

    [Figure]

  2. In the Statistics Display Condition Input window, specify the search conditions.
    Specify the search conditions in the Statistics Display Condition Input window. For details about the content that can be specified for each item, see Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window.

  3. Click the CSV button.
    The File Download dialog box appears.
    Skip to step 5 if you are saving the file. Note that in Internet Explorer 5.5 and earlier, the options to save or open the file are displayed as radio buttons.

  4. Click the Open button.
    The search results are displayed in the CSV Output window. The displayed contents vary depending on the options specified for Type of totals and Interval to total when the search was performed.

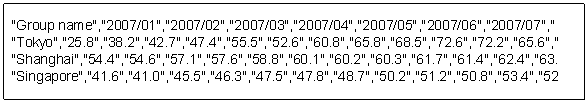

    Figure 10-17 CSV output when Type of totals is Countermeasure usage and Interval to total is Month

    [Figure]

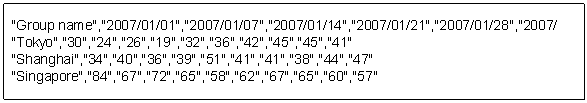

    Figure 10-18 CSV output when Type of totals is Evaluation point and Interval to total is Week

    [Figure]

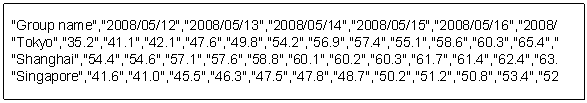

    Figure 10-19 CSV output when Type of totals is user-defined and Interval to total is Day

    [Figure]

    The following table describes the contents of the search results displayed in the CSV Output window.

    Table 10-10 Contents of the search results displayed in the CSV Output window

    No. Item Contents
    1 Group name The name of the group.
    2 Dates The date of the statistics.
    Data is displayed as monthly, weekly, or daily data depending on the option specified for Interval to total.
    3 Numerical values Numerical values representing countermeasure usage, evaluation points, or user-defined countermeasure usage, depending on the option specified for Type of totals.
    The evaluation points when Month or Week is specified for Interval to total are the average score over the stated period.
    If there are no applicable statistics, a blank character is displayed.

  5. To save the search results, click the Save button in the File Download dialog box.
    The Save As dialog box appears.

  6. Enter a file name in the Save As dialog box and click the Save button.
    A string (consisting of alphanumeric characters and symbols) to identify the file is set by default for File name in the Save As dialog box. Change this to a file name of your choice. The search results are saved to a file in CSV format.

(2) Outputting statistics for specific judgment items as a CSV file

You can output the statistics for specific judgment items to a CSV file from the Statistics Details window.

To output statistics for specific judgment items to a CSV file:

  1. From the job menu of the AIM initial window, choose Client Security Management and then Statistics.
    The Statistics Display Condition Input window appears.

  2. In the Statistics Display Condition Input window, specify the search conditions.
    Specify the search conditions in the Statistics Display Condition Input window. Make sure that you specify Countermeasure usage for Type of totals. For details about the content that can be specified for each item, see Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window.

  3. Click the Search button.
    The Statistics List window appears.

  4. Click a group name anchor.
    The Statistics Details window appears.

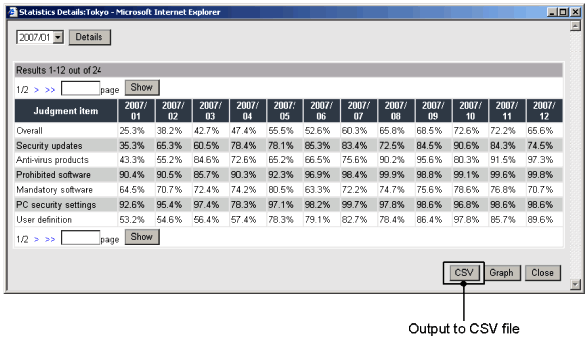

    Figure 10-20 Statistics Details window

    [Figure]

  5. Click the CSV button.
    The File Download dialog box appears.
    Skip to step 7 if you are saving the file. Note that in Internet Explorer 5.5 and earlier, the options to save or open the file are displayed as radio buttons.

  6. Click the Open button.
    The countermeasure usage for each judgment item is displayed in the CSV Output window.

    Figure 10-21 CSV output of countermeasure usage by judgment item

    [Figure]

    The following table describes the contents displayed in the CSV Output window.

    Table 10-11 Contents displayed in the CSV Output window

    No. Item Contents
    1 Judgment items Displays Overall and the name of each judgment item.
    2 Dates The date of the statistics.
    Data is displayed as monthly, weekly, or daily data depending on the option specified for Interval to total.
    3 Numerical values Numerical values representing countermeasure usage. If there are no applicable statistics, a blank character is displayed.

  7. To save the output results, click the Save button in the File Download dialog box.
    The Save As dialog box appears.

  8. Enter a file name in the Save As dialog box and click the Save button.
    A string (consisting of alphanumeric characters and symbols) to identify the file is set by default for File name in the Save As dialog box. Change this to a file name of your choice. The output results are saved to a file in CSV format.
