10.4.4 Displaying statistics as a graph

Search results for statistics indicating the status of security measures can be displayed as a graph.

To use this feature, Office Web Components 10.0 or Office Web Components 11.0 must be installed on the management terminal.

Organization of this subsection

(1) Displaying statistics for specific groups as a graph

(2) Displaying statistics for specific judgment items as a graph

(1) Displaying statistics for specific groups as a graph

You can display the statistics for specific groups as a graph from the Statistics List window.

To display statistics for specific groups as a graph:

1. From the job menu of the AIM initial window, choose Client Security Management and then Statistics.
   The Statistics Display Condition Input window appears.

2. In the Statistics Display Condition Input window, specify the search conditions.
   Specify the search conditions in the Statistics Display Condition Input window. For details about the content that can be specified for each item, see Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window.

3. Click the Search button.
   The Statistics List window appears. The items displayed in this window depend on whether Countermeasure usage, Evaluation point, or a user-defined judgment item was specified for Type of totals.
   The following shows an example of the Statistics List window when Countermeasure usage is specified for Type of totals.

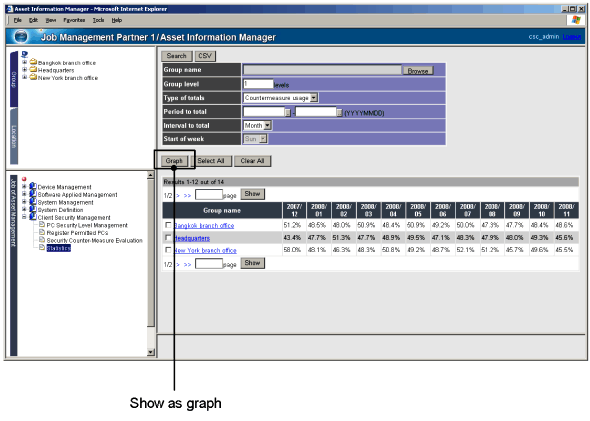

   Figure 10-22 Statistics List window (countermeasure usage)



4. Select the groups whose statistics you want to display as a graph.
   Select the check boxes for the groups whose data you want to display as a graph. To select all the groups on the page, click the Select All button. To clear all the check boxes on the page, click the Clear All button.

5. Click the Graph button.
   The Statistics Graph Display window appears. The items displayed in this window depend on whether Countermeasure usage, Evaluation point, or a user-defined judgment item was specified for Type of totals.
   The following shows an example of the Statistics Graph Display window when Countermeasure usage is specified for Type of totals.

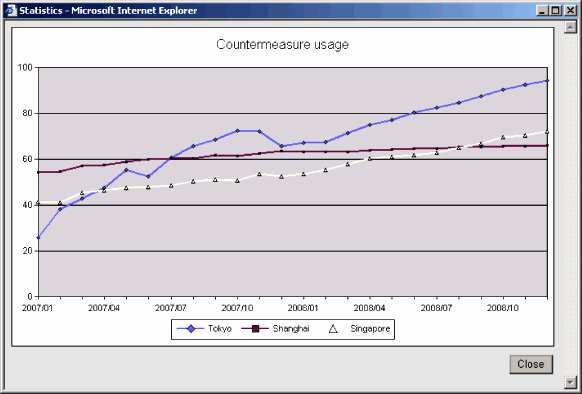

   Figure 10-23 Statistics Graph Display window (countermeasure usage)



   The following shows an example of the Statistics Graph Display window when Evaluation point is specified for Type of totals.

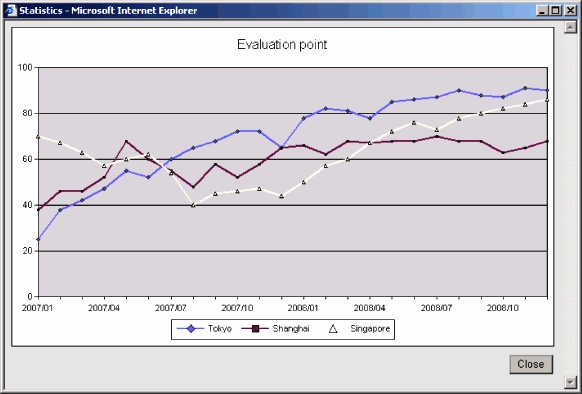

   Figure 10-24 Statistics Graph Display window (evaluation points)



   The following figure shows an example of the Statistics Graph Display window when a user-defined judgment item name is specified for Type of totals.

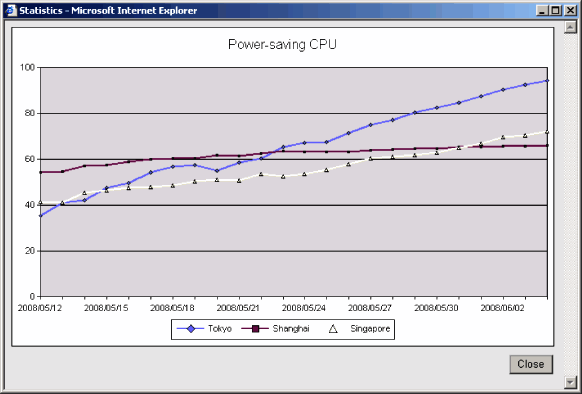

   Figure 10-25 Statistics Graph Display window (user-defined countermeasure usage)



   The following table describes the items displayed in the Statistics Graph Display window.


   Table 10-12 Items displayed in the Statistics Graph Display window

   No.	Item	Contents
   1	Title	Displays Countermeasure usage, Evaluation point, or the name of the user-defined judgment item.
   2	Numerical values (vertical axis)	Displays countermeasure usage (%), evaluation points (point value) or countermeasure usage for the user definition (%), according to the option selected for Type of totals.
   3	Dates (horizontal axis)	Monthly, weekly, or daily dates according to the option selected for Interval to total.
   4	Legend	The group names that correspond to the data plotted on the graph.

(2) Displaying statistics for specific judgment items as a graph

You can display countermeasure usage for specific judgment items as a graph from the Statistics Details window.

To display countermeasure usage for specific judgment items as a graph:

1. From the job menu of the AIM initial window, choose Client Security Management and then Statistics.
   The Statistics Display Condition Input window appears.

2. In the Statistics Display Condition Input window, specify the search conditions.
   Specify the search conditions in the Statistics Display Condition Input window. Make sure that you specify Countermeasure usage for Type of totals. For details about the content that can be specified for each item, see Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window.

3. Click the Search button.
   The Statistics List window appears.

4. Click a group name anchor.
   The Statistics Details window appears.

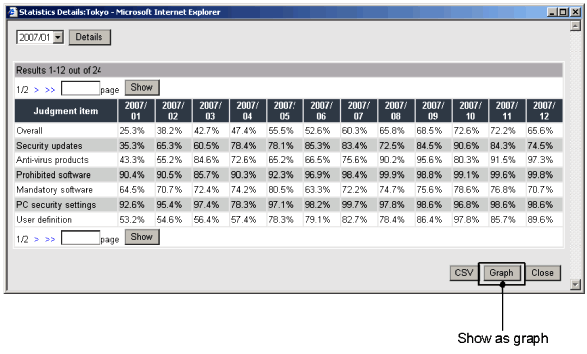

   Figure 10-26 Statistics Details window



5. Click the Graph button.
   Statistics Details Graph Display window appears.

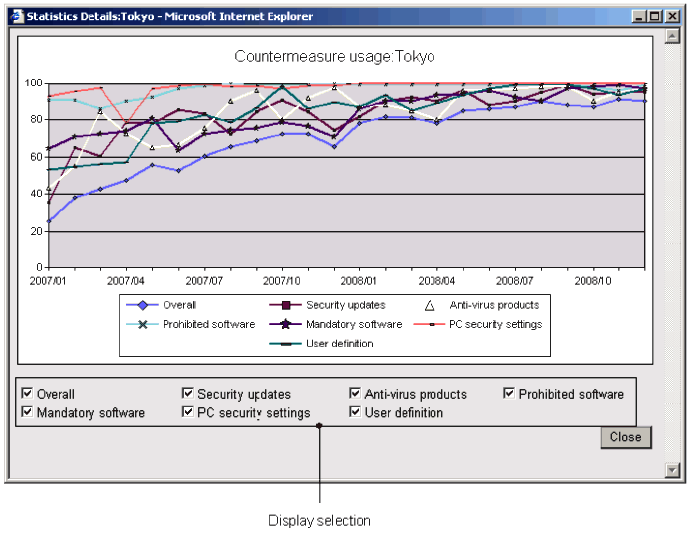

   Figure 10-27 Statistics Details Graph Display window



   The following table describes the items displayed in the Statistics Details Graph Display window.


   Table 10-13 Items displayed in the Statistics Details Graph Display window

   No.	Item	Contents
   1	Title	Displays Countermeasure usage: followed by the group name.
   2	Numerical values (vertical axis)	Countermeasure usage (%).
   3	Dates (horizontal axis)	Monthly, weekly, or daily dates according to the option selected for Interval to total.
   4	Legend	The judgment items that correspond to the data plotted on the graph.
   5	Display selection	Use this area to select which judgment items to display in the graph.
