10.4.2 Searching statistics

You can search statistics on the status of security measures by specifying display conditions. By doing so, you can view the evaluation points, countermeasure usage, and user definition countermeasure usage for a particular group over time.

Organization of this subsection

(1) Searching statistics for specific groups

(2) Checking countermeasure usage for each judgment item

(1) Searching statistics for specific groups

You can search statistics from the Statistics Display Condition Input window.

To search statistics by entering display conditions:

1. From the job menu of the AIM initial window, choose Client Security Management, and then Statistics.
   The Statistics Display Condition Input window appears.


   Figure 10-11 Statistics Display Condition Input window



2. In the Statistics Display Condition Input window, specify the search conditions.
   Specify the search conditions in the Statistics Display Condition Input window. The search takes place using an AND condition for the specified items.
   The following table shows the content that can be specified for each item.


   Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window

   No.	Search condition item	Specification method	Default value
   1	Group name#1	Click the Browse button and specify the group.	--
   2	Group level#2	Specify the level of groups to include in the search result. Enter a number from 0 to 256.	1
   3	Type of totals	Select one of the following from the pull-down menu: Countermeasure usage Evaluation point user-defined-judgment-item-name#3	Countermeasure usage
   4	Period to total (start-date - end-date)#4	Enter a number in the format YYYYMMDD.	--
   5	Interval to total#5, #6	Select one of the following from the pull-down menu: Month Week Day	Month
   6	Start of week	Select one of the following from the pull-down menu: Sun Mon Tue Wed Thu Fri Sat This item is activated when Week is specified for Interval to total.	Sun

   Legend:

   --: N/A

   #1

   When you click the Browse button, the Browse Groups dialog box appears. To specify a group, select the group from the tree and then click the OK button.

   #2

   Specify the group level below the group specified for Group name in item 1 (level 0). For example, if Sales Dept. and Accounting Dept. exist under Head Office and you want to display Head Office/Sales Dept. and Head Office/Accounting Dept. as the search results, specify Head Office for Group name and specify 1 for Group level.

   #3

   The names of the judgment items defined in the user-defined judgment policy are displayed.

   This item only appears if Include in the "Type of total" pulldown menu is specified for User definition judgment in the JP1/CSC - Manager Setup dialog box. For details about setting up JP1/CSC - Manager, see 5.4.3 Setting up JP1/CSC - Manager.

   A maximum of 10 user-defined judgment items are displayed, in the order in which they were added to the judgment policy.

   #4

   You can use the date entry assistance feature to enter dates.

   #5

   When Interval to total is set to Month, the period over which data is collected may be limited according to the setting for Period to total.

   The following shows an example of such a situation:



   #6

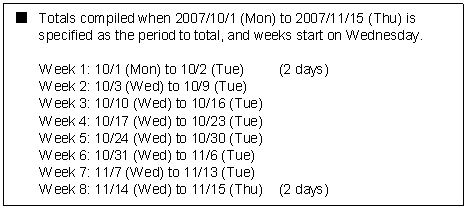

   When Interval to total is set to Week, the period over which data is collected may be limited according to the settings for Period to total and Start of week.

   The following shows an example of such a situation:





3. Click the Search button.
   The Statistics List window appears. The items displayed in this window depend on whether Countermeasure usage, Evaluation point, or a user-defined judgment item was specified for Type of totals.

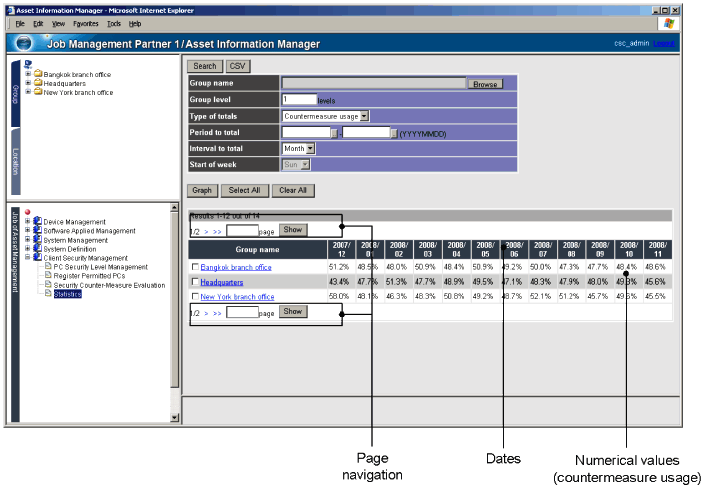

   The following shows an example of the Statistics List window when Countermeasure usage is specified for Type of totals.


   Figure 10-12 Statistics List window when Countermeasure usage is specified

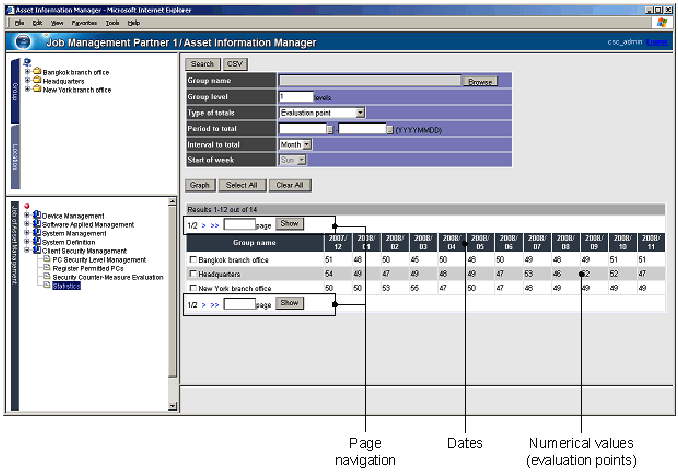

   The following shows an example of the Statistics List window when Evaluation point is specified for Type of totals.


   Figure 10-13 Statistics List window when Evaluation point is specified

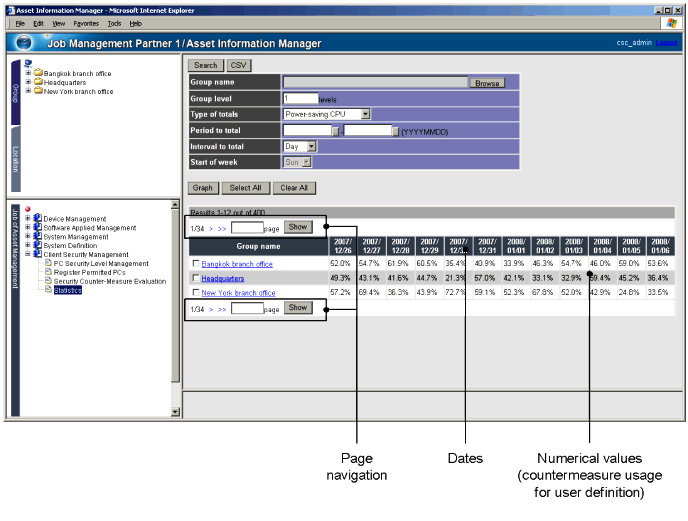

   The following shows an example of the Statistics List window when a user-defined judgment item is specified for Type of totals.


   Figure 10-14 Statistics List window when user-defined judgment item is specified



   The following table describes the items displayed in the Statistics List window.


   Table 10-8 Items displayed in the Statistics List window

   No.	Item	Contents
   1	Group names	The group names for the group levels specified for Group level in the Statistics Display Condition Input window. If you specified Countermeasure usage for Type of totals, you can display the Statistics Detail window by clicking the anchor for the group name.
   2	Dates#	The date of the statistics. When Month is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM. Each date represents one month. When Week is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM/DD. Each date represents one week, starting on the day of the week specified for Start of week. When Day is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM/DD. Each date represents one day.
   3	Numerical values	Numerical values representing countermeasure usage, evaluation points, or user-defined countermeasure usage, depending on the option specified for Type of totals. The evaluation points when Month or Week is specified for Interval to total are the average score over the stated period. If there are no applicable statistics, - is displayed.

   #

   If there are more dates than can fit on one page, you can display the other pages by clicking the anchors in the page navigation area. The following describes the behavior of each anchor:

   > : Displays the next page.

   < : Displays the previous page.

   >> : Displays the last page.

   << : Displays the first page.

   You can also go directly to a specific page by entering the page number in the box in the page navigation area and clicking Show.




   Note

   The search may fail if you attempt to display too much data. In this case, try using more specific search criteria.

(2) Checking countermeasure usage for each judgment item

When you specify Countermeasure usage as the Type of totals, you can select a group in the Statistics List window and check the status of countermeasure usage over time for each judgment item.

To display countermeasure usage for each judgment item:

1. From the job menu of the AIM initial window, choose Client Security Management and then Statistics.
   The Statistics Display Condition Input window appears.

2. In the Statistics Display Condition Input window, specify the search conditions.
   Specify the search conditions in the Statistics Display Condition Input window. Make sure that you specify Countermeasure usage for Type of totals. For details about the content that can be specified for each item, see Table 10-7 Contents specifiable for each item in the Statistics Display Condition Input window.

3. Click the Search button.
   The Statistics List window appears.

4. Click a group name anchor.
   The Statistics Details window appears, displaying the countermeasure usage over time for each judgment item for the group you selected.

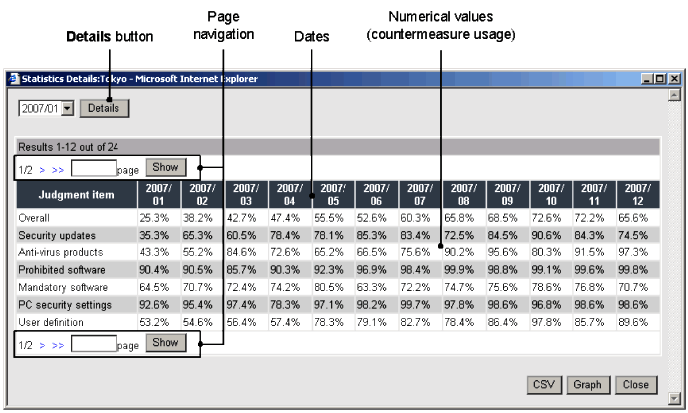

   Figure 10-15 Statistics Details window



   The following table describes the items displayed in the Statistics Details window.


   Table 10-9 Items displayed in the Statistics Details window

   No.	Item	Contents
   1	Items	Displays Overall and the name of each judgment item.
   2	Dates#	The date of the statistics. When Month is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM. Each date represents one month. When Week is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM/DD. Each date represents one week, starting on the day of the week specified for Start of week. When Day is specified for Interval to total A maximum of 12 dates per page are displayed in the format YYYY/MM/DD. Each date represents one day.
   3	Numerical values	Displays the countermeasure usage for each judgment item. If there are no applicable statistics, - is displayed.

   #

   If there are more dates than can fit on one page, you can display the other pages by clicking the anchors in the page navigation area. The navigation area works in the same way as that of the Statistics List window.




   Details button

   This button appears when Month or Week is specified for Interval to total. When the Details button is clicked, the countermeasure usage is displayed for each judgment item on a daily basis for the period selected from the pull-down menu.
