7.2.2 Define Details window for service linkage objects monitoring jobs

The Define Details window for service linkage objects monitoring jobs is explained below.

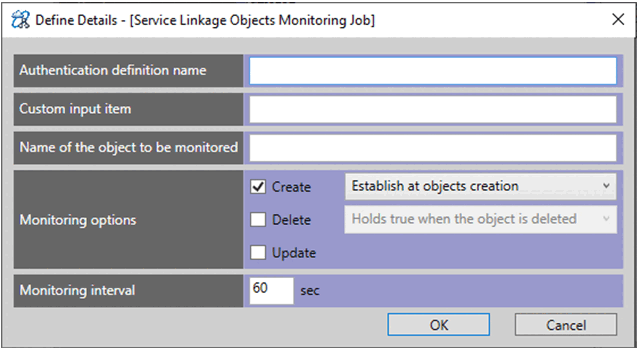

Figure 7‒28: Define Details window for service linkage objects monitoring jobs

The following are display items and restrictions on input values in the Define Details window for Service Linkage Objects Monitoring Job:

Authentication definition name

Enter the authentication definition to be used for the service linkage objects monitoring job.

Custom input item

Enter the custom input item to be used for the service linkage objects monitoring job.

Name of the object to be monitored

Enter a monitoring target object name, which is one of the object names extracted by the command that acquires object list information. You can specify multiple objects as monitoring targets by specifying a collective name. For details, see 6.2.1 (4) About how to specify the names of monitoring target objects.

Monitoring options

Specify the condition for monitoring completion from the monitoring target object information.

Create

Monitoring is complete when a monitoring target object is created. An option can be specified to confirm that monitoring is complete if the object is already created during the first monitoring.

Delete

Monitoring is complete when a monitoring target object is deleted. An option can be specified to confirm that monitoring is complete if the object is already deleted during the first monitoring.

Update

Monitoring is complete when a change occurs with the monitoring target object information that is the target of update monitoring. The information to be monitored for updates is the information in Update monitoring target 1 to Update monitoring target 3, which can be specified in Monitoring processing in the Object monitoring definition window of the Web GUI.

Monitoring interval

Enter the interval for verifying whether the specified monitoring target object fulfills the condition under which the monitoring condition is met.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Authentication definition name	Text box	A character string of up to 64 bytes. Alphanumerics, hyphens (-), underscores (_), slashes (/), question marks (?), and periods (.) can be used. Macro variables can be specified for this input item.	Not required	None
2	Value specified in Label Name in AJS3 - View Custom Input Items in the Variable Settings dialog box of the Object Monitoring Definition window of the Web GUI	Text box	Restrictions are imposed by the rules specified in Character String Length and Prohibited Characters in AJS3 - View Custom Input Items. For details, see 7.1.9 (3) Setting variables dialog box. Macro variables can be specified for this input item.	Not required	None
3	Name of the object to be monitored	Text box	A character string of up to 3,072 bytes. Macro variables can be specified for this input item.	Required	None
4	Option of Create in Monitoring options	List box	Select from below: Establish at objects creation Establish for existing objects	Required#	Establish at objects creation
5	Option of Delete in Monitoring options	List box	Select from below: Holds true when the object is deleted Holds true even when it no longer exists	Required#	Holds true when the object is deleted
6	Monitoring interval	Text box	A numerical value between 60 and 600. The unit is seconds.	Required	60
