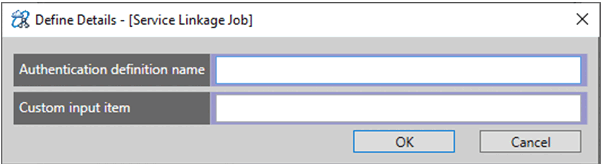

7.2.1 Define Details window for service linkage jobs
The Define Details window for service linkage jobs is explained below.
|
|
![[Figure]](GRAPHICS/ZU070010.GIF)
The following are display items and restrictions on input values in the Define Details window for Service Linkage Job:
- Authentication definition name
-
Enter the authentication definition to be used for the service linkage job.
- Custom input item
-
Enter the custom input item to be used for the service linkage job.
|
No. |
Display item |
Input format |
Input restriction |
Required/Not required |
Assumed value |
|---|---|---|---|---|---|
|
1 |
Authentication definition name |
Text box |
A character string of up to 64 bytes. Alphanumerics, hyphens (-), underscores (_), slashes (/), question marks (?), and periods (.) can be used. Macro variables can be specified for this input item. |
Not required |
None |
|
2 |
A value specified in Label Name in AJS3 - View Custom Input Items in the Variable Settings dialog box of the Execution Definition window of the Web GUI |
Text box |
Restrictions are imposed by the rules specified in Character String Length and Prohibited Characters in AJS3 - View Custom Input Items. For details, see 7.1.8 (4) Setting variables dialog box. Macro variables can be specified for this input item. |
Not required |
None |
