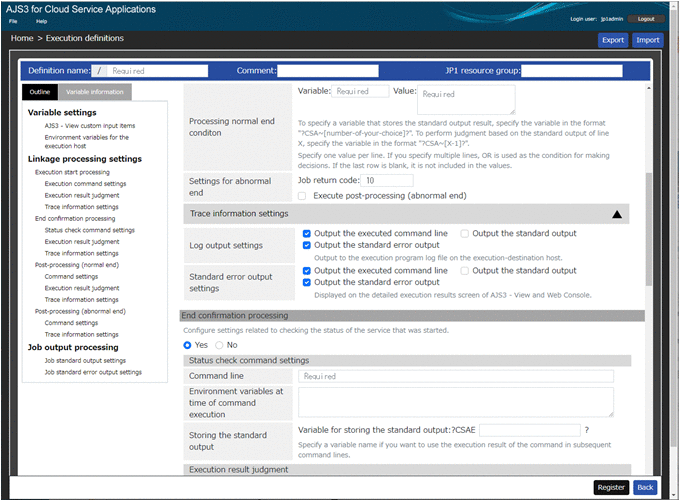

7.1.8 Execution definitions window

Enter the command line to run.

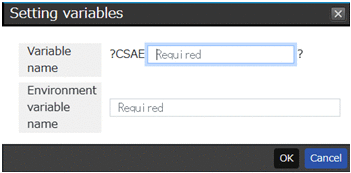

Enter an environment variable to be used for command line execution in the environment-variable-name=environment-variable-value format. When specifying multiple variables, enter a line break for each one.

Enter a variable name in the ?CSAExxxx? format where the standard output details are stored for passing. Replace xxxx with a value.

Select operation at the end of a command from either of the following.

• Judge based on the end condition

  Judge the execution result as normal or abnormal based on the return code.

• Always normal

  Judge the execution result always as normal regardless of the return code. When this item is selected, Abnormal end condition and Settings for abnormal end are hidden.

Enter an abnormal end condition of the return code of the execution command.

Set operation when the abnormal end condition is met.

Job return code

Enter the return code of the job.

Execute post-processing (abnormal end)

Select this item when executing the processing set for Post-processing (abnormal end) before the end of the job.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Conditions for Abnormal end condition	List box	Select from the following. Equal to (=), not equal to (!=), less than (<), more than (>), equal to or less than (<=), equal to or more than (>=)	Required	None
2	Value for Abnormal end condition	Text box	A numerical value between 0 and 2,147,483,647.	Required	None
3	Job return code	Text box	A numerical value between 1 and 50.	Required	None

Select operation at the end of a command from either of the following.

• Judge based on the end condition

  Judge the execution result as normal or abnormal based on the standard output details output by the command.

• Always normal

  Judge the execution result always as normal regardless of the standard output details. When this item is selected, Processing normal end condition and Settings for abnormal end are hidden.

Set the variable and its values for judging the normal end condition.

Variable

Enter a variable for judging the normal end condition in the ?CSAxxxxxx[YYYY]? or ?CSAxxxxx? format. Specify the YYYY with a value one less than the number of rows you want to use for judgment of the standard output. Even in the case of only one row, the YYYY needs to be specified (0 should be specified in such a case).

Value

Enter up to 10 values that match the value of the specified variable. Multiple values can be specified by entering a line break for each one. When the value matches the value stored in the specified variable, the processing is judged as normal end.

Set the operation when the processing normal end condition is not satisfied.

Job return code

Enter the return code of the job.

Execute post-processing (abnormal end)

Select this item when executing the processing set for Post-processing (abnormal end) before the end of the job.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Variable	Text box	Character string of 70 bytes or less. The variable can be specified in the ?CSAxxxxxx[YYYY]? or ?CSAxxxxx? format. The characters that can be specified for xxxxxx and YYYY are as follows. xxxxxx: A to Z (uppercase alphabetical letters) and 0 to 9 (Arabic numbers) YYYY: 0 to 9 (Arabic numbers)	Required	None
2	Value	Text box	Character string within 1,023 bytes. No line break is counted as part of the character string above. A tab character can also be specified. Up to 1,032 characters can be entered. You can specify a variable in this input item.	Required	None
3	Job return code	Text box	A numerical value between 1 and 50.	Required	None

Configure settings for output to the service linkage job log file. For details about service linkage job log, see 9.2.6 Service Linkage Job Log.

Output the executed command line

Select whether to output the executed command line to the log.

Output the standard output

Select whether to output the standard output of executed commands to the log.

Output the standard error output

Select whether to output the standard error output of executed commands to the log.

Sets the output to the standard error output.

Output the executed command line

Select whether to output the executed command line to the standard error output.

Output the standard output

Select whether to output the standard output of the executed command to the standard error output.

Output the standard error output

Select whether to output the standard error output of the executed command to the standard error output.

Enter the command line to run.

Enter an environment variable to be used for command line execution in the environment-variable-name=environment-variable-value format. When specifying multiple variables, enter a line break for each one.

Enter a variable name in the ?CSAExxxx? format where the standard output details are stored for passing. Replace xxxx with a value.

Select operation at the end of a command from either of the following.

• Judge based on the end condition

  Judge the execution result as normal or abnormal based on the return code.

• Always normal

  Judge the execution result always as normal regardless of the return code. When this item is selected, Abnormal end condition and Settings for abnormal end are hidden.

Enter an abnormal end condition of the return code of the status check command.

Set operation when the abnormal end condition is met.

Job return code

Enter the return code of the job.

Execute post-processing (abnormal end)

Select this item when executing the processing set for Post-processing (abnormal end) before the end of the job.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Conditions for Abnormal end condition	List box	Select from the following. Equal to (=), not equal to (!=), less than (<), more than (>), equal to or less than (<=), equal to or more than (>=)	Required	None
2	Value for Abnormal end condition	Text box	A numerical value between 0 and 2,147,483,647.	Required	None
3	Job return code	Text box	A numerical value between 1 and 50.	Required	None

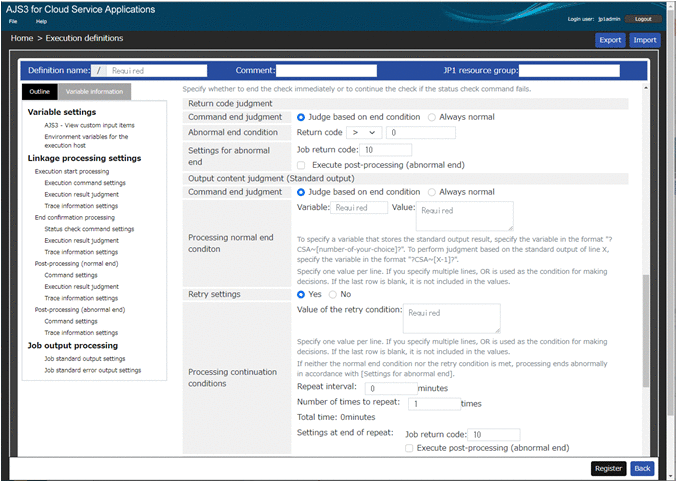

Select operation at the end of a command from either of the following.

• Judge based on the end condition

  Judge the execution result as normal or abnormal and whether to retry the processing based on the standard output details output by the command.

• Always normal

  Judge the execution result always as normal regardless of the standard output details. When this item is selected, the following are hidden: Processing normal end condition, Retry settings, and Settings for abnormal end.

Set the variables and their values for judging the normal end condition and processing continuity condition.

Variable

Enter a variable name for judging the normal end condition and processing continuity condition in the ?CSAxxxxxx[YYYY]? or ?CSAxxxxx? format. Specify the YYYY with a value one less than the number of rows you want to use for judgment of the standard output. Even in the case of only one row, the YYYY needs to be specified (0 in such a case).

Value

Enter up to 10 values that match the value of the specified variable. Multiple values can be specified by entering a line break for each one. When the value matches the value stored in the specified variable, the processing is judged as normal end.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Variable for processing normal end condition	Text box	Character string of 70 bytes or less. The variable can be specified in the ?CSAxxxxxx[YYYY]? or ?CSAxxxxx? format. The characters that can be specified for xxxxxx and YYYY are as follows. xxxxxx: A to Z (uppercase alphabetical letters) and 0 to 9 (Arabic numbers) YYYY: 0 to 9 (Arabic numbers)	Required	None
2	Value for processing normal end condition	Text box	Character string within 1,023 bytes. No line break is counted as part of the character string above. A tab character can also be specified. Up to 1,032 characters can be entered. You can specify a variable in this input item.	Required	None

Select whether to retry the processing based on the standard output details of the command. To retry the processing, select Yes and set the Processing continuation conditions. If No is selected, the Processing continuation conditions is not shown.

Enter conditions for the continuing operation.

Value of the retry condition

Enter up to 10 values that match the value of the variable of the specified normal end condition. Multiple values can be specified by entering a line break for each one. When the value matches the value stored in the specified variable, re-execute the status check command after the Repeat interval.

Repeat interval

Enter an interval for repeated execution.

Number of times to repeat

Enter the number of times of repeated execution.

Total time

This item displays the total time to be taken for the retry of the end confirmation processing based on the Repeat interval and Number of times to repeat. For a value outside the range of input restriction, - is shown.

Note that the total time includes neither the execution time of the status check command nor any other processing time.

Settings at end of repeat - Job return code

Enter the return code of the job when the processing has been performed for the specified number of times.

Settings at end of repeat - Execute post-processing (abnormal end)

Select this item when executing the processing set for Post-processing (abnormal end) before the end of the job in the case where the processing has been performed for the specified number of times.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Value of the retry condition	Text box	Character string within 1,023 bytes. No line break is counted as part of the character string above. A tab character can also be specified. Up to 1,032 characters can be entered. You can specify a variable in this input item.	Required	None
2	Repeat interval	Text box	A numerical value between 0 and 10. The unit is minutes.	Required	None
3	Number of times to repeat	Text box	A numerical value between 1 and 2,880.	Required	None
4	Total time	--	A numerical value between 1 and 2,880. The unit is minutes. This item displays the value of the product of the repeat interval and the repeat count.	Required	None
5	Job return code	Text box	A numerical value between 1 and 50.	Required	None

Set the operation when neither the normal end condition nor the processing continuity condition is met.

Job return code

Enter the return code of the job.

Execute post-processing (abnormal end)

Select this item when executing the processing set for Post-processing (abnormal end) before the end of the job.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Job return code	Text box	A numerical value between 1 and 50.	Required	None

Configure settings for output to the service linkage job log file. For details about service linkage job log, see 9.2.6 Service Linkage Job Log.

Output the executed command line

Select whether to output the executed command line to the log.

Output the standard output

Select whether to output the standard output of executed commands to the log.

Output the standard error output

Select whether to output the standard error output of executed commands to the log.

Sets the output to the standard error output.

Output the executed command line

Select whether to output the executed command line to the standard error output.

Output the standard output

Select whether to output the standard output of the executed command to the standard error output.

Output the standard error output

Select whether to output the standard error output of the executed command to the standard error output.

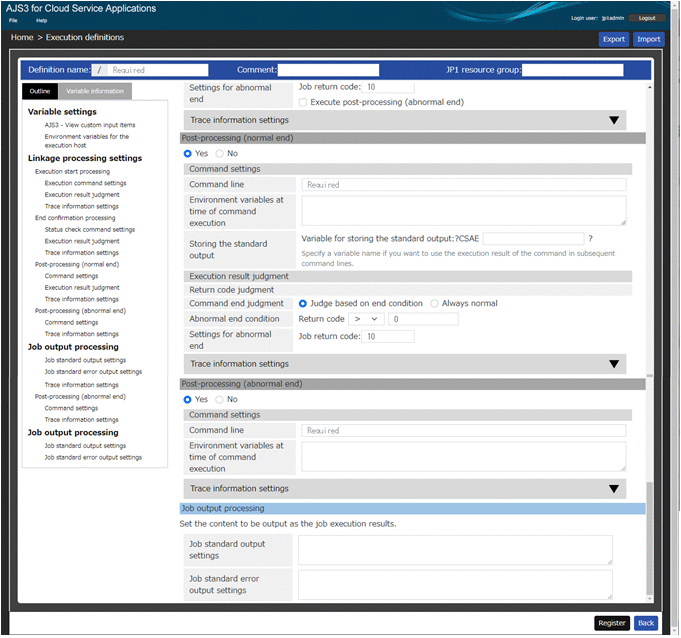

Enter the command line to run.

Enter an environment variable to be used for command line execution in the environment-variable-name=environment-variable-value format. When specifying multiple variables, enter a line break for each one.

Enter a variable name in the ?CSAExxxx? format where the standard output details are stored for passing. Replace xxxx with a value.

Select operation at the end of a command from either of the following.

• Judge based on the end condition

  Judge the execution result as normal or abnormal based on the return code.

• Always normal

  Judge the execution result always as normal regardless of the return code. When this item is selected, Abnormal end condition and Settings for abnormal end are hidden.

Enter an abnormal end condition of the return code of the status check command.

Set operation when the abnormal end condition is met.

Job return code

Enter the return code of the job.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Conditions for Abnormal end condition	List box	Select from the following. Equal to (=), not equal to (!=), less than (<), more than (>), equal to or less than (<=), equal to or more than (>=)	Required	None
2	Value for Abnormal end condition	Text box	A numerical value between 0 and 2,147,483,647.	Required	None
3	Job return code	Text box	A numerical value between 1 and 50.	Required	None

Configure settings for output to the service linkage job log file. For details about service linkage job log, see 9.2.6 Service Linkage Job Log.

Output the executed command line

Select whether to output the executed command line to the log.

Output the standard output

Select whether to output the standard output of executed commands to the log.

Output the standard error output

Select whether to output the standard error output of executed commands to the log.

Sets the output to the standard error output.

Output the executed command line

Select whether to output the executed command line to the standard error output.

Output the standard output

Select whether to output the standard output of the executed command to the standard error output.

Output the standard error output

Select whether to output the standard error output of the executed command to the standard error output.

Enter the command line to run.

Enter an environment variable to be used for command line execution in the environment-variable-name=environment-variable-value format. When specifying multiple variables, enter a line break for each one.

Configure settings for output to the service linkage job log file. For details about service linkage job log, see 9.2.6 Service Linkage Job Log.

Output the executed command line

Select whether to output the executed command line to the log.

Output the standard output

Select whether to output the standard output of executed commands to the log.

Output the standard error output

Select whether to output the standard error output of executed commands to the log.

Sets the output to the standard error output.

Output the executed command line

Select whether to output the executed command line to the standard error output.

Output the standard output

Select whether to output the standard output of the executed command to the standard error output.

Output the standard error output

Select whether to output the standard error output of the executed command to the standard error output.
