6.6.1 Output definition file dialog box

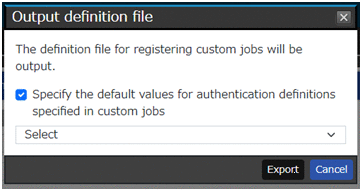

This section explains about the Output definition file dialog box.
|
|
![[Figure]](GRAPHICS/ZU060050.GIF)
The following shows the display items and input restrictions for the Output definition file dialog box:
- Specify the default values for authentication definitions specified in custom jobs
-
Selecting this item outputs the authentication definition name selected from the pull-down menu as the default value of the authentication definition of the custom job.
- Export button
-
Clicking this button outputs the service linkage job definition information file (sljobdef.txt) for registering custom jobs. Do not change the output content of the service linkage job definition information file. Note that depending on the editor software, the character code, line break code, and existence of BOM might change simply by resaving the file.
If the content of the file is invalid, for example, when a BOM is assigned, the KNBB4511-E error occurs when executing the ajscsajobreg command for custom job registration, and the processing fails.
- Cancel button
-
Close the dialog box without doing anything.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Specify the default values for authentication definitions specified in custom jobs
List box
Specify the registered authentication definition.
Required#
None
#: In case of specifying a default value of the authentication definition.
