6.6 Service linkage job definition window

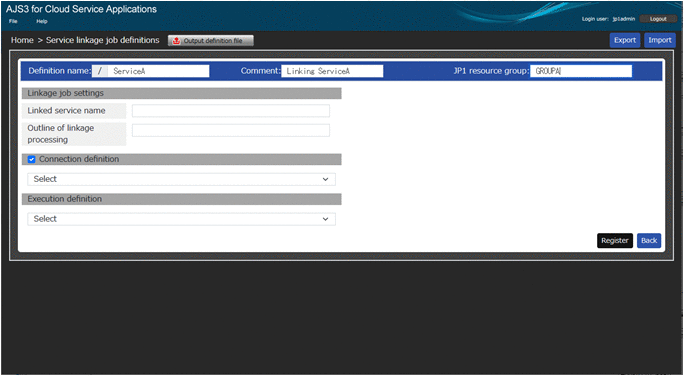

In the Service linkage job definition window, you can view and edit service linkage job definitions in detail.
|
|
![[Figure]](GRAPHICS/ZU060040.GIF)
The following shows the display items and input restrictions for the Service linkage job definition window:
- Definition name
-
Enter the definition name of the service linkage job information. It is saved in the format of /definition-name. It cannot be changed when editing.
- Comment
-
Display the comment of the service linkage job information.
- JP1 resource group
-
Display the JP1 resource group of the service linkage job information.
- Linkage job settings
-
Set linkage information of a service linkage job information.
- Linked service name
-
Enter a linkage-destination service name to be linked by the service linkage job. This information can be managed as information that associates the cloud service after job execution. Therefore, complete this item whenever possible.
- Outline of linkage processing
-
Enter the overview of processing to be linked by the service linkage job. This information can be managed as information that associates the executed processing of the cloud service after job execution. Therefore, complete this item whenever possible.
- Connection definition
-
Use this item to show whether or not to use connection definitions for the service linkage job. With this item selected, the drop-down list allows you to select a connection definition. Without this item selected, no drop-down list is displayed.
- Execution definition
-
Select an execution definition to use for the service linkage job from the drop-down list.
- Output definition file button
-
This button displays the Output definition file dialog to output a service linkage job definition information file necessary for registration with JP1/AJS3 -View. For details, see 6.6.1 Output definition file dialog box.
- Export button
-
Clicking this button outputs the service linkage job information being displayed as the service linkage job definitions file (sljobdefExport.txt). This file will be output to the download folder set by the Web browser.
For details about a service linkage job definitions file, see F.3 Service linkage definition file.
- Note
-
Even during input of service linkage job definitions, a service linkage job definition file can be exported.
- Import button
-
Click this button to display the Open dialog allowing you to select a service linkage job definition file to be reflected to the screen. Select a service linkage job definition file. It will be reflected on the Service linkage job definitions screen.
For details about the format of a service linkage job definitions file, see F.3 Service linkage definition file.
- Note
-
Even during input of service linkage job definitions, the service linkage job definition file can be imported.
- Register button
-
Click this button to register the service linkage job definitions, which have been input on the Service linkage job definitions screen with JP1/AJS3 for Cloud Service Applications. When registration is successfully completed, the Home window is displayed. If an error occurs, the item with the error is highlighted.
- Back button
-
Go to the Home window without doing anything.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Definition name
Text box
Character string of 1 to 30 bytes.
Single-byte alphanumeric characters, - (hyphen), and _ (underscore) are available.
Required
None
2
Comment
Text box
Character string within 243 bytes.
Not required
None
3
JP1 resource group
Text box
Character string within 63 bytes.
Single-byte alphanumeric characters and _ (underscores) are available.
Not required
JP1_CSA
4
Linked service name
Text box
Character string within 150 bytes.
Not required
None
5
Outline of linkage processing
Text box
Character string within 243 bytes.
Not required
None
6
Connection definition
List box
Specify the registered connection definition.
Required#
None
7
Execution definition
List box
Specify the registered execution definition.
Required
None
#: In case of using a connection definition.
