1.6.35 Add/Edit Sort Condition Dialog
In the Add/Edit Sort Condition dialog, specify sort conditions by adding keys to Sort conditions in the Loop Node dialog. You also edit the sort conditions specified for keys.
The Add/Edit Sort Condition dialog opens when you click Add or Edit in the Loop Node dialog.

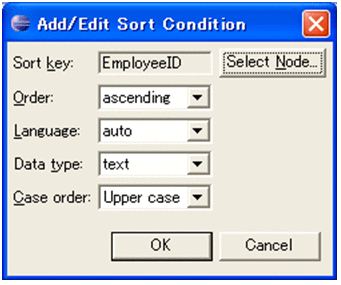

The following figure shows the Add/Edit Sort Condition dialog.
|
|
![[Figure]](GRAPHICS/ZS018600.GIF)
- Organization of this subsection
(1) Displayed items
- Sort key
-
Specify a source node that becomes the source of the instances that are to be sorted.
- Select Node button
-
The Node Selection dialog opens. Click this button to specify in Sort key a source node that becomes the source of the instances that are to be sorted.
For details about the Select Node dialog, see 1.6.8 Select Node Dialog (Data Transformation).
- Order
-
Choose the order in which to sort the instances. The displayed orders are as follows:
-
ascending
-
descending
-
- Language
-
Choose a language to be used for sorting the instances. The displayed languages are as follows:
-
ja
-
en
-
Automatic
If auto is selected, the language code corresponding to the system locale specified as the default is specified.
-
- Data type
-
Choose a data type to be used for sorting the instances. The displayed data types are as follows:
-
Text
-
Number
-
- Case order
-
Choose the priority order for sorting the instances when Data type is text. Select when Data Type is Text. The displayed priorities are as follows:
-
Upper case
-
Lower case
-
- OK button
-
Commits the specified contents and closes the dialog.
- Cancel button
-
Cancels the specified contents and closes the dialog.
(2) Operations that can be performed in this dialog
In the Add/Edit Sort Condition dialog, you can specify sort conditions for the loop node function. For details about how to set up node conditions for the loop node function, see the description for processing values using functions in the manual Service Platform Basic Development Guide.
