1.6.32 Acquire Node Count Dialog

In the [Acquire Node Count] dialog, specify the node set whose node count is to be acquired.

This dialog opens when you perform one of the following operations:

Right-click the acquire node count function, and select [Setting]
Double-click the acquire node count function

The following figure shows the [Acquire Node Count] dialog:

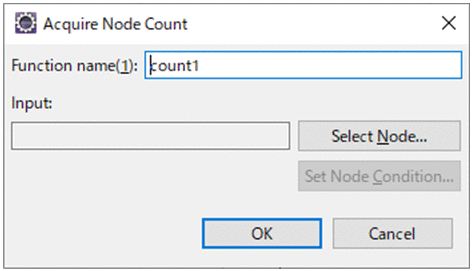

Figure 1‒133: [Acquire Node Count] dialog

Organization of this subsection

(1) Displayed items
(2) Operations that can be performed in this dialog

(1) Displayed items

[Function name]

Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input]

Specify the node set whose node count is to be acquired. If a node set is already mapped to the acquire node count function, that node set is displayed.

For details about the display format in [Input], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

Displays the [Select Node] dialog. Click this button to specify in [Input] the node set whose node count is to be acquired.

For details about the [Select Node] dialog, see "1.6.8 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the node and allow only mapping to take place only when that condition is satisfied.

For details about the [Set Node Condition] dialog, "1.6.11 Set Node Condition Dialog". For details about how to set up conditions for transformation source nodes, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[OK] button

Commits the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

To Page Top

(2) Operations that can be performed in this dialog

You can set up the acquire node count function with the [Acquire Node Count] dialog. For details about how to set up the acquire node count function, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
