1.6.15 Settings for Duplicate Mapping Source dialog
In the Settings for Duplicate Mapping Source dialog, specify the node (transformation-source node) that acts as the copy destination de) while copying the mapping definitions.
The Settings for Duplicate Mapping Source dialog appears, when you right-click a complex content element in the transformation-destination schema tree viewer of the Data Transformation Definition window, and then select Duplicate mapping.

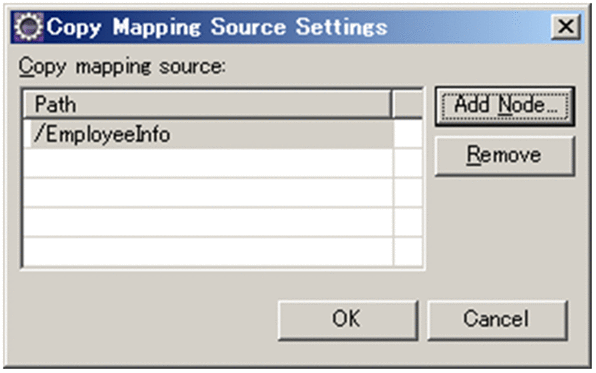

The following figure shows the Settings for Duplicate Mapping Source dialog:
|
|
![[Figure]](GRAPHICS/ZS017150.GIF)
- Organization of this subsection
(1) Display items
- Path
-
Specify the node (transformation-source node) that acts as the copy destination while copying the mapping definitions.
For details about the display format in Path, see the contents related to the display format of the mapping source in the manual Service Platform Basic Development Guide.
- Add node button
-
Displays the Select Node dialog. Click to add a node (transformation-source node) in Path.
For details about the Select Node dialog, see 1.6.8 Select Node Dialog (Data Transformation).
- Remove button
-
Deletes the node selected in Path (transformation-source node) from Path.
- OK button
-
Enables the specified contents, and then closes the dialog.
- Cancel button
-
Disables the specified contents, and then closes the dialog.
(2) Operations that can be performed in this dialog
In the Settings for Duplicate Mapping Source dialog, you can set up the node (transformation-source node) that acts as the copy destination while copying the mapping definitions. For details about copying the mapping definitions, see the manual Service Platform Basic Development Guide.
