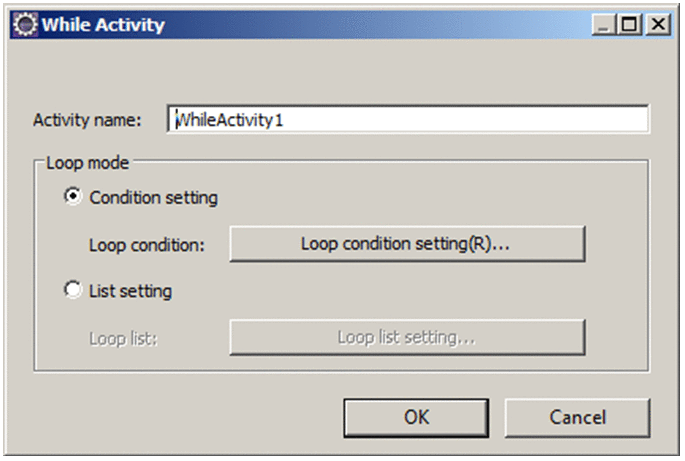

1.4.19 While Activity Dialog
You use this dialog for defining while activity details.
This dialog opens when you perform one of the following operations:
-
Double-click a while activity.
-
Select and right-click a while activity on the canvas, and choose Setting.
For details about how to define while activity, see the description of the while activity in the manual Service Platform Basic Development Guide.
|
|
![[Figure]](GRAPHICS/ZS015700.GIF)
- Activity name
-
Specify an activity name. You can use the NCName definition characters of XMLSchema. Make sure that the activity name is unique within a business process (and includes a scope).
- Loop mode
-
- Condition setting
-
Click the Loop condition setting button to open the Loop condition setting dialog box, and then specify the loop condition. For details about this dialog box, see 1.4.21 Repeat condition setting dialog.
- List setting
-
Click the Loop list setting button to open the Loop list setting dialog box, and then select the list to be looped. For details about this dialog box, see 1.4.20 Repeat list setting dialog.
- OK button
-
Saves the defined contents and closes the dialog.
- Cancel button
-
Closes the dialog without saving the defined contents.
