1.4.21 Repeat condition setting dialog

You use this dialog for defining the condition for using a while activity to specify loop processing.

This dialog is displayed when you click the [Repeat condition setting] button in [While activity] dialog.

For details about how to define while activity see "5.6.13 While activity" in "Service Platform Basic Development Guide".

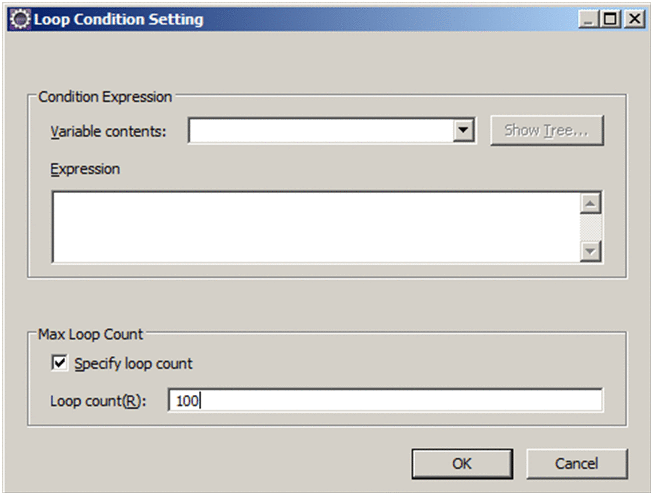

Figure 1‒87:  [Repeat condition setting] dialog (While Activity)

[Condition format]

[Display variable]

Select variable from the drop down list when setting a formula, in which variables are used in condition. The dropdown list displays only available variables, from among the variables of message format (XML) defines in the [List Of Variables And Correlation Sets] dialog.

[Display] button

Displays the [View variable] dialog. In the [View variable] dialog, you can check the message type (XML) variable contents specified in the [View variable] dialog.

For details about [Showing variable] dialog, see "1.4.4 Showing Variable Dialog".

[Format]

Specify a condition format of a loop condition in XPath. Inside the XPath expression, you can use the extension function to acquire and utilize the information inside a variable. For details about how to use the extension function, see the manual Service Platform Basic Development Guide.

[Max loop count]

Use the following items to specify the maximum loop count in the while activity:

[Specify] checkbox

Select to specify the maximum loop count.

If you do not select the checkbox, the maximum loop count can go up to 2,147,483,647 times.

[Count]

Specify the maximum value of the loop count in one-byte numeric characters. You can set a value in integers from 1 to 2,147,483,647.

[OK] button

Reflects the defined contents to the [While activity] dialog and closes the dialog.

[Cancel] button

Closes the dialog without reflecting the defined contents to [While activity] dialog.
