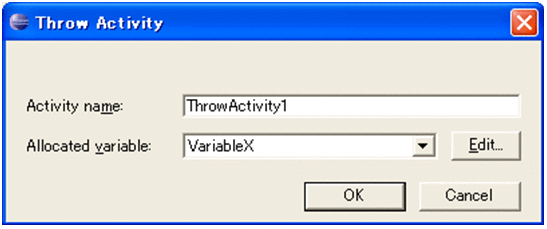

1.4.15 Throw Activity Dialog
You use this dialog for defining throw activity details.
This dialog opens when you perform one of the following operations:
-
Double-click a throw activity on the canvas.
-
Select and right-click a throw activity on the canvas, and choose Setting.
For details about how to define throw activity, see the description of the throw activity in the manual Service Platform Basic Development Guide.
|
|
![[Figure]](GRAPHICS/ZS015500.GIF)
- Activity name
-
Specify an activity name. You can use the NCName definition characters of XMLSchema. Specify an activity name that is unique inside a business process or scope.
- Allocated variable
-
From the drop-down list, select the variable to be allocated to the fault to be thrown to a higher-order scope or business process. The drop-down list shows only the variables that can be used of those defined in the List Of Variables And Correlation Sets dialog.
- Edit button
-
The Variable-Correlation Set dialog opens. Click this button to edit the contents of the variable specified in Allocated variable.
For details about the List Of Variables And Correlation Sets dialog, see 1.4.1 List Of Variables And Correlation Sets Dialog.
- OK button
-
Saves the defined contents and closes the dialog.
- Cancel button
-
Closes the dialog without saving the defined contents.
