1.3.8 Select Separator Dialog

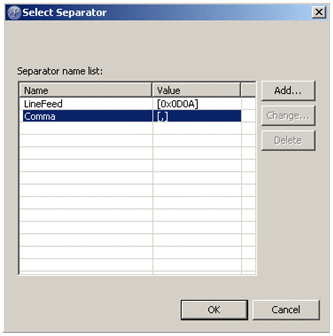

The Select Separator dialog is used to select separators that are specified as start separator, intervening separator, and end separators of a complex content element.
This dialog is displayed when you click the Select button present in the specification column of each separator in the Complex Content Element dialog (Separator tab).
|
|
![[Figure]](GRAPHICS/ZS013900.GIF)
- Information
-
If there is a problem in the information that is entered in the Select Separator dialog, a message indicating the problem is displayed in the title bar of the dialog. For details about displayed messages and measures to be taken, see the description for validating binary format definition files in the manual Service Platform Basic Development Guide.
- Separator name list
-
- Name
-
Displays the name of a defined separator.
- Value
-
Displays the value of a defined separator. The value of the separator is enclosed within [ ].
- Add button
-
Used when you want to add new characters as separators. The Add or Change Separator dialog is displayed.
- Change button
-
Used when you want to change the name or value of an already defined separator. When you select a separator for changing the information from the Separator name list, and then click it, the Add or Change Separator dialog is displayed.
Note that you cannot change the information of the following separators:
-
LineFeed and Comma (separators that are initially specified)
-
A separator that is already specified as another separator in the same complex content element
-
- Delete button
-
Used when you want to delete an already defined separator. When you select a separator from the Separator name list that you want to delete, and then click it, the selected separator is deleted.
Note that you cannot delete the following separators:
-
LineFeed and Comma (separators that are initially specified)
-
A separator that is already specified as another separator in the same complex content element
-
- OK button
-
Commits the specified contents and closes the Select Separator dialog.
- Cancel button
-
Closes the Select Separator dialog without committing the specified contents.
