1.3.7 Select Element Dialog
Use the Select Element dialog to select the globally defined element to be specified as a component.
For details about operating procedures, see the description for component settings in the manual Service Platform Basic Development Guide.
|
|

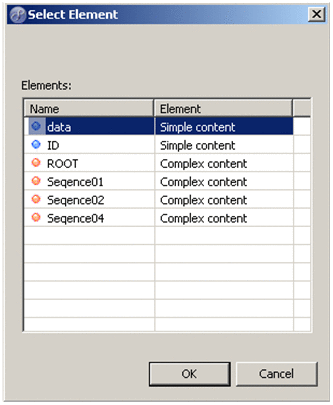

![[Figure]](GRAPHICS/ZS013800.GIF)
- Information
-
If there is a problem in the information that is entered in the Select Element dialog, a message indicating the problem is displayed in the title bar of the dialog. For details about displayed messages and measures to be taken, see the description for validating binary format definition files in the manual Service Platform Basic Development Guide.
- Elements
-
Select the element to be specified as the component.
- Name
-
Displays globally defined elements that can be specified as components.
- Element
-
Simple content and Complex content are displayed for a simple content element and a complex content element, respectively.
- OK button
-
Commits the specified contents and closes the Select Element dialog.
- Cancel button
-
Closes the Select Element dialog without committing the specified contents.
