1.2.6 HCSC Component Information Display Window

This subsection explains the HCSC Component Information Display window, which you use for displaying HCSC component information.

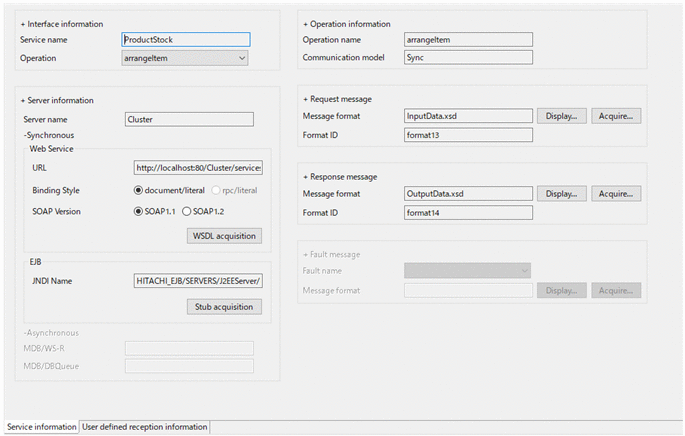

Figure 1‒36: HCSC Component Information Display window

Organization of this subsection

(1) Interface information
(2) Server information
(3) Operation information
(4) Request message
(5) Response message
(6) Fault message

(1) Interface information

The items on the palette are shown in the following figure and explained below.

Service name: Displays the name of the HCSC component selected from the published services list in the tree view.
Operation: Displays the operation name of the HCSC component displayed in Service name. From the drop-down list, select the operation whose information is to be displayed.

To Page Top

(2) Server information

The items on the palette are shown in the following figure and explained below.

Server name

Displays the HCSC server that can invoke a service component. From the drop-down list, select the HCSC server whose information is to be displayed.

Web Service

Displays the receiving destination information of the Web Service of the HCSC server selected in Server name. A URL is displayed as the destination information. Select the WSDL definition style (binding style) and the version of SOAP specifications (SOAP version) to be acquired.

Note that the displayed receiving address information (URL) is applicable only for SOAP1.1. For SOAP1.2, select the SOAP version, and then check the location of <soap12:address> of the acquired WSDL.

WSDL acquisition button

Opens the WSDL file saving dialog for acquiring the WSDL to be used by the Web Service.

EJB^#1

Displays the receiving destination information of the SessionBean of the HCSC server selected in Server name. A JNDI name is displayed as the destination information.

Stub acquisition button

Opens the stub file saving dialog for acquiring the RMI-IIOP stub file to be used by SessionBean.

MDB/WS-R^#2

Displays the receiving destination information of the MDB/WS-R of the HCSC server selected in Server name. A URL is displayed as the destination information.

MDB/DBQueue^#2

Displays the receiving destination information of the MDB/DBQueue of the HCSC server selected in Server name. A queue name is displayed as the destination information.

#1

If the cluster consists of HCSC servers that have different J2EE server names, information about only a specific HCSC server is displayed.

#2

When HCSC servers are in a load-balancing cluster configuration, asynchronous execution requests (MDB/WS-R or MDB/DBQueue) cannot be accepted via the load-balancing cluster. Asynchronous execution requests are accepted directly by individual HCSC servers.

Therefore, when the HCSC servers are in a load-balancing cluster configuration, the receiving destination information of the individual HCSC servers is displayed, delimited by commas (,).

To Page Top

(3) Operation information

Displays the information about the operation selected in Operation under Interface information.

Operation name: Displays the operation name selected in Operation under Interface information.
Communication model: Displays the communication model of the operation selected in Operation under Interface information. Sync or Async is displayed.

To Page Top

(4) Request message

Displays the information about the operation selected in Operation under Interface information.

Message format: Displays the format name of the standard request message.
Display button: Displays the contents of the request message displayed in Message format.
Output button: Displays the dialog for specifying the output destination of the request message displayed in Standard message format.
Format ID: Displays the format ID of the standard request message.

To Page Top

(5) Response message

Displays the information about the operation selected in Operation under Interface information.

Message format: Displays the format name of the standard response message.
Display button: Displays the contents of the response message displayed in Message format.
Output button: Displays the dialog for specifying the output destination of the response message displayed in Standard message format.
Format ID: Displays the format ID of the standard response message.

To Page Top

(6) Fault message

Displays the information about the operation selected in Operation under Interface information.

Fault name: Displays a fault name. From the drop-down list, select the fault name whose information is to be displayed.
Message format: Displays the format name of the message selected in Fault name.
Display button: Displays the contents of the message displayed in Message format.
Output button: Displays the dialog for specifying the output destination of the message displayed in Message format.
