1.2.5 User-Defined Reception Definition Window
This subsection explains definitions of receptions in the User-Defined Reception Definition window for each reception type.
For details about how to display the window and how to define receptions, see 2. Defining User-Defined Reception in the uCosminexus Service Platform Reception and Adapter Definition Guide.
- Organization of this subsection
(1) SOAP reception types
The following explains the SOAP reception definition information displayed in the User-Defined Reception Definition window.

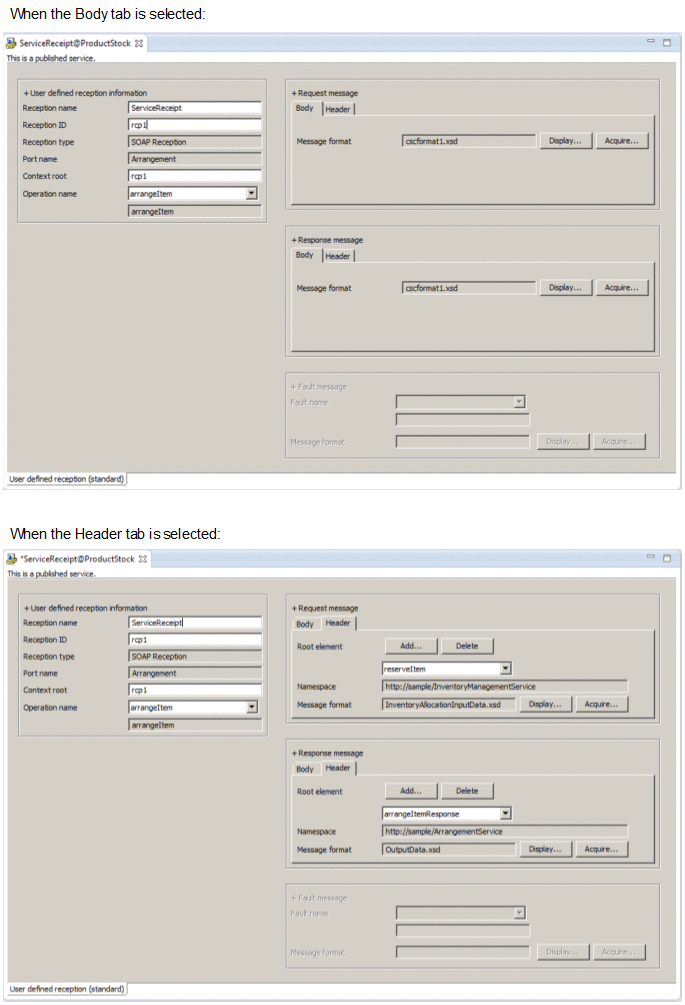

(a) Basic window for SOAP reception
The following explains the items of the basic window for SOAP reception.
- User defined reception information
-
- Reception name
-
Displays the reception name specified in the Add User-Defined Reception wizard when adding a user-defined reception. Use NCName definition characters of the XMLSchema to specify the reception name within 40 bytes. Specify a reception name that is unique within the business process.
- Reception ID
-
Displays the ID provided when a user-defined reception is added. Use alphanumeric characters and underscores (_) to specify a reception ID within 8 bytes. Specify a reception ID that is unique within the repository.
- Reception type
-
Displays SOAP Reception as the reception type. You cannot change the reception type.
- Port name
-
Displays the port name selected in Port specification of the wizard for adding a user-defined reception.
- Context root
-
Displays the context root name. Note the following points when specifying a context root name:
-
Specify alphanumeric characters and any of the following symbols:
/ @ + - $ _ . ! ' ( ) % ~
-
Specify a name that is unique within the repository.
-
Specify a name conforming to the specifications of Application Server. If you specify the following values, an error will occur, when deploying.
A delimiter (/) is specified at the beginning or end.
(Example) /rcp, rcp/sub/
Multiple delimiters (/) are specified.
(Example) rcp//sub
The absolute path is specified.
(Example) rcp/./sub/..
A percentage (%) is specified with a purpose other than percentage encoding.
(Example) rcp%
-
Do not specify an HCSC server name, a service ID of the service adapter (Web Service) deployed in the HCSC server, and a value of the context root used in Reliable Messaging.
-
- Operation name
-
Displays an operation name. The operation name defined in the user-defined reception can be selected from the drop-down list.
- Request message
-
• Body tab
- Message format
-
Displays the message format name of the request message. The message format is generated automatiinvokey from the WSDL.
- Display button
-
Displays the message format of the request message.
- Output button
-
Displays the dialog for specifying the output destination of the message format of the request message.
• Header tab
- Root element
-
Displays the root element. If the request message does not contain header information, nothing is displayed for this item. Root elements displayed in the drop-down list can be added and deleted by using the Add and Delete buttons.
-
Add button
Opens the dialog box for specifying a message format. After the message format is specified, the root element contained in that message format can be added.
-
Delete button
Deletes the root element displayed in the Root element text box.
-
- Namespace
-
Displays the namespace of the root element displayed in the Root element text box. If the request message does not contain header information, nothing is displayed for this item.
- Message format
-
Displays the message format name that contains the root element displayed in the Root element text box. If the request message does not contain header information, nothing is displayed for this item.
- Display button
-
Displays the header information for the request message.
- Output button
-
Displays the dialog box for specifying the output destination of the header information for the request message.
- Response message
-
• Body tab
- Message format
-
Displays the message format name of the response message. The message format is generated automatiinvokey from the WSDL.
- Display button
-
Displays the message format of the response message.
- Output button
-
Displays the dialog for specifying the output destination of the message format of the response message.
• Header tab
- Root element
-
Displays the root element. If the response message does not contain header information, nothing is displayed for this item. Root elements displayed in the drop-down list can be added and deleted by using the Add and Delete buttons.
-
Add button
Opens the dialog box for specifying a message format. After the message format is specified, the root element contained in that message format can be added.
-
Delete button
Deletes the root element displayed in the Root element text box.
-
- Namespace
-
Displays the namespace of the root element displayed in the Root element text box. If the response message does not contain header information, nothing is displayed for this item.
- Message format
-
Displays the message format name that contains the root element displayed in the Root element text box. If the response message does not contain header information, nothing is displayed for this item.
- Display button
-
Displays the header information for the response message.
- Output button
-
Displays the dialog box for specifying the output destination of the header information for the response message.
- Fault message
-
- Fault name
-
Displays the fault name of the user-defined reception.
- Message format
-
Displays the format name of the fault message. The message format is generated automatiinvokey from the WSDL.
- Display button
-
Displays the format of a fault message.
- Output button
-
Displays the dialog for specifying the output destination of the fault message format.

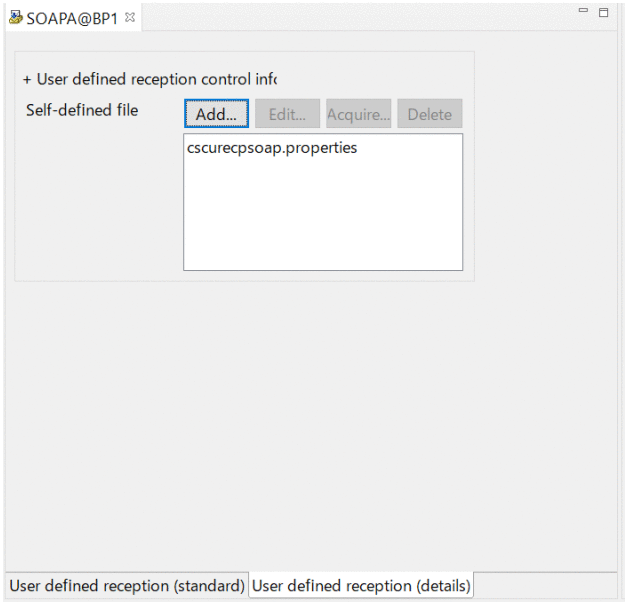

(b) Details window for SOAP reception
The following explains the items of the details window for SOAP reception. This window is used in SOAP1.1/1.2 combined mode only.
- User-defined reception control information
-
Displays the names of self-defined files.
- Self-defined file
-
Displays self-defined files.
You can add, edit, and delete self-defined files and specify the output destination by using the following buttons:
Add button
Opens the dialog box for adding self-defined files.
Edit button
Starts the editor for editing a self-defined file. If you select multiple self-defined files and then click the Edit button, editors are started for all the selected self-defined files. After the self-defined files are saved on the editor, you need to save the user-defined reception to apply the edited information to the repository. If you attempt to save the user-defined reception while editing a self-defined file, a confirmation dialog box appears, asking you whether you want to save the self-defined file.
Output button
Opens the dialog box for specifying the output destination of the self-defined file.
Delete button
Deletes the file selected in the Self-defined file field.
(2) TP1/RPC, FTP, HTTP, Message Queue, file event, and custom reception types
The following explains the items displayed in the window for the following reception types:
-
TP1/RPC reception
-
FTP reception
-
HTTP reception
-
Message Queue reception
-
File event reception
-
Custom reception

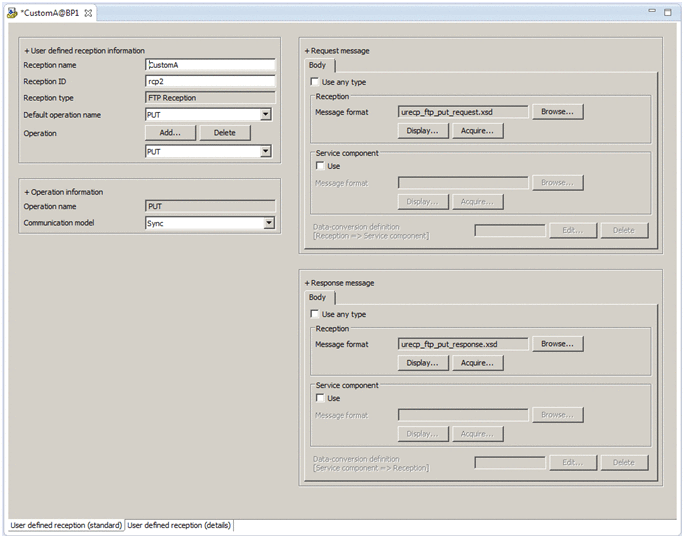

(a) Basic window for TP1/RPC reception, FTP reception, HTTP reception, Message Queue reception, file event reception, and custom reception
The following explains the items of the basic window for TP1/RPC reception, FTP reception, HTTP reception, Message Queue reception, file event reception, and custom reception.
- User defined reception information
-
- Reception name
-
Displays the reception name. You can specify a reception name by using 40 or fewer bytes. For the user-defined reception (invocation target selected), the reception name must be unique within the repository. For any other reception, the reception name must be unique within the business process.
- Reception ID
-
Displays the reception ID. You can specify a reception ID by using 8 or fewer bytes of alphanumeric characters and underscores (_).
- Reception type
-
Displays one of the reception types shown below. You cannot change the reception type.
-
TP1/RPC reception
-
FTP reception
-
HTTP reception
-
Message Queue reception
-
File event reception
-
Custom reception
-
- Default operation name
-
Displays the name of the operation that is invoked by default. From the drop-down list, you can select the operation that is invoked by default.
- Operation
-
Displays an operation name. From the drop-down list, you can select an operation name defined for the reception.
-
Add button
Opens the dialog box for adding an operation.
-
Delete button
Deletes the operation selected in the Operation text box.
-
- Operation information
-
Displays information about the operation of a service component.
- Operation name
-
Displays the operation name selected in the Operation text box under User defined reception information.
- Communication model
-
Displays the communication model of the operation. You can select Sync or Async from the drop-down list. For TP1/RPC reception and FTP reception, you need to select Sync.
- Request message
-
Displays information about a request message that the reception receives from a service requester.
- Use any type check box
-
Select this check box to create a user-defined reception without specifying a data type.
- Reception
-
-
Message format
Displays the format name of a request message that the reception receives from a service requester. The displayed message format depends on the reception type as follows:
- TP1/RPC reception: fdx file
- FTP reception or file event reception: xsd file
- Other than the above: fdx file or xsd file
You can change the message format.
-
Browse button
Displays the dialog box for setting the format of the request message.
-
Display button
Displays the request message format.
-
Output button
Displays the dialog box for specifying the output destination of the request message format.
-
- Service component
-
-
Use check box
Select this check box to convert data in the request message that the reception sends to a business process. For TP1/RPC reception, you need to select this check box.
-
Message format
Displays the format name of a request message that the reception sends to a business process. The displayed message is in xsd file format.
You can change the message format.
-
Browse button
Displays the dialog box for specifying the format of a request message.
-
Display button
Displays the request message format.
-
Output button
Displays the dialog box for specifying the output destination of the request message format.
-
- Data-conversion definition
-
Displays the definition file name used for converting data in the request message. For TP1/RPC reception, you need to specify the definition file for data conversion.
-
Edit button
Displays the Data Transformation Definition window. You can edit the contents of the definition file specified in the Data-conversion definition text box. For the initial definition, the Select Root Element dialog box appears. If you have changed the message format, a confirmation dialog box for applying the changes in the message format appears.
-
Delete button
Deletes the data conversion definition specified with the Edit button.
-
- Response message
-
Displays information about a response message that the reception returns to a service requester. This information can be specified only when Sync is selected in the Communication model box under Operation information.
- Use any type check box
-
Select this check box to create a user-defined reception without specifying a data type.
- Reception
-
-
Message format
Displays the format name of a response message that the reception returns to a service requester. The displayed message format depends on the reception type as follows:
- TP1/RPC reception: fdx file
- FTP reception or file event reception: xsd file
- Other than the above: fdx file or xsd file
You can change the message format.
-
Browse button
Displays the dialog box for specifying the format of a response message.
-
Display button
Displays the response message format.
-
Output button
Displays the dialog box for specifying the output destination of the response message format.
-
- Service component
-
-
Use check box
Select this check box to convert the data of a response message that the reception receives from a business process. For TP1/RPC reception, you need to select this check box.
-
Message format
Displays the format name of a response message that the reception receives from a business process. The displayed message is in xsd file format.
You can change the message format.
-
Browse button
Displays the dialog box for specifying the format of a response message.
-
Display button
Displays the response message format.
-
Output button
Displays the dialog box for specifying the output destination of the request message format.
-
- Data-conversion definition
-
Displays the definition file name used for converting response message data. For TP1/RPC reception, you need to specify a definition file for data conversion.
-
Edit button
Displays the Data Transformation Definition window. You can edit the contents of the definition file specified in the Data-conversion definition text box. For the initial definition, the Select Root Element dialog box appears. If you have changed the message format, a confirmation dialog box for applying the changes in the message format appears.
-
Delete button
Deletes the data conversion definition specified with the Edit button.
-

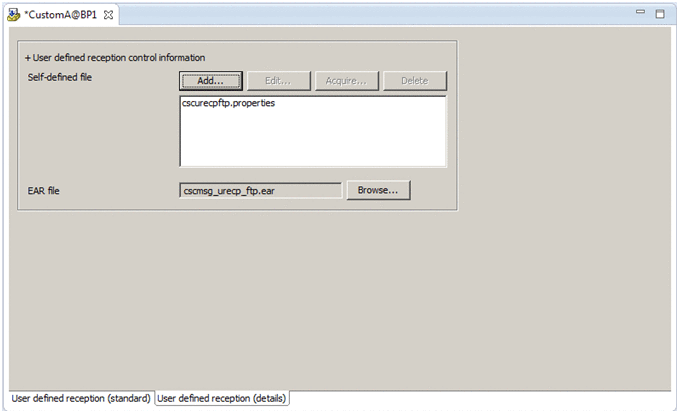

(b) Details window for TP1/RPC reception, FTP reception, HTTP reception, Message Queue reception, file event reception, and custom reception
The following explains the items of the details window for TP1/RPC reception, FTP reception, HTTP reception, Message Queue reception, file event reception, and custom reception.
- User defined reception control information
-
Displays the names of the self-defined file and EAR file.
- Self-defined file
-
Displays the self-defined file, which is specified depending on the reception type as follows:
Reception type
Self-defined file
TP1/RPC reception
TP1/RPC reception definition file
FTP reception
FTP reception definition file
HTTP reception
HTTP reception definition file
HTTP Response Header definition file
HTTP-reception service-selection definition file (for user-defined reception (invocation target selected))
Message Queue reception
Message Queue reception definition file
File event reception
File-event-reception definition file
Other than above
Custom reception user file
You can add, edit, and delete the self-defined file and change its output destination by using the following buttons:
-
Add button
Opens the dialog box for adding self-defined files.
-
Edit button
Starts the editor for editing a self-defined file. If you select multiple self-defined files and then click the Edit button, editors are started for all the selected self-defined files. After self-defined files are saved on the editor, you need to save the user-defined reception to apply the edited information to the repository. If you attempt to save the user-defined reception while editing a self-defined file, a confirmation dialog box appears, asking whether you want to save the self-defined file.
-
Output button
Displays the dialog box for specifying the output destination of the self-defined file.
-
Delete button
Deletes the file selected in the Self-defined file text box.
-
- EAR file
-
Displays the name of the EAR file set by using the Browse button.
-
Browse button
Displays the dialog box for setting the EAR file to be imported.
-
