1.2.7 User-Defined Reception Information Display Window

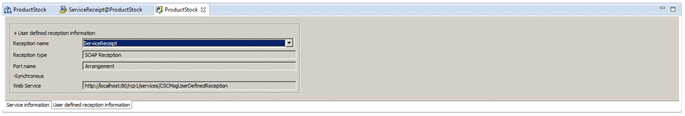

This subsection explains the User-Defined Reception Information Display window that displays the definition information of a user-defined reception after packaging.
|
|
![[Figure]](GRAPHICS/ZS012300.GIF)
- User defined reception information
-
- Reception name
-
Displays the reception name specified in the Add User-Defined Reception wizard when adding a user-defined reception.
- Reception type
-
Displays the reception type specified in the Add User-Defined Reception wizard.
- Port name
-
Displays the port name specified in the Add User-Defined Reception wizard when adding a user-defined reception.
- Synchronous
-
The information is not displayed.
- Web Service
-
Displays the URL to be set in the service location value of the WSDL (value set in the location attribute of the soap-address element in the wsdl:port element).
Before creating a service requester, edit the WSDL and set a value displayed in this item as the value of the service location.
For details about editing the WSDL, see the manual Service Platform Basic Development Guide.
