H.4 Repository migration procedure in the operating environment during rolling update
Rolling update is an update installation that is performed without fully stopping the system.
Rolling update requires two or more HCSC servers that make up a load-balancing cluster.

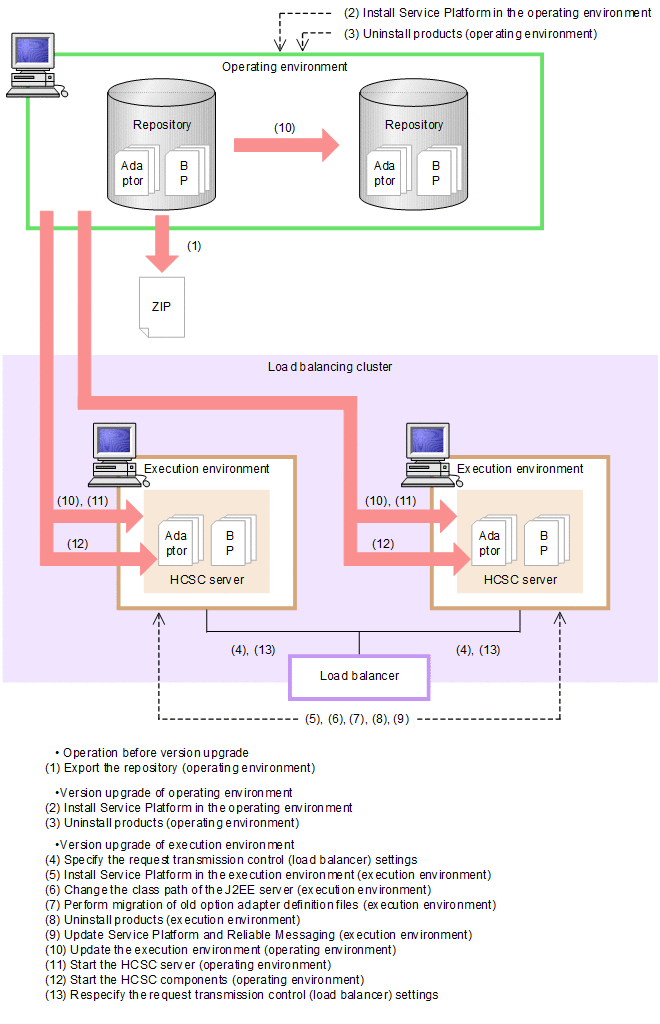

Update Service Platform from the old version to the new version (11-00), following the steps in the below figure ((1) Export the repository (operating environment) to (13) Respecify the request transmission control (load balancer) settings).
|
|
![[Figure]](GRAPHICS/ZC990700.GIF)
The steps in Figure H-3 ((1) Export the repository (operating environment) to (13) Respecify the request transmission control (load balancer) settings are described below. The tasks to be performed for the second and following HCSC servers (in the execution environment) are also described below.
For details about the commands used in these steps, see Chapter 5. Commands (Operating and Execution Environments) in the uCosminexus Service Platform Reference Guide.
- Important note
-
You cannot perform the following operations in the old system until rolling update finishes:
-
Use the cscsvsetup command to set up a new HCSC server.
-
Use the csccompodeploy command to deploy a new HCSC component.
-
- Organization of this subsection
-
-
(4) Specify the request transmission control (load balancer) settings
-
(5) Install Service Platform in the execution environment (execution environment)
-
(6) Change the class path of the J2EE server (execution environment)
-
(7) Perform migration of old option adapter definition files (execution environment)
-
(9) Update Service Platform and Reliable Messaging (execution environment)
-
(10) Update the execution environment (operating environment)
-
(13) Respecify the request transmission control (load balancer) settings
-
(14) Perform tasks on the HCSC servers other than the first HCSC server (execution environment)
(1) Export the repository (operating environment)
Before you update the version, in the operating environment, export the repository as a backup. If there are multiple repositories, export all necessary repositories as backups.
In the operating environment, execute the cscrepctl command (with the -export option) to export the repository (or repositories).
For details about how to export a repository, see 4.2 Exporting Repository Information.
(2) Install Service Platform in the operating environment
In the operating environment, install Service Platform 11-00 to update the version. You can install Service Platform as a new installation or an update installation.
- To install Service Platform as a new installation:
-
Perform (2) Delete HCSC components (operating environment) to (5) Install Service Platform in each environment in H.2 Repository migration procedure in the operating environment during a new installation.
- To install Service Platform as an update installation:
-
Perform (1) Perform update installation in each environment in H.3 Repository migration procedure in the operating environment during update installation.
- Note
-
If the J2EE server, Management Server, PRF, and other components that make up the Service Platform execution environment are running in the environment in which you update-install Service Platform, stop all of them, and then start update installation.
The prerequisites for installation are as follows.
- Prerequisites:
-
-
HCSC servers have been set up.
-
Service Platform and Reliable Messaging are not running.
-
The embedded database (if used) is not running.
-
The HCSC server, J2EE server, and HCSC components are not running.
-
(3) Uninstall products (operating environment)
The products listed below come with Service Platform 09-00 or later. If you update Service Platform from a version earlier than 09-00 and any of these products have already been installed, we recommend that you uninstall them.
-
Service Adapter for Flat Files
-
Service Adapter Architect for Flat Files
-
Service Adapter for FTP
-
Service Adapter Architect for FTP
-
Service Adapter for Message Queue
-
Service Adapter Architect for Message Queue
-
Service Adapter for Object Access
-
Service Adapter Architect for Object Access
-
Service Adapter for TP1
-
Service Adapter Architect for TP1
-
Code Conversion - Development Kit
-
Code Conversion - Server Runtime
-
Code Conversion - Runtime
-
TP1/Client/J
(4) Specify the request transmission control (load balancer) settings
Specify the load balancer settings so that requests are not sent to the HCSC server being updated. Before doing this, make sure that there no requests are being sent. How to specify the load balancer settings differs depending on the specifications of the load balancer you are using.
(5) Install Service Platform in the execution environment (execution environment)
In the execution environment, install Service Platform 11-00 to update the version.
You can install Service Platform as a new installation or an update installation in the execution environment.
- To install Service Platform as a new installation:
-
Perform (2) Delete HCSC components (operating environment) to (6) Set up an HCSC server (operating environment) in H.2 Repository migration procedure in the operating environment during a new installation.
- To install Service Platform as an update installation:
-
Perform (1) Perform update installation in each environment in H.3 Repository migration procedure in the operating environment during update installation.
(6) Change the class path of the J2EE server (execution environment)
If the version to be updated is earlier than 09-00 and the option definition file for the J2EE server (usrconf.cfg) contains the entries listed below, delete all of them. When you change the definition, we recommend that you use Smart Composer functionality or management portal.
-
add.class.path=TP1-adapter-installation-directory\lib\adptp1rt.jar
-
add.class.path=file-adapter-installation-directory\lib\adpffrt.jar
-
add.class.path=Object-Access-adapter-installation-directory\lib\adpoart.jar
-
add.class.path=Object-Access-adapter-installation-directory\usrlib\adpoaow.jar
-
add.class.path=Message-Queue-adapter-installation-directory\lib\adpmqrt.jar
-
add.class.path=FTP-adapter-installation-directory\lib\adpftprt.jar
-
add.class.path=FTP-adapter-installation-directory\lib\ftp_common.jar
-
add.class.path=code-conversion-library-installation-directory\java\codeconv.jar
-
add.class.path=TP1/Client/J-installation-directory\LIB\TP1Client.jar
(7) Perform migration of old option adapter definition files (execution environment)
Migration of the option adapters that were used in a version earlier than 09-00 requires the tasks described below.
(a) Migration of the TP1 adapter definition files
Copy the TP1 adapter execution-environment property files. The files to be copied and the copy destination directory are as follows:
Files to be copied: TP1-adapter-installation-directory\config\*.properties
Copy destination: Service-Platform-installation-directory\CSC\custom-adapter\TP1\config\
(b) Migration of the file adapter definition files
Copy the file adapter execution-environment property files. The files to be copied and the copy destination directory are as follows:
Files to be copied: file-adapter-installation-directory\config\*.properties
Copy destination: Service-Platform-installation-directory\CSC\custom-adapter\File\config\
(c) Migration of the Object Access adapter definition files
Copy the Object Access adapter execution-environment property files. The files to be copied and the copy destination directory are as follows:
Files to be copied: Object-Access-adapter-installation-directory\config\*.properties
Copy destination: Service-Platform-installation-directory\CSC\custom-adapter\OA\config\
(d) Migration of the Message Queue adapter definition files
Copy the Message Queue adapter execution-environment property files. The files to be copied and the copy destination directory are as follows:
Files to be copied: Message-Queue-adapter-installation-directory\config\*.properties
Copy destination: Service-Platform-installation-directory\CSC\custom-adapter\MQ\config\
(e) Migration of the FTP adapter definition files
Copy the FTP adapter command definition files and FTP adapter execution-environment property files. The files to be copied and the copy destination directory are as follows:
Files to be copied: FTP-adapter-installation-directory\config\*.properties
Copy destination: Service-Platform-installation-directory\CSC\custom-adapter\FTP\config\
(8) Uninstall products (execution environment)
The products listed below come with Service Platform 09-00 or later. If you update Service Platform from a version earlier than 09-00 and any of these products have already been installed, we recommend that you uninstall them.
-
Service Adapter for Flat Files
-
Service Adapter Architect for Flat Files
-
Service Adapter for FTP
-
Service Adapter Architect for FTP
-
Service Adapter for Message Queue
-
Service Adapter Architect for Message Queue
-
Service Adapter for Object Access
-
Service Adapter Architect for Object Access
-
Service Adapter for TP1
-
Service Adapter Architect for TP1
-
Code Conversion - Development Kit
-
Code Conversion - Server Runtime
-
Code Conversion - Runtime
-
TP1/Client/J
(9) Update Service Platform and Reliable Messaging (execution environment)
Update Service Platform and Reliable Messaging by using the following procedure, which is also required when the version to be updated is earlier than 09-00:
-
Execute the update command (mngenvupdate).
-
Add properties to mserver.properties (Management Server environment configuration file).
The properties to be added are shown below. If you start Management Server without adding these properties, commands whose names begin with csc might fail. For details about how to add properties, see 2.1.6(1) Setting mserver.properties (Management Server environment settings file).
ejbserver.naming.port ejbserver.server.edition.settingforce
(10) Update the execution environment (operating environment)
Update the version of the execution environment from the operating environment.
(a) Prerequisites
The execution environment can be updated when all of the following conditions are satisfied:
-
Management Server is running.
-
The embedded database (if used) is running.
-
The version of the repository is equal to or older than the version of the installation.
-
The version of the repository is 08-00 or later (but older than that of the installation).
If the prerequisites listed above are not satisfied, satisfy them in the order in which they are listed.
(b) How to update the version
Execute the cscenvupdate command to update the version of the repository and HCSC server.
cscenvupdate -csc name-of-the-HCSC-server-to-be-updated
(11) Start the HCSC server (operating environment)
Start the updated HCSC server.
(12) Start the HCSC components (operating environment)
Start the HCSC components that are deployed on the HCSC server whose version was updated in (10) Update the execution environment (operating environment).
(13) Respecify the request transmission control (load balancer) settings
Respecify the load balancer settings so that requests are sent to the updated HCSC server. How to specify the load balancer settings differs depending on the specifications of the load balancer you are using.
(14) Perform tasks on the HCSC servers other than the first HCSC server (execution environment)
On all HCSC servers that make up the load-balancing cluster, perform (4) Specify the request transmission control (load balancer) settings to (13) Respecify the request transmission control (load balancer) settings.
If you choose to convert the existing repository information before or after version update in the development environment, and to use the converted repository information with the new version, see Appendix A. Migrating from old version in the Service Platform Basic Development Guide.
(15) Notes on rolling update
The notes that apply to rolling update are the same as the notes that apply to update of the development environment, operating environment, and execution environment. For notes on rolling update, see G.4(15) Notes on rolling update.
