7.7.16 Troubleshooting when the JSON-XML transformation function is used for HTTP linkage
The service platform outputs the following types of failure information when the JSON-XML transformation function is used for the HTTP reception and the HTTP adapter:
-
Message log
-
Performance analysis trace
-
User message trace
The following describes the preceding log data and traces, including the collection mode, output format, and output destination.
- Organization of this subsection
(1) Message log
The messages that are output during operation of the JSON-XML transformation function used for the HTTP reception and HTTP adapter are output to the message log.
For details about the messages that are output to the message log, see 2.1 Messages from KDEC00001 to KDEC19999 in the manual Service Platform Messages.
For details about the output items and output destination for the message log data, see 7.4.1 Message log.
(2) Performance analysis trace
Before you can collect performance analysis traces, you must specify the necessary settings. For details about the necessary settings, see 7.3 Collecting the trace based performance analysis file by using Management Server in the Application Server Maintenance and Migration Guide.
(a) Output format
Performance analysis traces are output to files in the same format as the performance analysis traces for the J2EE server. For details, see 7.3 Collecting the trace based performance analysis file by using Management Server in the Application Server Maintenance and Migration Guide.
(b) Output items
For details about the items that are output to performance analysis trace files, see the following sections:
-
For the HTTP reception
-
For the HTTP adapter
(c) Collection points of performance analysis traces
The collection points of performance analysis traces for the HTTP reception and those for the HTTP adapter are different as follows:
-
For the HTTP reception
The following figure shows the collection points of performance analysis traces for the HTTP reception.

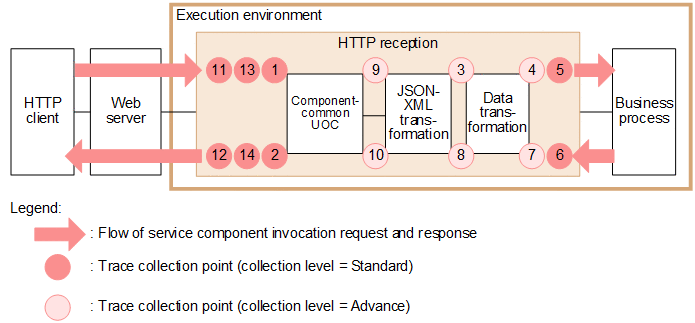

Figure 7‒123: Collection points of performance analysis traces (for the HTTP reception using the JSON-XML transformation function in HTTP linkage) The following table lists event IDs, trace collection points, and collection levels of performance analysis traces. The numbers in the Number in figure column correspond to the circled numbers in the preceding figure.
Table 7‒149: Collection points of performance analysis traces (for the HTTP reception using the JSON-XML transformation function in HTTP linkage) Event ID
Number in figure
Trace collection point
Level
0x9860
1
Entry to the custom reception framework
A
0x9861
2
Exit from the custom reception framework
A
0x9862
3
Point for invoking data transformation (request message)
B
0x9863
4
Point for receiving a response from data transformation (request message)
B
0x9864
5
Point for invoking HCSC message delivery control
A
0x9865
6
Point for receiving a response from HCSC message delivery control
A
0x9866
7
Point for invoking data transformation (response message)
B
0x9867
8
Point for receiving a response from data transformation (response message)
B
0x986E
9
Point for invoking JSON-XML transformation in the custom reception framework (request message)#1
B
0x986F
10
Point for receiving a response from JSON-XML transformation in the custom reception framework (response message)#2
B
0x9880
11
Entry to the HTTP reception
A
0x9881
12
Exit from the HTTP reception
A
0x9882
13
Point for invoking the custom reception framework
A
0x9883
14
Point for receiving a response from the custom reception framework
A
-
For the HTTP adapter
The following figure shows the collection points of performance analysis traces for the HTTP adapter.

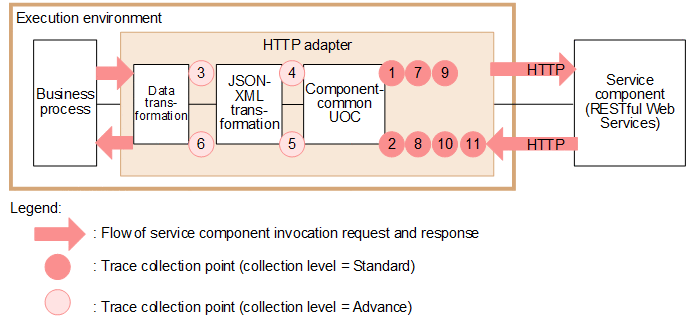

Figure 7‒124: Collection points of performance analysis traces (for the HTTP adapter using the JSON-XML transformation function in HTTP linkage) The following table lists event IDs, trace collection points, and collection levels of performance analysis traces. The numbers in the Number in figure column correspond to the circled numbers in the preceding figure.
Table 7‒150: Collection points of performance analysis traces (for the HTTP adapter using the JSON-XML transformation function in HTTP linkage) Event ID
Number in figure
Trace collection point
Level
0x9818
1
Point for invoking a service component of a service adapter (custom adapter)
A
0x9819
2
Point for receiving a response from a service component of a service adapter (custom adapter)
A
0x982A
3
Point for invoking JSON-XML transformation in the custom adapter development framework (request message)#1
B
0x982B
4
Point for receiving a response from JSON-XML transformation in the custom adapter development framework (request message)#1
B
0x982C
5
Point for invoking JSON-XML transformation in the custom adapter development framework (response message)#2
B
0x982D
6
Point for receiving a response from JSON-XML transformation in the custom adapter development framework (response message)#2
B
0x9890
7
Entry to the HTTP adapter
A
0x9891
8
Exit from the HTTP adapter
A
0x9892
9
At the time of sending an HTTP request
A
0x9893
10
At the time of receiving an HTTP response completely
A
0x9894
11
At the time of receiving an HTTP response header
A
-
Changing the collection level of performance analysis traces
To collect Advance-level performance analysis traces, use the cprflevel command to change the collection level of performance analysis traces, and then restart the HCSC server. Change the collection level setting for the HCSC server, which can be accessed at the upper layer of the first digit of Index 2.
cprflevel -PrfChangeLevel ,0x40000000
For details about the cprflevel command, see the Application Server Command Reference Guide.
(3) User message trace
This section describes user message traces that are output when the JSON-XML transformation function is used in the HTTP reception and HTTP adapter.
(a) Collection points of user message traces
-
For the HTTP reception
In the case where the JSON-XML transformation function is used in the HTTP reception and the trigger to output user message traces is set to NORMAL, the following trace collection points are added:
-
Point before JSON-XML transformation is performed during the processing of a request (5 in the figure)
-
Point after JSON-XML transformation is performed during the processing of a response (6 in the figure)
The following figure shows the collection points of user message traces for the HTTP reception.

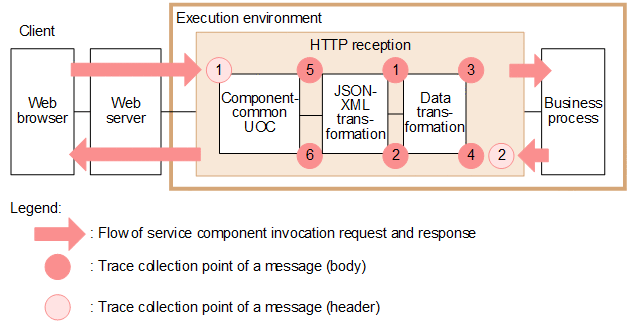

Figure 7‒125: Collection points of user message traces (for the HTTP reception using the JSON-XML transformation function in HTTP linkage) The following table lists trace collection points, types of output messages, and precise positions. The numbers in the Number in figure column correspond to the circled numbers in the preceding figure.
Table 7‒151: Collection points of user message traces (for the HTTP reception using the JSON-XML transformation function in HTTP linkage) Number in figure
Trace collection point
Output message
Details of start of user message trace collection
Collection point
Protocol type
Precise position
1
Entry to the custom reception framework
Requester-side message
URCP
CUSTM
IN
2
Exit from the custom reception framework
Requester-side message
URCP
CUSTM
OUT
3
Point for receiving a response from data transformation (request message)#1
Request message after data transformation
URCP
CUSTM
RQA
4
Point for invoking data transformation (request message)#2
Response message after data transformation
URCP
CUSTM
RSB
5
Point for invoking JSON-XML transformation in the custom reception framework#3
Request message before JSON-XML transformation
URCP
CUSTM
JCB
6
Point for receiving a response from JSON-XML transformation in the custom reception framework#4
Response message before JSON-XML transformation
URCP
CUSTM
JCA
-
- Legend:
-
The meanings of the symbols in the Collection point, Protocol type, and Precise position columns are as follows:
-
URCP: User-defined reception
-
CUSTM: Custom reception
-
IN: Entry to the custom reception framework
-
OUT: Exit from the custom reception framework
-
RQA: Point for receiving a response from data transformation (request message)
-
RSB: Point for invoking data transformation (response message)
-
JCB: Point for invoking JSON-XML transformation in the custom reception framework (request message)
-
JCA: Point for receiving a response from JSON-XML transformation in the custom reception framework (response message)
-
- #1
-
This trace collection point is used only when data transformation is performed during the processing of a request.
- #2
-
This trace collection point is used only when data transformation is performed during the processing of a response.
- #3
-
This trace collection point is used only when JSON-XML transformation is performed during the processing of a request.
- #4
-
This trace collection point is used only when JSON-XML transformation is performed during the processing of a response.
-
For the HTTP adapter
In the case where the JSON-XML transformation function is used in the HTTP adapter and the trigger to output user message traces is set to NORMAL, the following trace collection points are added:
-
Point before JSON-XML transformation is performed during the processing of a request (5 in the figure)
-
Point after JSON-XML transformation is performed during the processing of a response (6 in the figure)
The following figure shows the collection points of user message traces for the HTTP adapter.

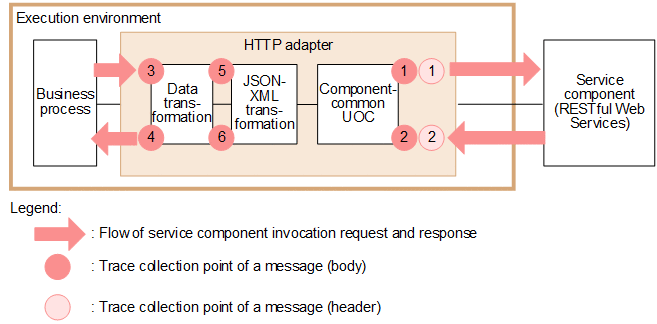

Figure 7‒126: Collection points of user message traces (for the HTTP adapter using the JSON-XML transformation function in HTTP linkage) The following table lists trace collection points, types of output messages, and precise positions. The numbers in the Number in figure column correspond to the circled numbers in the preceding figure.
Table 7‒152: Collection points of user message traces (for the HTTP adapter using the JSON-XML transformation function in HTTP linkage) Number in figure
Trace collection point
Output message
Details of start of user message trace collection
Collection point
Protocol type
Precise position
1
Immediately before invocation of the service adapter
Service component message
SVC
CUSTM
CAL
2
Immediately after response by the service adapter
Service component message
SVC
CUSTM
RET
3
Point for invoking data transformation (request message)#1
Request message before data transformation
CNVST
CUSTM
RQB
4
Point for receiving a response from data transformation (response message)#2
Response message before data transformation
CNVST
CUSTM
RSA
5
Point for invoking JSON-XML transformation in the custom adapter development framework#3
Request message before JSON-XML transformation
CNVJS
CUSTM
JCB
6
Point for receiving a response from JSON-XML transformation in the custom adapter development framework#4
Response message before JSON-XML transformation
CNVJS
CUSTM
JCA
-
- Legend:
-
The meanings of the symbols in the Collection point, Protocol type, and Precise position columns are as follows:
-
SVC: Invocation of a service component (in the service adapter)
-
CNVST: Data transformation in the service adapter
-
CNVJS: JSON-XML transformation (in the custom adapter development framework)
-
CUSTM: Custom adapter
-
CAL: Calling (of a business process or service)
-
RET: Reception of a response (to invocation of a business process or service)
-
RQB: Immediately before data transformation that is performed when the service adapter is requested
-
RSA: Immediately after data transformation that is performed when the service adapter responds
-
JCB: Immediately before JSON-XML transformation in the custom adapter development framework
-
JCA: Immediately after JSON-XML transformation in the custom adapter development framework
-
- #1
-
This trace collection point is used only when data transformation is performed during the processing of a request.
- #2
-
This trace collection point is used only when data transformation is performed during the processing of a response.
- #3
-
This trace collection point is used only when JSON-XML transformation is performed during the processing of a request.
- #4
-
This trace collection point is used only when JSON-XML transformation is performed during the processing of a response.
