7.7.13 Troubleshooting when executing the mail adapter

In mail adapter, the information to verify system performance and analyze the cause of failure is output in log file or trace file. The following table describes the types of logs and traces which are generated in mail adapter:

Table 7‒131: Types of logs and traces (in mail adapter)
Logs and traces	Output information	Description
Message log	All kinds of information generated in mail adapter is output as messages.	You can check operating information (Start, Stop and Failure) as messages. Note that the output destination of message logs is common for Application Server and entire Service Platform and therefore, you can check system operating status in a batch.
Maintenance log	The following information is output as the maintenance information of internal mail adapter. Date Time Execution class name Internal method name Exception that occurred Information of the specified argument	You can check the time of issuance and sequence of internal method.
Performance analysis trace	The following information is output at the performance analysis trace collection point of the entire Service Platform system. Date Time Request information Trace collection source information At the performance analysis trace collection point of mail adapter, mail adapter specific information is output.	Based on the performance analysis information which is output from a series of processes, right from receiving request from service requester to returning the execution result, you can check the performance of Service Platform system.
Exception log	Information of exception which occurred in mail adapter (stack trace) is output.	You can check the information of exceptions in mail adapter. You can use it to analyze the cause of failure.
Command message log	All kinds of information which is generated at the time of executing mail adapter commands, is output.	You can check the information that is generated during the start, stop and when an error occurs at the time of executing mail adapter command.

The following table shows the mail information which is output to message log, maintenance log and performance analysis trace.

Table 7‒132: Mail information output to log and trace
Classification	Item	Message log	Maintenance log			Performance analysis trace
Classification	Item	Message log	Output level 3 and below	Output level 4	Output level 5	Performance analysis trace
Server information	Host name of mail server	Y	Y	Y	Y	Y
Server information	Port number of mail server	Y	Y	Y	Y	Y
Email address	TO	N	N	Y	Y	N
	CC	N	N	Y	Y	N
	BCC	N	N	Y	Y	N
	FROM	N	N	Y	Y	N
File path	Path for email body	Y	Y	Y	Y	Y
	Path for attached file	Y	Y	Y	Y	Y
	Path for mail adapter account definition file	Y	Y	Y	Y	Y
	Path for mail header definition file	Y	Y	Y	Y	Y
Mail format	--	Y	Y	Y	Y	Y
Mail contents	Subject line	N	N	N	N	N
	Mail body	N	N	N	N	N
	Attached file	N	N	N	N	N
Encoding	--	Y	Y	Y	Y	Y
Authentication information	Authentication format	Y	Y	Y	Y	Y
	User name	Y	Y	Y	Y	Y
	Password	Y^#	Y^#	Y^#	Y^#	Y^#
Message ID	--	Y	Y	Y	Y	Y

Legend:

Y: Output.

N: No output.

--: No corresponding item.

Note #

8 digit asterisks are output.

In addition to this, error messages and traces which are output in JavaMail of Application Server are also required at the time of troubleshooting. For details on how to get failure information output by Application Server, see "Application Server Maintenance and Migration Guide".

The following points describe the method to acquire logs and traces and the contents that are output:

Organization of this subsection

(1) Message log
(2) Maintenance log
(3) Performance analysis trace
(4) Exception log
(5) Command message log

(1) Message log

(a) Output format

The following figure shows the output format of message log:

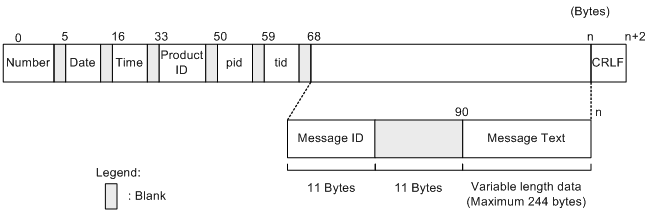

Figure 7‒114: Output format of message log (Mail adapter)

(b) Output contents

The following table described the contents output in message log:

Table 7‒133: Contents output in message log (Mail adapter)
Item	Description
Number	The output serial number of message log is displayed.
Date	The date of acquiring message log is output in the yyyy/mm/dd format. yyyy: Year mm: Month dd: Day
Time	The message log acquisition time is output in hh:mm:ss.SSS format. hh: Hour mm: Minutes ss: Seconds SSS: Milliseconds
Product ID	"HEJB" showing Component Container is output as an identifier for identifying product.
pid	ID for identifying process is output.
tid	The ID for identifying thread is output.
Message ID	Message ID in "KDECnnnnn-X" format is output.
Message text	The content of message is output.
CRLF	Terminal symbol of record is output.

(c) Output destination

The output destination of message log is as follows:

Path specified in the output destination of the operating log of J2EE server

Specify the output destination of the operating log of J2EE server in the ejb.server.log.directory key of usrconf.cfg (Option definition file for J2EE server). The default destination is <Installation directory of Service Platform>\CC\server\public\ejb\<J2EE server name>\logs. For details about usrconf.cfg, see "2.2.2 usrconf.cfg (Option definition file for J2EE servers)" in "Application Server Definition Reference Guide".

The following table shows the log file name of message log:

Table 7‒134: Log file name of message log (Mail adapter)
Output mode of log file	Log file name
For wrap around mode	cjmessage<Number of files>.log
For shift mode	cjmessage.log

Specify the number of log files in the ejbserver.logger.channels.define.<channel name>.filenum key of the option definition file (usrconf.cfg) for the J2EE server on which the HCSC server is running. Specify the size of log files in the ejbserver.logger.channels.define.<channel name>.filesize key of the option definition file (usrconf.cfg) for the J2EE server on which the HCSC server is running.

To Page Top

(2) Maintenance log

(a) Output format

The following figure shows the output format of maintenance log:

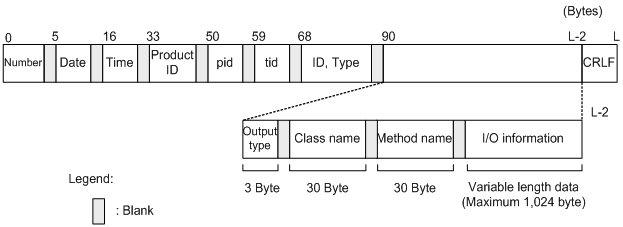

Figure 7‒115: Output format of maintenance log (Mail adapter)

(b) Output contents

The following table describes the contents that are output in maintenance log:

Table 7‒135: Contents output in maintenance log (Mail adapter)
Item	Description
Number	The output serial number of maintenance log is displayed.
Date	The maintenance log collection date is displayed in yyyy/mm/dd format. yyyy: Year mm: month dd: Day
Time	The maintenance log collection time is displayed in hh:mm:ss.SSS format. hh: Hour mm: Minutes ss: Seconds SSS: Milliseconds
Product ID	"MAILADP" indicating mail adapter is output as the identifier to identify the product.
pid	ID to identify process is output.
tid	ID to identify thread is output.
ID, Type	Not displayed.
Output type	Maintenance log trace collection point information (collection position) is displayed. BGN: Start method END: End method CAL: Invoke method RET: Return method THR: Throw exception CTH: Catch exception
Class name	Class name to collect maintenance log is output.
Method name	Method to name to collect maintenance log is output.
Input and output information	Input and output information of method to collect maintenance log is output.
CRLF	Record end code is output.

(c) Output destination

The output destination of maintenance log is as follows:

Path specified in the mailadp.methodtrace.filepath key of the mail adapter execution environment property file

The following table shows the log file name of maintenance log:

Table 7‒136: Log file name of maintenance log (Mail adapter)
Output mode of log file	Log file name
For wrap around mode	cscmailadpmtd_<HCSC server name>_<Number of files>.log
For shift mode	cscmailadpmtd_<HCSC server name >_.log

Specify the number of log files by using the mailadp.methodtrace.filenum key of mail adapter execution environment property file. Specify the size of log files by using the mailadp.methodtrace.filesize key of mail adapter execution environment property file.

For details on the mail adapter execution environment property file, see "6.13.3 Mail adapter runtime environment property file" in "Service Platform Reference Guide".

To Page Top

(3) Performance analysis trace

Settings are required for collecting performance analysis trace. For details about these settings, see "7. Performance Analysis by Using Trace Based Performance Analysis" in "Application Server Maintenance and Migration Guide".

(a) Output format

The format which is output in performance analysis trace file is similar to that of performance analysis trace of J2EE server. For details see "7.3 Collecting the trace based performance analysis file by using Management Server" in "Application Server Maintenance and Migration Guide".

(b) Output contents

The following table describes the contents that are output in performance analysis trace file:

Table 7‒137: Contents output in performance analysis trace file (Mail adapter)
Item		Description
Event ID		Event ID of collection point id output. For details on collection point, see "(c) Performance analysis trace collection point".
Return code		Collection point type is output. 0: Normal end 1: Abnormal end
Interface name		Class name is output.
Operation name		Method name is output.
Option information	Service ID	Service ID of HCSC component is output.
	Operation	SEND is output.
	Send mail (includes the connection to mail server and sending mail)	The host name, port number of destination mail server, date, message ID, etc. output.
	Exception class name	Class name where exception occurred is output.

(c) Performance analysis trace collection point

The following figure shows the performance analysis trace collection point:

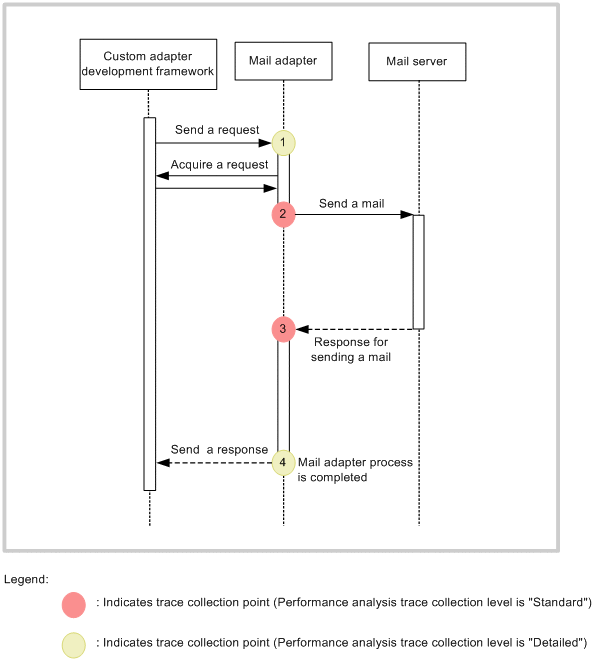

Figure 7‒116: Performance analysis trace collection point (Mail adapter)

The following table describes the event ID, trace collection point and performance analysis trace collection level. The "Number in figure" corresponds to the numbers in the above figure.

Table 7‒138: Performance analysis trace collection point (Mail adapter)
Event ID	Number in figure	Trace collection point	Level
0x9B90	1	When receiving request	B
0x9B92	2	When sending mail (Includes connection to mail server)	A
0x9B93	3	When responding to send mail (includes the connection mail server)	A
0x9B91	4	When sending response	B

Legend:

A: Indicates that the process/level is "Standard".

B: Indicates that the process/level is "Details".

To Page Top

(4) Exception log

Exception log starts/stops at the same time of maintenance log, and then, captures exception information (stack trace) and outputs the same to a file. As the output destination of exception log is the same directory as that of maintenance log, you cannot change it separately.

(a) Output format

The following figure shows the output format of exception log:

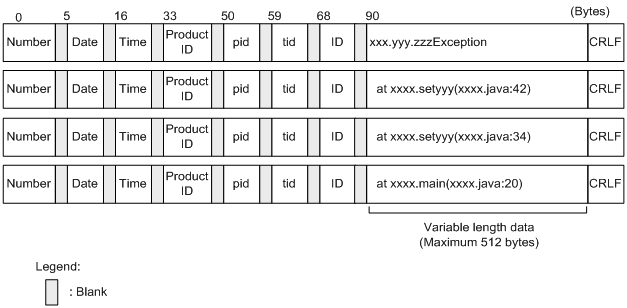

Figure 7‒117: Output format of exception log (mail adapter)

(b) Output contents

The following table describes the contents output in exception log:

Item	Description
Number	The output serial number of exception log is displayed.
Date	The exception log collection date is output in format yyyy/mm/dd. yyyy: Year mm: Month dd: Day
Time	The exception log collection time is output in format hh:mm:ss.SSS. hh: Hour mm: Minutes ss: Seconds SSS: Milliseconds
Product ID	"MAILADP" indicating mail adapter is output to identify product.
pid	ID to identify process is output.
tid	ID to identify thread is output.
ID	Blank
Stack trace information	Stack trace information is output.
CRLF	Record end code is output.

(c) Output destination

Following is the output destination of exception log. The path is same as that of maintenance log.

<Path specified in the mailadp.methodtrace.filepath property of mail adapter execution environment property file>\<Service ID>

The following table shows the log file name of exception log.

Table 7‒139: Log file name of exception log (Mail adapter)
Output mode of log file	Log file name
For wrap around mode	cscmailadpexp_<HCSC server name>_<number of files>.log
For shift mode	cscmailadpexp_<HCSC server name>_.log

Specify the number of log files in the mailadp.exptrace.filenum property of mail adapter execution environment property file. Specify the size of log files in the mailadp.exptrace.filesize property of mail adapter execution environment property file.

For details about the mail adapter execution environment property file, see "6.13.3 Mail adapter runtime environment property file" in "Service Platform Reference Guide".

To Page Top

(5) Command message log

(a) Output format

The following figure shows the output format of command message log.

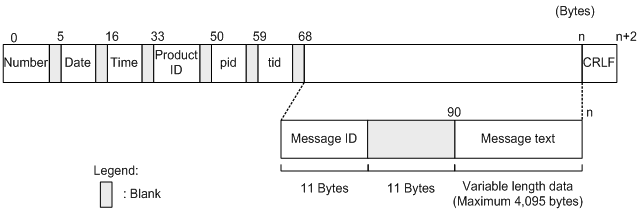

Figure 7‒118: Output format of command message log (Mail adapter )
