7.7.12 Troubleshooting in a system that uses file event linkage
This section describes the types of information that can be collected for failures that occur in a system that uses file event linkage. The following types of failure information are related to file event linkage:
-
Snapshot log
-
Message log
-
Method trace
-
Performance analysis trace
-
File event trace
The following describes the preceding types of failure information.
- Organization of this subsection
(1) Snapshot log
To include the file event reception in the targets of information collection by the mngsvrutil and snapshotlog commands, you might need to modify the file that defines the targets for collection of snapshot log data.
To collect log data at the same logging level as the other receptions of the service platform, add entries as shown in the following paragraphs. You do not need to add these entries if they have already been included in the relevant files.
(a) snapshotlog.conf
${cosminexus.home}/CSC/custom-reception/fileevent/config/.+ ${cosminexus.home}/CSC/custom-reception/fileevent/config/common/.+
(b) snapshotlog2.conf
${cosminexus.home}/CC/server/public/ejb/.+/logs/csc/rcp/fileevent/.+/fileeventtrace_.*\.log &{ejb.public.directory}/ejb/.+/logs/csc/rcp/fileevent/.+/fileeventtrace_.*\.log &{ejb.server.log.directory}/csc/rcp/fileevent/.+/fileeventtrace_.*\.log
(c) snapshotlog.param.conf
${cosminexus.home}/CSC/custom-reception/fileevent/config/.+ ${cosminexus.home}/CSC/custom-reception/fileevent/config/common/.+
(2) Message log
For failures that occur during operation using the file event linkage functionality, messages are output to message logs. The log data that is output to the message log for the file event reception is the message log data that is output by the service platform and is related to J2EE server operations.
The error messages that are output for the file event linkage functionality include the following:
-
KDEC00459-E: This error message is output to the message log if an exception occurs at the start of the file monitoring function. At this time, the HCSC server start command ends due to an error.
-
KDEC00455-E: Startup of the file event reception fails if false is set for the fileevent-reception.monitored-file.enabled property in the HCSC server runtime definition file. When this failure occurs, this error message is output to the message log.
-
KDEC00458-E: Startup of the file event reception fails if the common folder defined in the file-event-reception definition file is not defined in the HCSC server runtime definition file. When this failure occurs, this error message is output to the message log.
For details about the messages that are output, see 2.1 Messages from KDEC00001 to KDEC19999 in the manual Service Platform Messages. For details about the output items and output destination of message log data, see 7.4.1(3) Activity log of J2EE server.
(a) If a fault response message is returned to the file event reception
This section describes troubleshooting when a fault response message is returned to the file event reception. For the error notification method used in this case, see the description of the case where an error is returned by a service component about a user-defined exception in the following section: A.7 Method of notifying error in custom reception in the Service Platform Reception and Adapter Definition Guide.
If a fault response message is returned to the file event reception, take action according to the message that is output, and then take action for the monitoring-target files as described in the following table:
Monitoring-target file |
Action |
---|---|
Update completion notification file |
|
File to be acquired |
Use the following procedure to take action:
|
(b) If an error is returned by the custom reception framework
This section describes troubleshooting when an error is returned by the custom reception framework. For the error notification method used in this case, see the description of the case where an error is returned by the HCSC server in the following section: A.7 Method of notifying error in custom reception in the Service Platform Reception and Adapter Definition Guide.
If an error is returned by the custom reception framework, take action according to the message that is output, and then take action for the monitoring-target files as described in the following table:
Error location |
Condition |
Monitoring-target file |
|
---|---|---|---|
Update completion notification file |
File to be acquired |
||
File event reception or HCSC message delivery control |
None |
Use the file transfer and data linkage software to re-create the monitoring-target file (update completion notification file or file to be acquired). |
|
Other locations |
If the following conditions are met:
|
Re-execute the process instance. If the file to be acquired does not remain although the file is used during re-execution, use the file transfer and data linkage software to re-perform a transfer of the file to be acquired and the subsequent processing. |
Re-execute the process instance. |
If the preceding conditions are not met: |
Use the file transfer and data linkage software to perform the following task:
|
Use the file transfer and data linkage software to re-perform a transfer of the file to be acquired and the subsequent processing. |
(c) If an error is detected by the file event reception
The file event reception can detect the following errors:
-
Non-existence of the file to be acquired
-
Failure in creating a lock file
-
Failure in obtaining a lock with the lock file
-
Failure in releasing a lock with the lock file
-
Failure in renaming the monitoring-target file (update completion notification file or file to be acquired)
If an error is detected, check whether a file event trace from the collection point IN has been output. If you know whether this trace has been output, you will be able to guess a rough error location and take specific action as shown in the following table.
Has a trace from collection point IN been output? |
Failure location |
Action |
---|---|---|
Yes |
After the business process was invoked |
See the relevant error message that has been output to the message log and determine whether some action must be taken. |
No |
Before the business process was invoked |
Take action according to the relevant message that has been output to the message log, and then take action as follows:
|
(3) Method trace
The method traces for file event linkage conform to the specifications of the method traces that are output by the service platform.
For details about the output items and output destination for method traces, see 7.4.7(3) Method trace.
(4) Performance analysis trace
The performance analysis traces for the file event linkage functionality can be used to analyze performance bottlenecks. These traces can be used to check the following:
-
Processing of the file monitoring function
-
Processing of the file event reception function
Before you can collect performance analysis traces, you must specify the necessary settings. For details about the necessary settings, see 7. Performance Analysis by Using Trace Based Performance Analysis in the Application Server Maintenance and Migration Guide.
(a) Output format
Performance analysis traces are output to files that are in the same format as the performance analysis trace files for the J2EE server. For details about the output format, see 7.3 Collecting the trace based performance analysis file by using Management Server in the Application Server Maintenance and Migration Guide.
(b) Output items
The following table shows the items that are output to performance analysis trace files.
Item |
Description |
|
---|---|---|
Event ID |
The event ID of a collection point is output. For details about collection points, see (c) Collection points of performance analysis traces. |
|
Return code |
The collection point type is output:
|
|
Interface name |
The class name is output. |
|
Operation name |
The method name is output. |
|
Optional information# |
Message common ID |
The request identification information (parent ID) is output. If this information is not set, the string null is output. |
Service request ID |
The request identification information (child ID) is output. If this information is not set, the string null is output. |
|
Additional information |
The following additional information is output:
|
(c) Collection points of performance analysis traces
The two types of collection points of performance analysis traces for file event linkage are as follows:
-
Points at which to collect a trace when the file event reception operates
-
Points at which to collect a trace when the file monitoring processing starts and ends
The following describes the preceding types of collection points:
-
Points at which to collect a trace when the file event reception operates

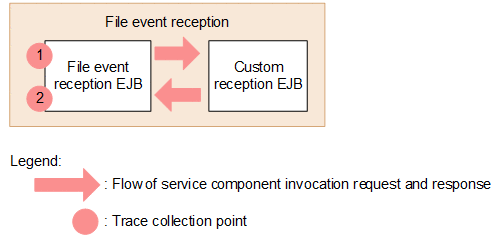

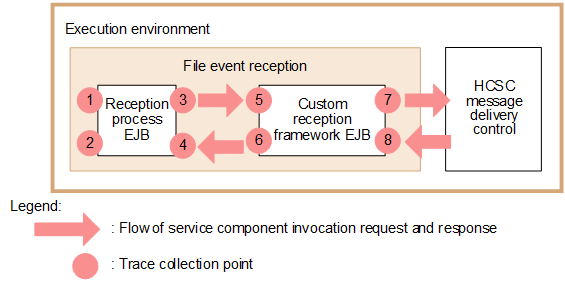

Figure 7‒110: Collection points of performance analysis traces (for file event linkage) The following table shows the event IDs, trace collection points, and collection levels of performance analysis traces. The numbers in the Number in figure column of the table correspond to the circled numbers in the preceding figure.
Table 7‒126: Collection points of performance analysis traces (for file event linkage) Event ID
Number in figure
Trace collection point
Level#
0x98B0
1
Entry to a custom reception
A
0x98B1
2
Exit from a custom reception
A
0x98B2
3
Point for invoking the custom reception framework
B
0x98B3
4
Point for receiving a response from the custom reception framework
B
0x9860
5
Entry to the custom reception framework
A
0x9861
6
Exit from the custom reception framework
A
0x9864
7
Point for invoking the message delivery control
A
0x9865
8
Point for receiving a response from the message delivery control
A
-
Points at which to collect a trace when the file monitoring processing starts and ends

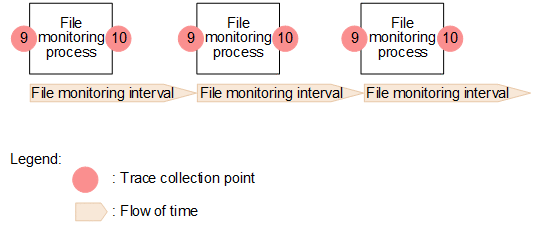

Figure 7‒111: Collection points of performance analysis traces (for file event linkage) The following table shows the event IDs, trace collection points, and collection levels of performance analysis traces. The numbers in the Number in figure column of the table correspond to the circled numbers in the preceding figure.
Table 7‒127: Collection points of performance analysis traces (for file event linkage) Event ID
Number in figure
Trace collection point
Level
0x98B4
9
Start of the file monitoring processing
A
0x98B5
10
End of the file monitoring processing
A
(5) File event trace
When the file event reception starts, it initializes file event traces. If initialization fails, a warning message (KDEC00457-W) is output to the message log and the processing to start the file event reception continues. No file event traces can be collected using the file event reception that failed in initialization.
(a) Output destination
The output destination of file event traces is as follows:
log-output-directory-on-the-J2EE-server\csc\rcp\fileevent\reception-ID
The log data output directory on the J2EE server can be specified by using the ejb.server.log.directory key in the option definition file (usrconf.cfg) for the J2EE server on which the HCSC server operates. The following table shows the names of file event trace files.
Trace file output mode |
Trace file name |
---|---|
Wraparound mode |
fileeventtrace_N.log |
Shift mode |
fileeventtrace_.log |
(b) Number of files
The default number of output files is 8. The number of files can be changed by using the urecp-fileevent.trace.filenum key in the file-event-reception configuration file.
For details about the file-event-reception configuration file, see 6.9.1 File-event-reception configuration file in the manual Service Platform Reference Guide.
(c) File size
The default output file size is 2 MB. The file size can be changed by using the urecp-fileevent.trace.filesize key in the file-event-reception configuration file.
For details about the file-event-reception configuration file, see 6.9.1 File-event-reception configuration file in the manual Service Platform Reference Guide.
(d) Output format

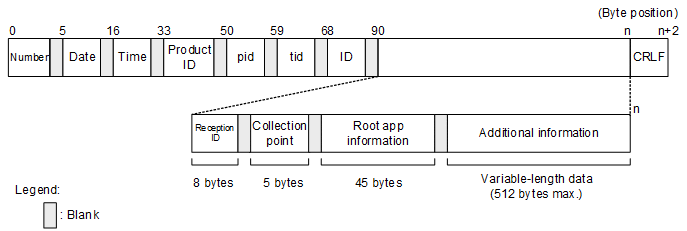

The following figure shows the output format of file event traces.
(e) Output items
The following table shows the output items of file event traces.
Item |
Description |
---|---|
Number |
The sequence number of each file event trace is output. |
Date |
The date on which the file event trace was collected is output in YYYY/MM/DD format. |
Time |
The time at which the file event trace was collected is output in hh:mm:ss.SSS format. |
Product ID |
The string CSCMSG is output as a product identifier. |
Pid |
The identifier of each process is output. |
tid |
The identifier of each thread is output. |
ID |
Blank |
Reception ID |
The ID of the file event reception that processed the request is output. |
Collection point |
The following items are output as the information about collection points:
|
Root application information |
Root application information |
Additional information |
|
CRLF |
The record end code is output. |
(f) Collection points of file event traces
The following figure shows the collection points of file event traces.
The following table shows the collection points of file event traces and the collection point information. The numbers in the Number in figure column of the table correspond to the circled numbers in the preceding figure.
Number in figure |
Trace collection point |
Collection point information |
---|---|---|
1 |
Entry to the file event reception |
IN |
2 |
Exit from the file event reception |
OUT |
FAULT |
||
ERROR |
