8.11.3 Trace collection points and trace information that can be collected when a connection association is used

This subsection describes the trace collection points and the trace information that can be collected when a connection association is used.

Organization of this subsection

(1) Trace get point and the PRF trace get level

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒81: Details of trace collection points in a DB Connector and JCA container (when the processing of a connection association is executed)
Event ID	No. in the figure^#	Trace acquisition points	Level
0x8C40	1	When a logical connection is replaced with a physical connection with the connection association functionality	A

The following figure shows the trace collection points.

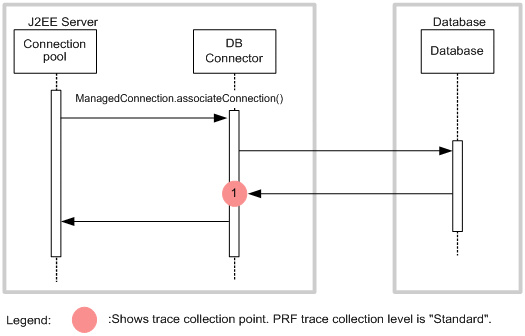

Figure 8‒47: Details of trace collection points in a DB Connector and JCA container (connection association-related)

The following table describes the trace information that can be collected.

Table 8‒82: Details of trace collection points in a DB Connector and JCA container (when the connection association processing is executed)
No. in the figure^#	Event ID	Level	Information that you can acquire
No. in the figure^#	Event ID	Level	Interface name	Operation name	Optional
1	0x8C40	A	Connection ID (connection ID of the physical connection that replaces another connection with the connection association functionality)	--	--

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-47.
