8.11.4 Trace collection points and trace information that can be collected when the automatic connection close functionality is used
This subsection describes the trace collection points and the trace information that can be collected when the connection closes automatically.
- Organization of this subsection
(1) Trace get point and the PRF trace get level
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Event ID |
No. in the figure# |
Trace acquisition points |
Level |
---|---|---|---|
0x8B84 |
1 |
Immediately after the invocation of the close processing by the automatic connection close functionality |
B |
0x8B82 |
2 |
Immediately before the invocation of physical connection discard |
B |
0x8B83 |
3 |
Immediately after the return of physical connection discard |
B |
0x8B85 |
4 |
Immediately before the return of the close processing by the automatic connection close functionality |
B |

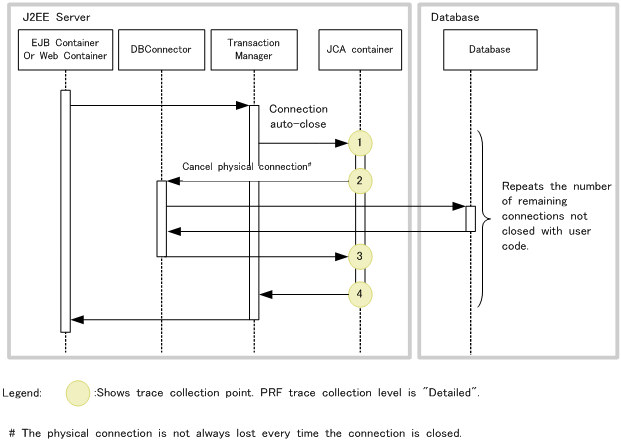

The following figure shows the trace collection points.
(2) Trace information that can be collected
The following table describes the trace information that can be collected.
No. in the figure# |
Event ID |
Level |
Information that you can acquire |
||
---|---|---|---|---|---|
Interface name |
Operation name |
Optional |
|||
1 |
0x8B84 |
B |
Connection ID |
-- |
-- |
2 |
0x8B82 |
B |
-- |
-- |
-- |
3 |
0x8B83 |
B |
-- |
-- |
|
4 |
0x8B85 |
B |
-- |
-- |
Entrance-time |
