8.11.2 Trace collection points and trace information that can be collected when a local transaction is used

This subsection describes the trace collection points and the trace information that can be collected when a local transaction is used.

Organization of this subsection

(1) Trace get point and the PRF trace get level

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8‒79: Details of trace collection points in a DB Connector and JCA container (when the processing of a local transaction is executed)
Event ID	No. in the figure^#	Trace acquisition points		Level
0x8C60	1	When a local transaction starts	When the processing starts	B
0x8C61	2	When a local transaction starts	When the processing ends	B
0x8C62	3	When the local transaction is committed	When the processing starts	B
0x8C63	4	When the local transaction is committed	When the processing ends	B
0x8C64	3	When the local transaction rolls back	When the processing starts	B
0x8C65	4	When the local transaction rolls back	When the processing ends	B

The following figure shows the trace collection points.

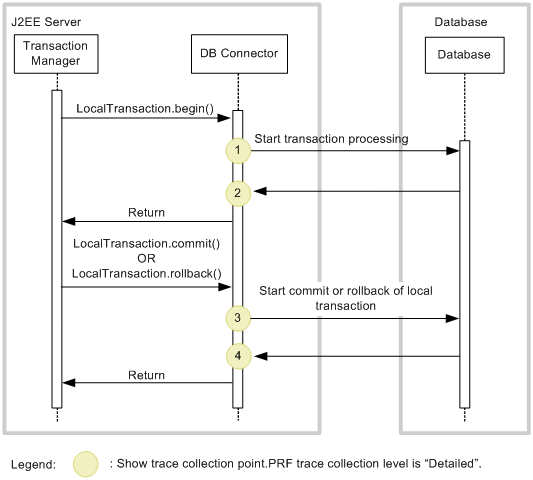

Figure 8‒46: Details of trace collection points in a DB Connector and JCA container (local transaction-related)

The following table describes the trace information that can be collected.

Table 8‒80: Details of trace collection points in a DB Connector and JCA container (when the processing of a local transaction is executed)
No. in the figure^#	Event ID	Level	Information that you can acquire
No. in the figure^#	Event ID	Level	Interface name	Operation name	Optional
1	0x8C60	B	--	--	--
2	0x8C61	B	--	--	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
3	0x8C62	B	--	--	--
3	0x8C64	B	--	--	--
4	0x8C63	B	--	--	When normal: `Entrance-time` For an exception: `Entrance-time exception-name`
4	0x8C65	B	--	--

Legend:

B: Advanced

--: Not applicable

#

Corresponds to the numbers in Figure 8-46.
