12.2.1 Registering a managed computer in an ID group

(a) Registering a managed computer in an ID group

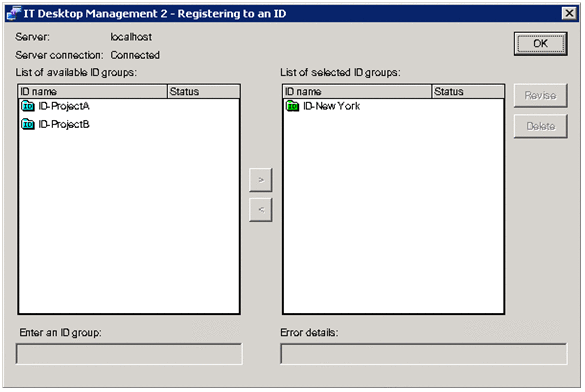

The following describes how to register a managed computer in an ID group:

1. In List of available ID groups, select an ID group.

   The selected ID group is highlighted. You can select only one ID group.

2. Click the > button.

   If the selected ID group does not require a password, the selected ID group moves to List of selected ID groups, and registration of the managed computer in the ID group ends.

   If the selected ID group requires a password, the Confirm Registration dialog box appears.

3. Enter a password, and then click the OK button.

   Enter the password (a maximum of 14 single-byte alphanumeric characters) informed to you by the system administrator. If the entered password is valid, the selected ID group moves to List of selected ID groups, and registration of the managed computer in the ID group ends.

(b) Unregistering a managed computer from an ID group

The following describes how to unregister a managed computer from an ID group.

1. In List of selected ID groups, select the relevant ID group.

   The selected ID group is highlighted. You can select multiple ID groups.

2. Click the < button.

   A confirmation dialog box appears to ask you whether you are sure you want to unregister the managed computer from the ID group.

   Click the OK button. The selected ID group moves to List of available ID groups, and unregistration of the managed computer from the ID group ends.

(a) Setting the status of waiting for registration in an ID group

The following describes how to enable a managed computer to be registered in an ID group managed by a relay (server) managing the ID group when the managed computer connects to the relay:

1. In the Enter an ID group field, enter the ID group in which to register the managed computer.

   The ID group name to be entered must not exceed 32 single-byte characters (or 16 double-byte characters). You cannot use the following symbols or space characters:

   \ / * : " ' | ! . < > ? %

   Note also that an ID group name beginning with a network ID cannot be used.

2. Click the > button.

   The Confirm Registration dialog box appears to prompt you to enter a password. If the entered ID group does not require a password for registration in the ID group, enter nothing in the Password field, and then click the OK button. Preparation for registering in the ID group ends.

3. Enter a password.

   If the entered ID group requires a password for registration, enter the password informed to you by the system administrator, and then click the OK button. Preparation for registering in the ID group ends. The ID group with which preparation for registering has ended is displayed in List of selected ID groups with the comment Now registering in ID groups attached against a yellow background.

   Registration in an ID group that is put on hold is reported to the ID-management relay computer later. Specifically, this notification occurs when you log on to the ID-management relay computer or select the Register in ID Group for the first time after communication with the ID-management relay computer is enabled.

   If an error is returned when registration in an ID group in the waiting status is reported, you can revise the ID group information, and then retry registering the managed computer in the ID group.

(b) Setting the status of waiting for unregistration from an ID group

The following describes how to enable a managed computer to be unregistered from an ID group managed by the relay (server) managing the ID group when the managed computer connects to the relay:

1. In List of selected ID groups, select the relevant ID group.

   The selected ID group is highlighted. You can select multiple ID groups.

2. Click the < button.

   A confirmation dialog box appears asking whether you are sure you want to unregister the managed computer from the ID group.

3. Click the OK button.

   The selected ID group moves to List of available ID groups, and preparation for unregistering the managed computer from the ID group ends.

   The ID group with which preparation for unregistering has ended is displayed in List of available ID groups with the comment Canceling attached against a yellow background.

(c) Canceling the status of waiting for registration in an ID group

The following describes how to cancel the status of waiting for registration in an ID group:

1. In List of selected ID groups, select the relevant ID group.

   The selected ID group is highlighted. You can select multiple ID groups.

2. Click the < button.

   A confirmation dialog box appears asking whether you are sure you want to cancel the status of waiting for registration in the selected ID group.

3. Click the OK button.

   The selected ID group is deleted from List of selected ID groups, and canceling the status of waiting for registration from the ID group ends.

(d) Canceling the status of waiting for unregistering from an ID group

The following describes how to cancel the status of waiting for unregistration from an ID group:

1. In List of available ID groups, select the relevant ID group.

   The selected ID group is highlighted. You can select multiple ID groups.

2. Click the > button.

   The selected ID group is deleted from List of available ID groups, and canceling the status of waiting for unregistration from the ID group ends.

(e) Revising ID group information

The following describes how to revise the ID group information specified for setting the status of waiting for registration of a managed computer:

Note that the Register in ID Group dialog box reporting an error might appear during registration processing. If this dialog box appears, click the Retry button to revise the ID group information (as described below), or click the OK button to cancel registration in the ID group that resulted in the error, and end processing.

1. In List of selected ID groups, select the relevant ID group.

   Select the ID group of which to revise information from List of selected ID groups. You can revise the information of only an ID group that is in the status of waiting for registration (displayed against a yellow background), or an ID group that has caused a registration error (displayed against a red background).

2. Click the Revise button.

   The Revise ID Group dialog box appears.

3. Revise the ID group name and/or password, and then click the OK button.

   The ID group information is revised, and is displayed with the comment Now registering in ID groups attached (displayed against a yellow background).
