7.6.8 Performing remote installation by bypassing a faulty relay system

If a relay system fails, you can perform remote installation on the managed computers connected to this relay system by connecting to another relay system.

To perform remote installation by changing a route, use the Create Job dialog box to create a job that specifies a changed route. To do this, click the Change Route button on the Destination page, and then specify a changed route in the Change Transmission Route dialog box that appears.

The following figure illustrates an example of performing remote installation by bypassing a faulty relay system.

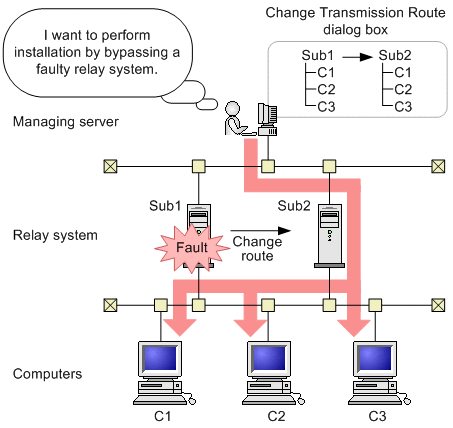

Figure 7‒57: Example of performing remote installation by bypassing a faulty relay system

[Figure]
