5.4.2 Example of linking system configuration information and ID group information

The following provides examples of linking system configuration information and ID group information.

Organization of this subsection

(1) Deleting hosts from system configuration information

The following describes how system configuration information and ID group information are linked when you remove an ID-management relay computer or a computer registered in an ID group from the system configuration information.

(a) When deleting an ID-management relay computer

The following figure shows an example in which a relay system defined as an ID-management relay computer is removed from the system configuration.

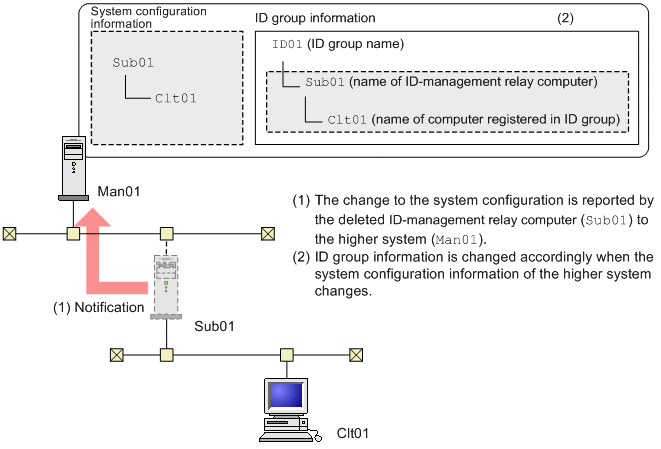

Figure 5‒19: Example of removing a relay system defined as an ID-management relay computer

[Figure]

(b) When deleting a computer registered in an ID group

The following figure shows an example in which a computer registered in an ID group is deleted from the system configuration:

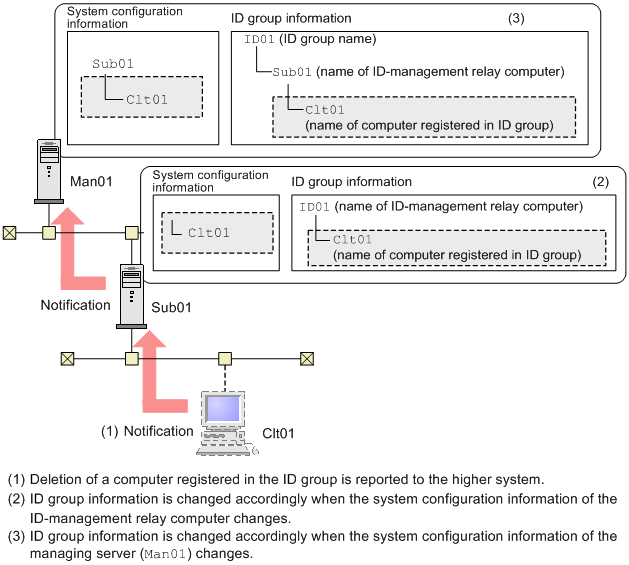

Figure 5‒20: Example when computer in ID group is deleted from system configuration

[Figure]

(2) Changing routes in system configuration information

The following describes how system configuration information and ID group information are linked when you change the route of an ID-management relay computer or a computer registered in an ID group from the system configuration information.

(a) Changing the route of an ID-management relay computer

The following figure shows an example of changing the connection destination of a relay system defined as an ID-management relay computer.

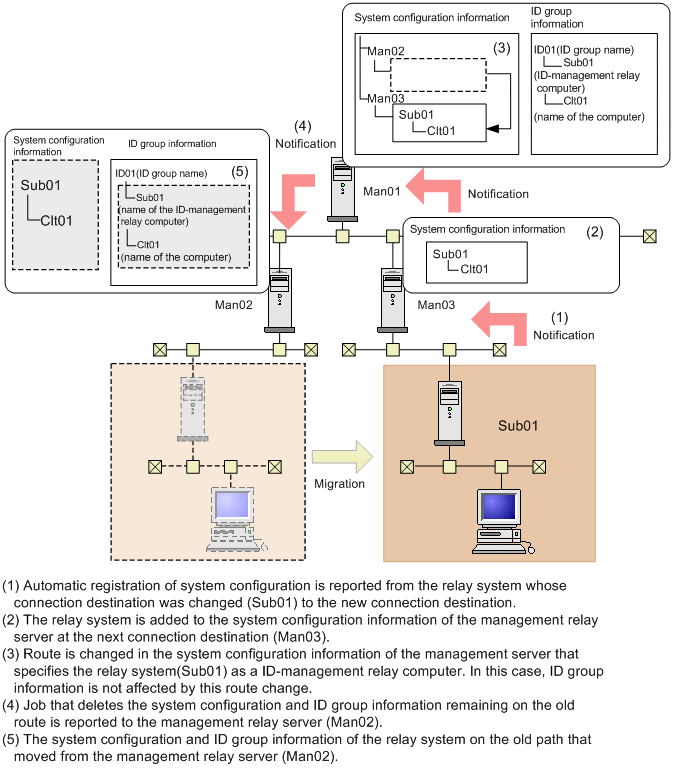

Figure 5‒21: Example of changing the connection destination of a relay system defined as an ID-management relay computer

[Figure]

(b) When changing the route of a computer registered in an ID group

The following figure shows an example in which the connection destination of a computer registered in an ID group is changed:

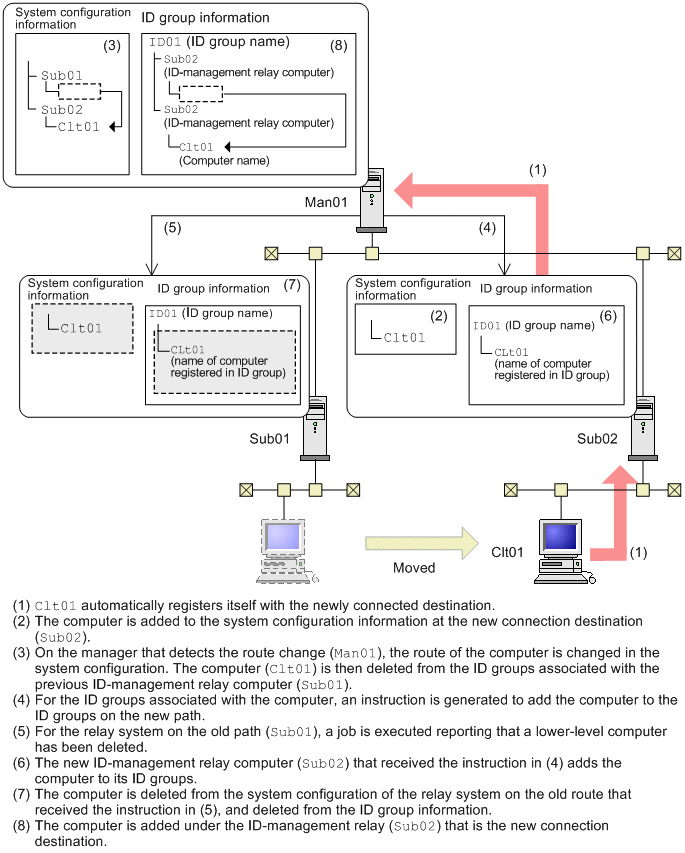

Figure 5‒22: Example when connection destination of computer in ID group is changed

[Figure]
