4.8.2 Command List window

The Command List window executes a command on APM at the desired time. The following figure shows the Command List window.

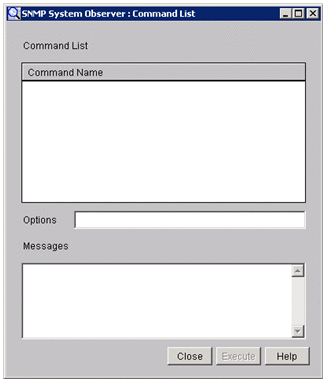

Figure 4‒86: Command List window

[Figure]

The items to be set are:

Command List

This box displays the registered commands. Select a command to be executed.

Options

Specify options for the command selected in Command List. Specify the command name and option in 160 bytes or less. Do not specify a tab.

Messages

This box displays the result of executing the command.
