4.8.1 Process Status window

The Process Status window references the statuses of monitored processes and monitored child processes. The following figure shows the Process Status window.

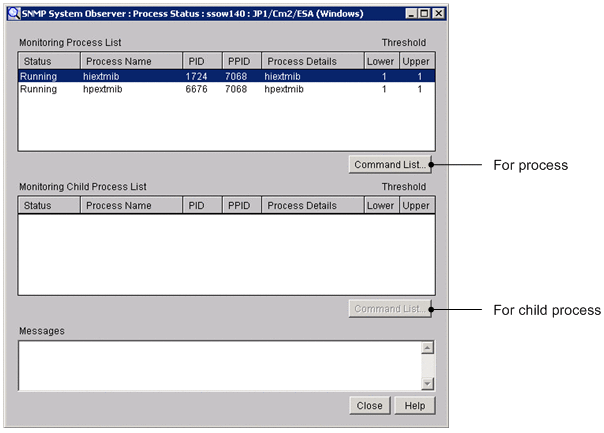

Figure 4‒85: Process Status window

[Figure]

The items to be set are:

Monitoring Process List

This box displays the statuses of monitored processes. The following table describes the items displayed in the list.

Status

Description

Running

Indicates that the applicable process is a running monitored process.

Not Running

Indicates that the applicable process is a monitored process which is not found, not running, or terminated.

Unknown

Indicates the applicable process is a monitored process for which process information cannot be obtained because a communication error occurred between a manager and an agent or an APM stopped.

Zombie

Indicates that the parent process cannot recognize termination of the applicable monitored child process. This status can be detected only when the OS of the agent is HP-UX or HP-UX (IPF).

Command List (Monitored process)

This button displays the Command List window. In the Command List window, you can execute a registered command on APM at the desired time. For details on the Command List window, see 4.8.2 Command List window

Monitoring Child Process List

This box displays the statuses of monitored child processes. The following table describes the items displayed in the list.

Status

Description

Running

Indicates that the applicable process is a running monitored process.

Not Running

Indicates that the applicable process is a monitored process which is not found, not running, or terminated.

Unknown

Indicates the applicable process is a monitored process for which process information cannot be obtained because a communication error occurred between a manager and an agent or an APM stopped.

Zombie

Indicates that the parent process cannot recognize termination of the applicable monitored child process. This status can be detected only when the OS of the agent is HP-UX or HP-UX (IPF).

Outside the target range

Indicates that the applicable process is not monitored, but is a running child process.

Command List (monitoring child process)

This button displays the Command List window. In the Command List window, you can execute a registered command on APM at the desired time. For details on the Command List window, see 4.8.2 Command List window

Messages

This box displays messages.
