4.8.3 Service Status window

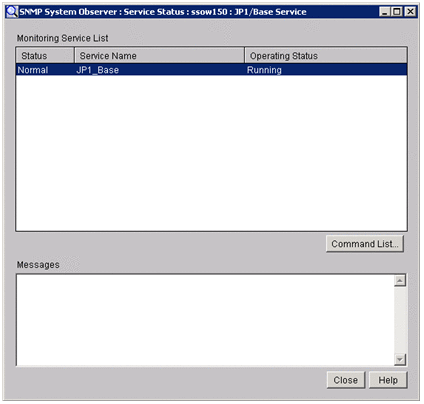

The Service Status window displays monitoring condition of a service according to the monitoring conditions. The following figure shows the Service Status window.
|
|
![[Figure]](GRAPHICS/SS050425.GIF)
The items to be set are:
- Monitoring Service List
-
Displays the status of monitored services. Statuses, names, and operating statuses of services are displayed.
- Command List
-
This button displays the Command List window. For details on the Command List window, see 4.8.2 Command List window.
- Messages
-
Displays messages.
