4.5.5 Copy Collection Data window

The Copy Collection Data window copies the collection database. The following figure shows the Copy Collection Data window.

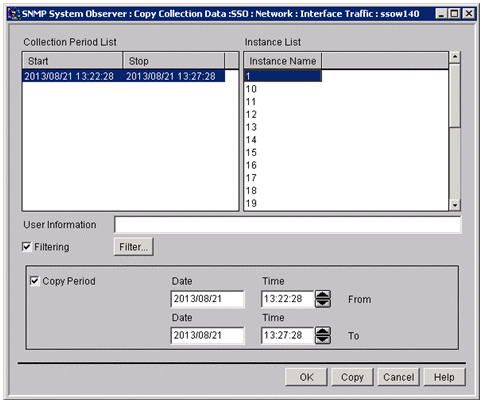

Figure 4‒56: Copy Collection Data window

The items to be set are:

Collection Period List

This box displays the collection period of the collected data. If only the collection start date and time are displayed, it means that the data is currently being collected. You can select multiple lines as long as they are adjacent.

Instance List

This box displays the instances for which resources were collected.

User Information

Specify information to be displayed in the Additional Information field of the Resource Data Reference window. Specify the information with a character string of 255 bytes or less. You can enter Japanese characters (multi-byte code), but the character code will be the language code in effect based on the language environment of SSO. As a result, if you execute the ssoextractlog command under a different Japanese environment, characters are garbled.

Filtering

Select this checkbox when you want to filter collected data. You can specify a range of values for each subresource and filter just those values.

Filter

This button displays the Set Filter Condition window.

Copy Period

Select this checkbox when you want to specify the collection period of the data to be copied. When this checkbox is selected, you can specify a period for copying the collected data.

Date

Specify a range between January 1, 1980 and December 31, 2099 in the format yyyy/mm/dd. You can specify a range if you selected the Copy Period checkbox.

Time

Specify a range between 00:00:00 and 23:59:59 in the format 00:00:00. You can specify a range if you selected the Copy Period checkbox.

Copy

This button copies the specified collected data.
