Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.5.6 Delete Collection Data window

The Delete Collection Data window specifies data in the collection database and deletes it. The following figure shows the Delete Collection Data window.

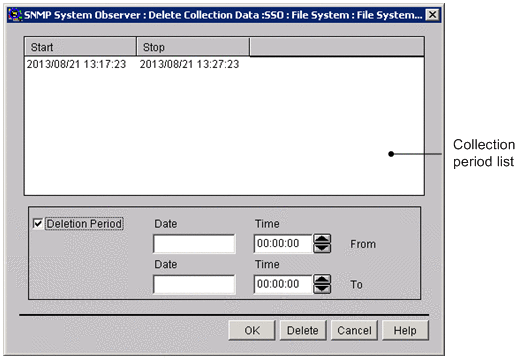

Figure 4‒57: Delete Collection Data window

[Figure]

The items to be set are:

Collection period list

This box displays the collection period of the collected data. If only the collection start date and time are displayed, it means that the data is currently being collected. You can select multiple lines as long as they are adjacent.

Deletion Period

Select this checkbox when you want to specify the collection period of the data to be deleted. When this checkbox is selected, you can specify a period for deleting the collected data.

Date

Specify a range between January 1, 1980 and December 31, 2099 in the format yyyy/mm/dd. You can specify a range if you selected the Deletion Period checkbox.

Time

Specify a range between 00:00:00 and 23:59:59 in the format 00:00:00. You can specify a range if you selected the Deletion Period checkbox.

Delete

This button deletes the specified collected data.
