4.5.4 Save File window

The Save File window saves the collected data to a file. The following figure shows the Save File window.

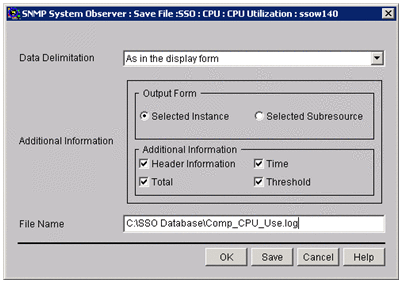

Figure 4‒54: Save File window (opened from the Listing Display window)

[Figure]

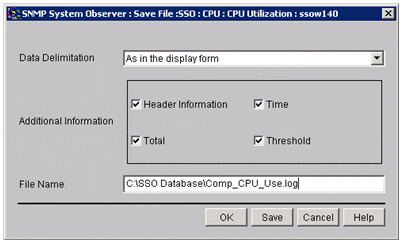

Figure 4‒55: Save File window (opened from the Collection Data Detail window)

[Figure]

The items to be set are:

Data Delimitation

Specify a character for delimiting data.

As in the display form

SSO uses spaces to set out the lines and outputs the data to a file as displayed in the Listing Display window.

Delimit by comma, Delimit by tab, Delimit by space

SSO delimits the data in accordance with the specified format.

Additional Information

Specify the information to be output to the save file.

Output Form

Specifies the output format of collection data.

  • Selected Instance

    Outputs collection data for each instance.

  • Selected Subresource

    Outputs collection data for each subresource.

Header Information

SSO outputs (to the file) the resource name or other title of the data.

Time

SSO outputs (to the file) the date and time at which the information was obtained.

Total

SSO outputs (to the file) the total of the minimum value, maximum value, and average.

Threshold

SSO outputs the threshold to the file. However, it cannot output the threshold if you specified Daily Data or Monthly Data for Display Form: in the Collection Data Detail window.

File Name

Specify a file name by its absolute path. If you omit the path on Windows, SSO creates the file in the SSO installation directory. If you omit the path on Linux, SSO creates the file in the root directory.

Save

Clicking this button saves the data to the specified file.

Resource values to be output:

Fractional resource values are rounded to two decimal places.

The maximum value and minimum value to be output:

If the maximum value or minimum value is an integer, the decimal places .00 are added.
