JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.5.3 Set Filter Condition window

The Set Filter Condition window filters the collected data to be displayed in the Listing Display window or the data to be copied in the Copy Collection Data window. The following figure shows the Set Filter Condition window.

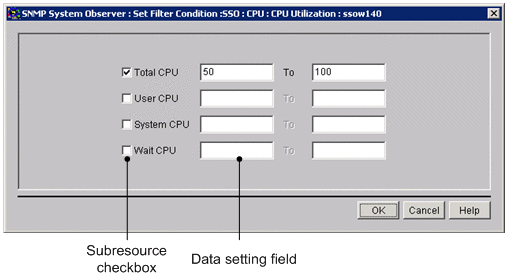

Figure 4‒53: Set Filter Condition window

[Figure]

The items to be set are:

Subresource checkbox

Select the checkbox of the subresource to be filtered. SSO does not output data for the subresources that are not selected.

Data setting field

Specify the range of values to be filtered. You can specify 0 or any floating decimal point between ±1.00 x 10-2 and ±1.7976931348623157 x 10308. In the right field, specify a value that is equal to or greater than the value specified in the left field.
