4.3.18 Save file window

The Save file window saves the threshold verification result in a file. The following figure shows the Save file window.

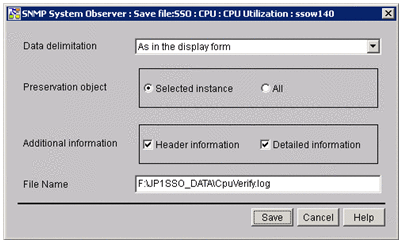

Figure 4‒46: Save file window (for selected instance)

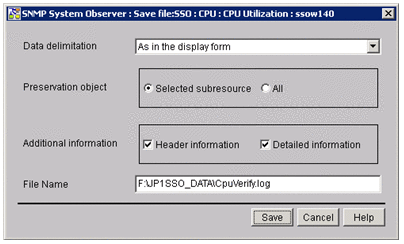

Figure 4‒47: Save file window (for selected subresource)

The items to be set are:

Data delimitation

Specify the delimiter you want to use.

As in the display form

Adjusts the layout by using multiple spaces, and outputs the data as displayed in the Threshold verification result window to a file.

Delimit by comma, Delimit by tab, and Delimit by space

Separates data items by using the specified delimiter.

Preservation object

Specifies information to be output to a file.

Selected instance or Selected subresource

Select this radio button to display only the verification result in the form you selected by using Verification form in the Threshold verification result window.

All

Select this radio button to display all threshold verification results.

Additional Information

Specifies information to be output to a file.

Header information

Select this check box to output the title of data to a file.

Detailed information

Select this check box to output the threshold verification result and detailed log to a file.

File Name

Specify the full-path name and the absolute path name of the file. You cannot omit the file name.

Save

Saves data in the specified file.
