4.3.17 Threshold verification result detailed information window

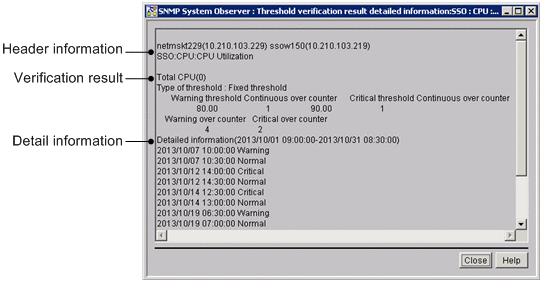

The Threshold verification result detailed information window displays detailed information of the threshold verification result. The following figure shows the Threshold verification result detailed information window.
|
|
![[Figure]](GRAPHICS/SS05022J.GIF)
The items to be set are:
Note that the lines after 500th line are not displayed because the maximum number of lines that can be displayed in this window is 500.
- Header information
-
The following information, which is specified as verification conditions for verifying thresholds, is displayed:
-
Collecting server
-
Server targeted for collection
-
Name of the resource to be verified
-
- Verification result
-
The following information is displayed as the threshold verification result:
-
Subresource name
-
Instance name
-
Type of threshold
-
Statistical total time
-
Calculation timing
-
Warning threshold, critical threshold and continuous over counter
-
Warning and critical over counter
-
- Detail information
-
Displays status changes of the period and the result of the threshold verification.
Note that some detailed log data might not be displayed because the maximum number of lines that can be displayed in this window is 500.
