4.3.16 Threshold verification result window

The Threshold verification result window displays the result of a threshold verification. The following figure shows the Threshold verification result window.

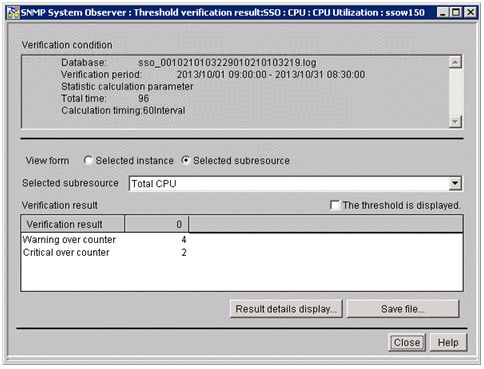

Figure 4‒43: Threshold verification result window (for Selected subresource)

Figure 4‒44: Threshold verification result window (for Selected instance)

The items to be set are:

Verification condition

Displays the list of verification settings you specified when you verify a threshold. The items to be displayed include any verification conditions.

The following items are displayed:

• Database

  Displays the name of the database in which you want to verify a threshold.

• Verification period

  Displays the verification period of a threshold. If the period is changed for each threshold, the period after the change is displayed.

• Verification time zone

  This item is displayed if the verification time zone is specified as a verification condition.

• Statistic calculation parameter Total time

  Displays the total time set in the Statistic calculation parameter tab of the Threshold verification window.

• Calculation timing

  Displays the calculation timing set in the Statistic calculation parameter tab of the Threshold verification window.

View form

Displays the display format of the verification result. By default, Selected instance is selected.

• Selected instance

  Select this radio button to display the verification result for each instance. When this button is selected, the Selected instance text box is displayed.

  Select the instance you want to display in Selected instance.

• Selected subresource

  Select this radio button to display the verification result for each subresource. When this button is selected, the Selected subresource text box is displayed.

  Select the subresource you want to display in Selected subresource.

The threshold displayed

Select this check box to display the setting value for verifying a threshold. When you select this check box, the value you set for Threshold verification in the Verification condition tab of the Threshold verification window is displayed as detailed information. By default, this check box is not selected.

Verification result

Displays the result of a threshold verification for each instance or subresource. The displayed information is the number of times that a threshold exceeds the warning region and the critical region.

Result details display

Displays the Threshold verification result detailed information window. For details on the Threshold verification result detailed information window, see 4.3.17 Threshold verification result detailed information window.

Save file

Displays the Save file window.

For details on the Save file window, see 4.3.18 Save file window.
